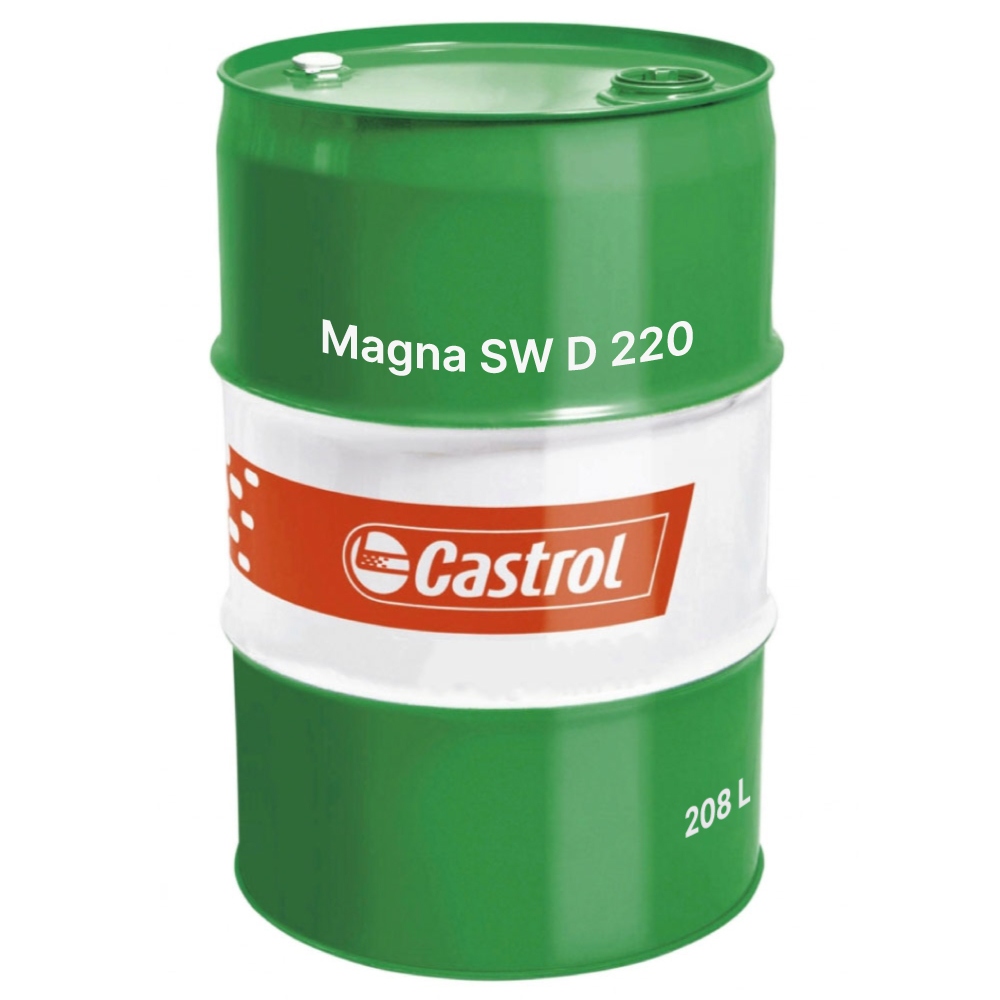

Castrol Magna SW D 220 Slideway Oil type CGLP for machine tools 208L
€ 1020.96 1,020.96 incl. VAT (857.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Castrol
Country of origin: DE/0004
Customs tariff number: 27101999
Weight per piece: 208.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Castrol Magna SW D 220 is a slideway oil (ISO VG 220, CGLP, DIN 51524-2 HLP) based on highly refined mineral oil with extreme pressure and lubricity additives, designed for the lubrication of machine tool slideways where a demulsifying lubricant is required.
- Pack size: 208 L drum
- Also available in: 20 L canister
Applications
- For horizontal and vertical slideways on machine tools
- For planers, grinders, horizontal boring machines, shapers, jig borers and milling machines
- Suitable where slideway protection and maximum coolant life are required
- Especially suitable for plastic coated guideways
Standards & approvals
- CGLP according DIN 51502
- DIN 51524-2, HLP
- Cincinnati Machine P-50
Features
- Excellent demulsification and metalworking fluid compatibility
- High load carrying capacity to reduce wear on highly loaded slideways
- Frictional characteristics that help prevent stick-slip
- Excellent adhesion and corrosion protection
- Very good filtration property
Technical data
| ISO Viscosity Grade (ISO 3448) | 220 |
| Density @ 15°C / 59°F (ASTM D4052 / ISO 12185) | 0.90 g/ml |
| Kinematic Viscosity @ 40°C / 104°F (ASTM D445 / ISO 3104) | 220 mm²/s |
| Kinematic Viscosity @ 100°C / 212°F (ASTM D445 / ISO 3104) | 18.8 mm²/s |
| Viscosity Index (ASTM D2270 / ISO 2909) | 95 |
| Pour Point (ASTM D97 / ISO 3016) | -6 °C / 21 °F |
| Flash Point - open cup method (ASTM D92 / ISO 2592) | 245 °C / 473 °F |
| Rust test - distilled water, 24 hrs (ASTM D665A / ISO 7120) | Pass |
| Rust test - synthetic seawater, 24 hrs (ASTM D665B / ISO 7120) | Pass |
| Copper corrosion, 3 hrs @100°C / 212°F (ASTM D130 / ISO 2160) | 1b |
| Four Ball Wear test - Wear Scar Diameter, 400N / 75°C / 1200 rpm / 1 hr (ASTM D2266) | 0.35 mm |
| Four Ball Weld Load test - Weld Point (ASTM D2783) | ≤ 200 kgf |
| Stick-slip ratio (Cincinnati Machine) | < 0.80 |
Product description
Castrol Magna SW D 220 is designed for use on machine tool slideways where stable glide behaviour, adhesion, wear protection, corrosion protection and demulsifying performance are required. It is formulated to help reduce stick-slip, carriage chatter and lubricant squeeze-out, while supporting coolant cleanliness and slideway protection.
Handling & storage
- Keep the container tightly sealed
- Store in a cool, dry place away from direct sunlight
- Prevent exposure to frost and avoid water ingress
- For optimum stability, indoor storage between 5°C and 45°C is preferred
BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4008177092343 | 159BA3 |
