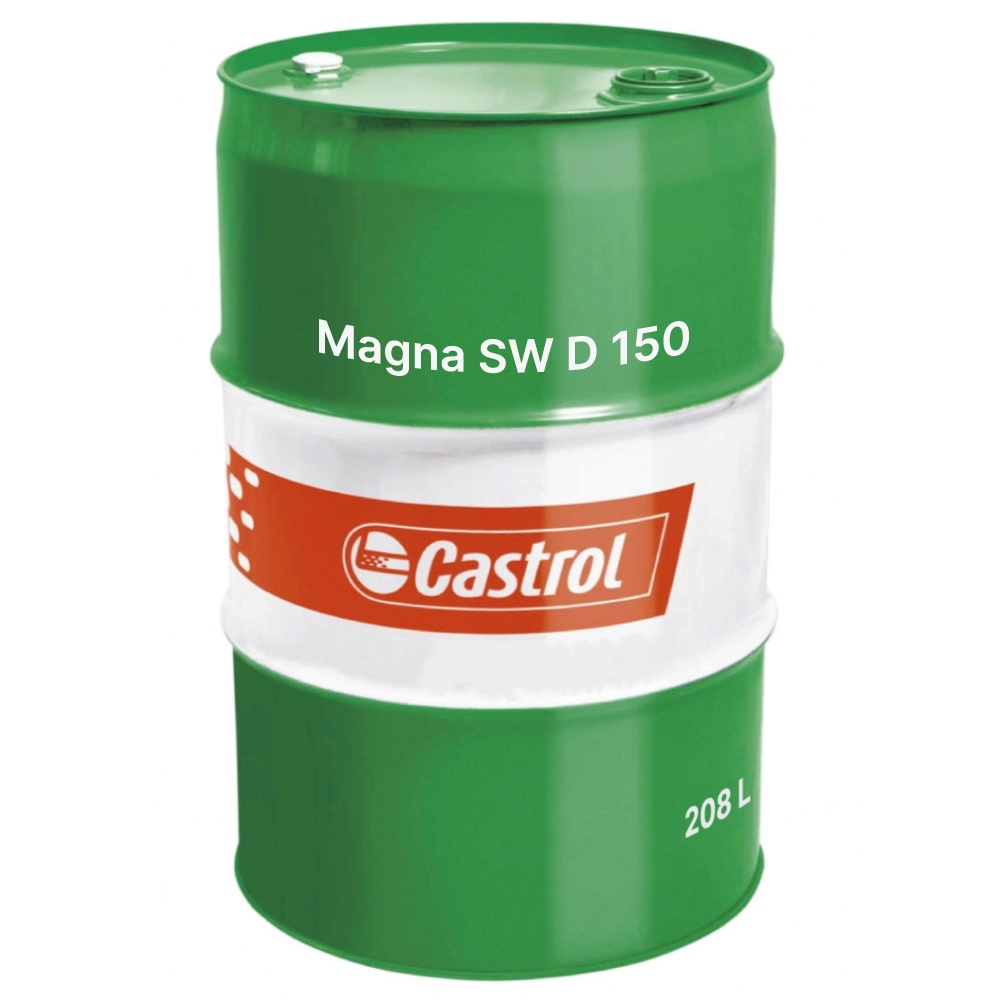

Castrol Magna SW D 150 Slideway Oil type CGLP for machine tools 208L
€ 1073.32 1,073.32 incl. VAT (901.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Castrol
Country of origin: DE/0004
Customs tariff number: 27101999
Weight per piece: 208.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Castrol Magna™ SW D 150 is a demulsifying slideway oil (ISO VG 150, CGLP, DIN 51524-2 HLP) based on highly refined mineral oil with extreme pressure and lubricity additives, designed for the lubrication of horizontal and vertical slideways on machine tools.
- Pack size: 208 L drum
- Also available in: 20 L canister
Applications
- For all horizontal and vertical slideways where a high quality demulsifying lubricant is required
- For slideway protection and to maximize coolant life
- For planers, grinders, horizontal boring machines, shapers, jig borers, and milling machines
- Especially suitable for plastic coated guideways
Standards & approvals
- Cincinnati Machine P-50
- DIN 51524-2, HLP
- CGLP according DIN 51502
Features
- Excellent demulsification and compatibility with metalworking fluids
- High load carrying capacity for wear protection on highly loaded slideways
- Very good frictional characteristics to help prevent stick-slip
- Excellent adhesion to help prevent lubricant squeeze-out
- Good corrosion protection and ageing resistance
- Very good filtration properties
Technical data
| Density @ 15°C / 59°F (ASTM D4052 / ISO 12185) | 0.89 g/ml |
| Kinematic Viscosity @ 40°C / 104°F (ASTM D445 / ISO 3104) | 150 mm²/s |
| Kinematic Viscosity @ 100°C / 212°F (ASTM D445 / ISO 3104) | 14.9 mm²/s |
| Viscosity Index (ASTM D2270 / ISO 2909) | 91 |
| Pour Point (ASTM D97 / ISO 3016) | -12 °C |
| Flash Point - open cup method (ASTM D92 / ISO 2592) | 238 °C |
| Rust test - distilled water (24 hrs) (ASTM D665A / ISO 7120) | Pass |
| Rust test - synthetic seawater (24 hrs) (ASTM D665B / ISO 7120) | Pass |
| Copper corrosion (3 hrs @ 100°C / 212°F) (ASTM D130 / ISO 2160) | 1b |
| Four Ball Wear test - Wear Scar Diameter (400N / 75°C / 1200 rpm / 1 hr) (ASTM D2266) | 0.35 mm |
| Four Ball Weld Load test - Weld Point (ASTM D2783) | 200 kgf |
| Stick-slip ratio (Cincinnati Machine) | < 0.80 |
Product description
Castrol Magna™ SW D 150 is formulated to provide constant glide behaviour, strong adhesion, wear protection, corrosion protection and ageing resistance. It helps reduce machine tool carriage chatter and is especially suitable for applications where clean coolant conditions and reliable slideway lubrication are required.
Handling & storage
- Keep the container or drum tightly sealed.
- Store in a cool, dry place away from direct sunlight.
- Prevent exposure to frost.
- Avoid water ingress.
- For optimum product stability, store indoors between 5°C and 45°C.
BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4008177092312 | 159B9D |
