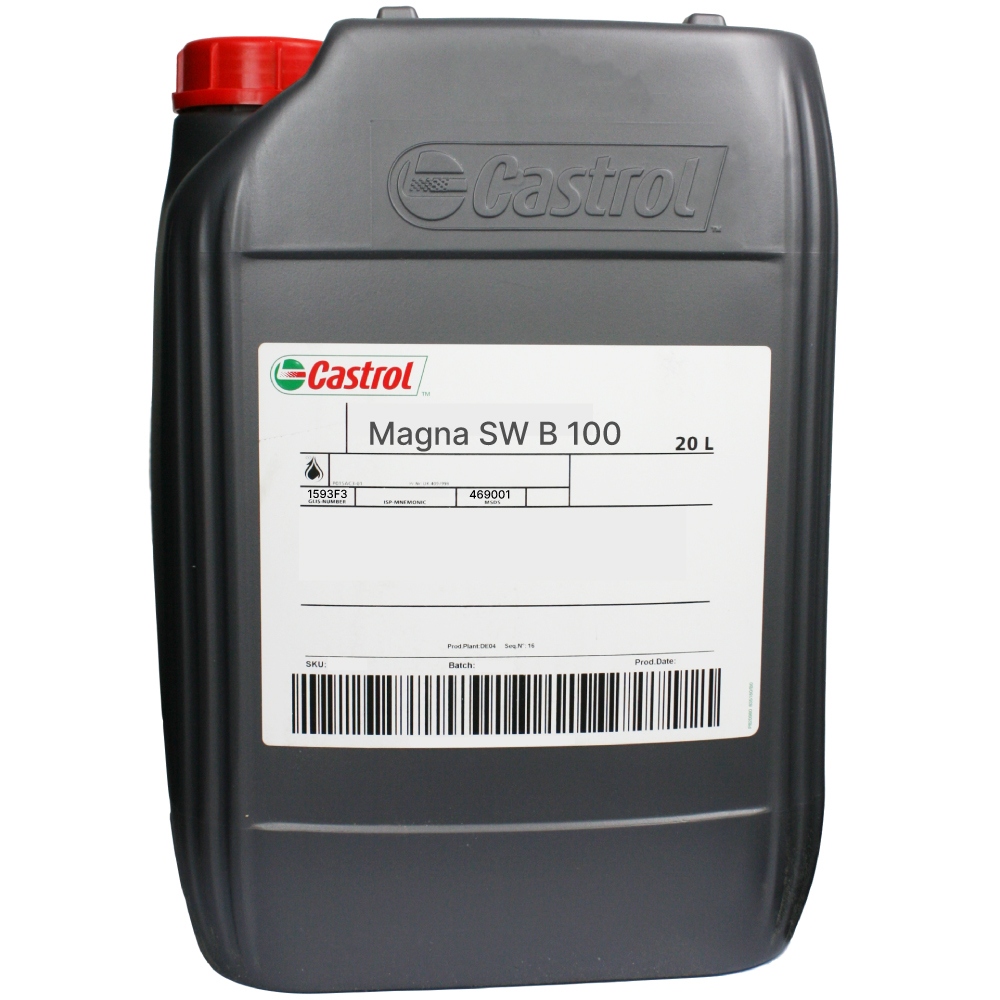

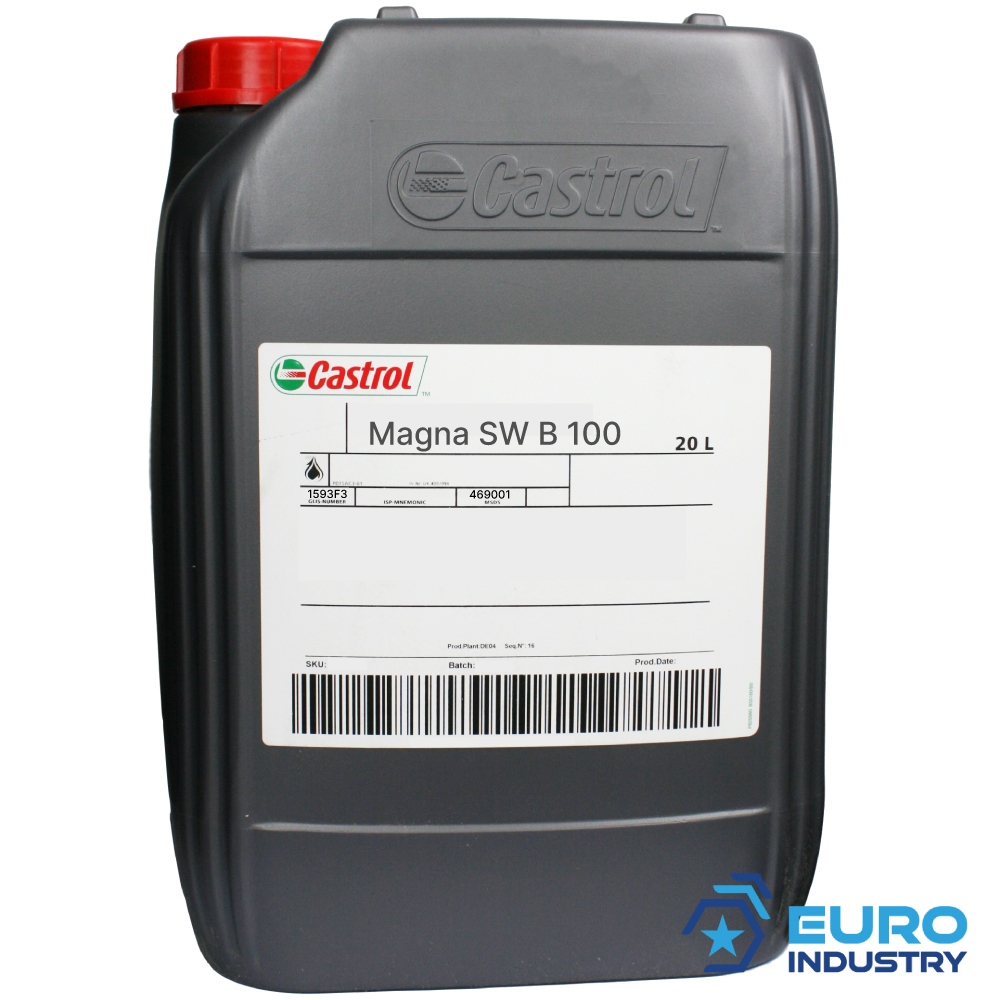

Castrol Magna SW B 100 Slideway Oil CGLP for machine tools 20L
€ 124.3 124.30 incl. VAT (104.45 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Castrol
Country of origin: DE/0004
Customs tariff number: 27101999
Weight per piece: 20.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Castrol Magna SW B 100 (previously called Magnaglide™ B grades) is a slideway oil (CGLP, ISO VG 100) for machine tools, designed for the lubrication of slideways and related machine components where controlled frictional behaviour, high adhesivity and a strong lubricating film are required.
- Pack size: 20 L canister
- Also available in: 208 L drum
Applications
- Lubrication of slideways on machine tools
- Suitable for high loads and low sliding speeds
- Suitable for vertical and horizontal guideways
- Can be used for lead screw and nut systems
- Can be used for gears of feed mechanisms
- Can be used for oil lubricated milling heads
Standards & approvals
- DIN 51502: CGLP
Features
- Controlled frictional characteristics in guideway sliding conditions
- High adhesivity and high film strength
- Accurate sliding movement supporting improved work piece surface finish
- Good wash off characteristics
- Good compatibility with known construction materials of slideways
- Conforms to Schmidt-Coburg friction and demulsibility requirements
Technical data
| Manufacturer no. | 1593F3 |
| Appearance (Visual) | Clear and bright |
| Density at 15°C (ISO 12185 / ASTM D4052) | 880 kg/m³ |
| Kinematic viscosity at 40°C (ISO 3104 / ASTM D445) | 98 mm²/s |
| Kinematic viscosity at 100°C (ISO 3104 / ASTM D445) | 11.1 mm²/s |
| Viscosity index (ISO 2909 / ASTM D2270) | 98 |
| Flash point, open cup (ISO 2592 / ASTM D92) | 236 °C |
| Pour point (ISO 3016 / ASTM D97) | -30 °C |
| Copper corrosion, 3 h at 100°C (ISO 2160 / ASTM D130) | 1b |
| Rust test, distilled water, 24 h (ISO 7120 / ASTM D665A) | Pass |
| FZG Gear Scuffing test A/8.3/90 (ISO 14635-1) | 12 |
Product description
The product is based on highly refined mineral oils and additives to provide controlled frictional characteristics in guideway sliding conditions. It is recommended for high performance lubrication of machine-tool slideways and offers good wash off behaviour.
Handling & storage
- Store in a dry, cool and well ventilated place.
- Protect from heat and direct sunlight.
- Keep containers tightly closed and sealed until use.
- Opened containers should be carefully reclosed and kept upright to prevent leakage.
- Store only in containers intended for this product.
- Do not store in unlabeled containers.
BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4008177091995 | 1593F3 |
