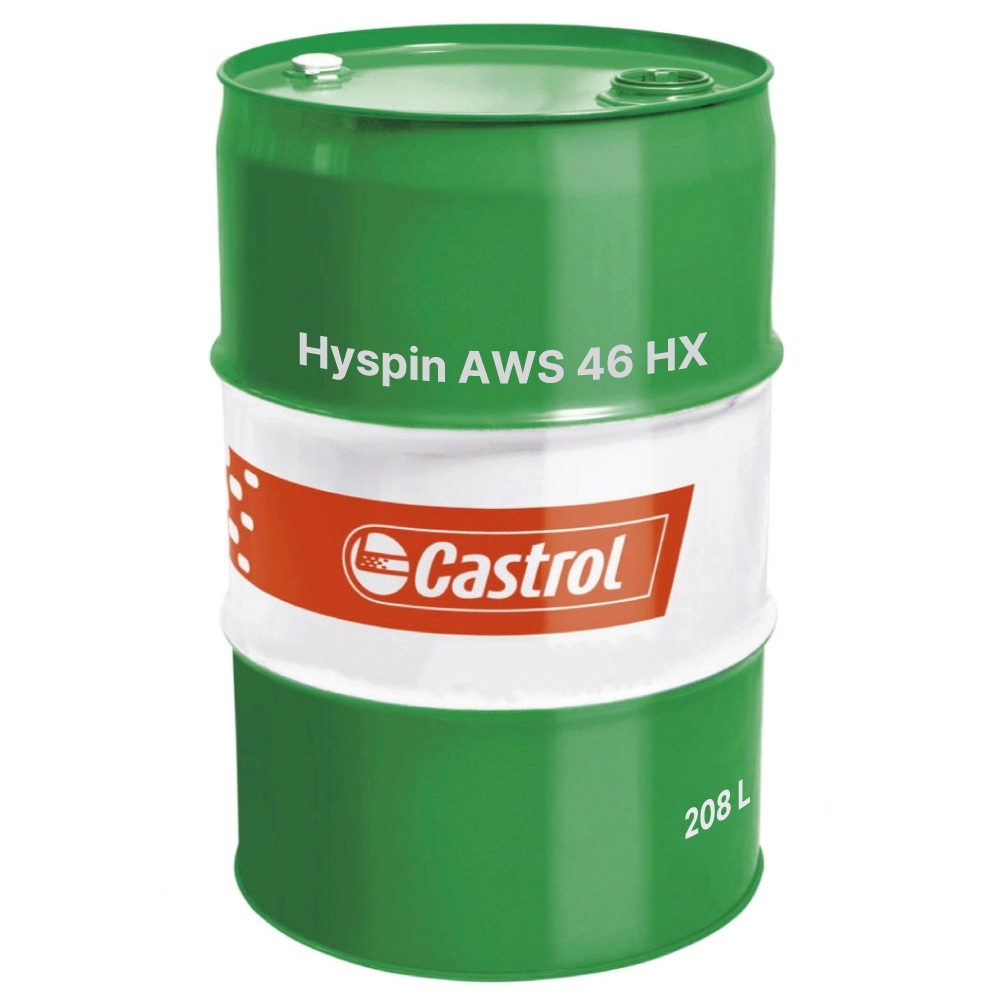

Castrol Hyspin AWS 46 HX Anti-wear hydraulic oil HLP, ISO VG 46, 208L

Castrol Hyspin AWS 46 HX Anti-wear hydraulic oil HLP, ISO VG 46, 208L

€ 916.24 916.24 incl. VAT (769.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Castrol

Country of origin: BE/0017

Customs tariff number: 27101983

Weight per piece: 208.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

five - five = ?

( Examples: two + three = 5, three - five = -2 )

Castrol Hyspin AWS 46 HX is an anti-wear hydraulic oil (ISO VG 46) based on highly refined mineral oil enhanced with a stabilised zinc additive system.

Pack size: 208 L drum
Also available in: 20 L canister

Applications

Industrial hydraulic systems requiring anti-wear protection
Systems such as lightly loaded gears, variable speed units and bearings
Corrosion protection for ferrous and yellow metal components found within a hydraulic system
Compatible with commonly used nitrile, silicone and fluropolymer seal materials

Specifications & Approvals

DIN 51502 classification: HLP
ISO 6743/4: Hydraulic Oils Type HM
Approved by Bosch Rexroth Fluid Rating List RDE 90245
Approved by Parker Hannifin (Denison): HF0, HF1 & HF2
Approved by Eaton: E-FDGN-TB002-E
Approved by Eaton: Brochure 03-401-2010
Meets DIN 51524 Part 2
Meets Fives Cincinnati P68, P69 & P70
Meets ASTM D6158 HM (2005)
Meets ISO 11158 HM
Meets US Steel 126

Characteristics

Good thermal and oxidative stability helps reduce deposit formation, resulting in a cleaner system and potentially extending machinery operating life
Excellent anti-wear performance increases wear protection and can help reduce downtime caused by unscheduled maintenance
Good filterability characteristics, including in the presence of water, supports increased filter life and reduced maintenance
Excellent water separation and hydrolytic stability increases equipment reliability, helping to prolong lubricant life and reduce downtime

Technical specifications

Appearance (visual)	Clear & Bright
Density @ 15°C, kg/m³ (ISO 12185 / ASTM D4052)	876
Kinematic Viscosity @ 40°C, mm²/s (ISO 3104 / ASTM D445)	46
Kinematic Viscosity @ 100°C, mm²/s (ISO 3104 / ASTM D445)	7.0
Viscosity Index (ISO 2909 / ASTM D2270)	113
Pour Point, °C (ISO 3016 / ASTM D97)	-36
Foam Sequence I - tendency/stability, ml/ml (ISO 6247 / ASTM D892)	10/0
Flash Point - open cup, °C (ISO 2592 / ASTM D92)	238
Flash Point - closed cup, °C (ISO 2719 / ASTM D93)	220
Water Separation @ 54°C (40/37/3), minutes (ISO 6614 / ASTM D1401)	15
Air Release @ 50°C, minutes (ISO 9120 / ASTM D3427)	8
Rust test - distilled water (24 hrs) (ISO 7120 / ASTM D665A)	Pass
Rust test - synthetic seawater (24 hrs) (ISO 7120 / ASTM D665B)	Pass
FZG Gear Scuffing test - A/8.3/90, Failure Load Stage (ISO 14635-1)	12

Product description

Hyspin AWS...HX has been specially formulated to provide good anti-wear and thermal stability performance using proven additive technology. The careful blend of additives with a high quality base stock ensures excellent hydrolytic and oxidative stability while exhibiting a minimal tendency to produce sludge and deposits. In addition, Hyspin AWS provides corrosion protection to ferrous and yellow metal components found within a hydraulic system.

Information on product safety (Manufacturer, Contact)

BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com

castrol-hyspin-aws-hx-tds-datasheet.pdf (51.27 KB)
