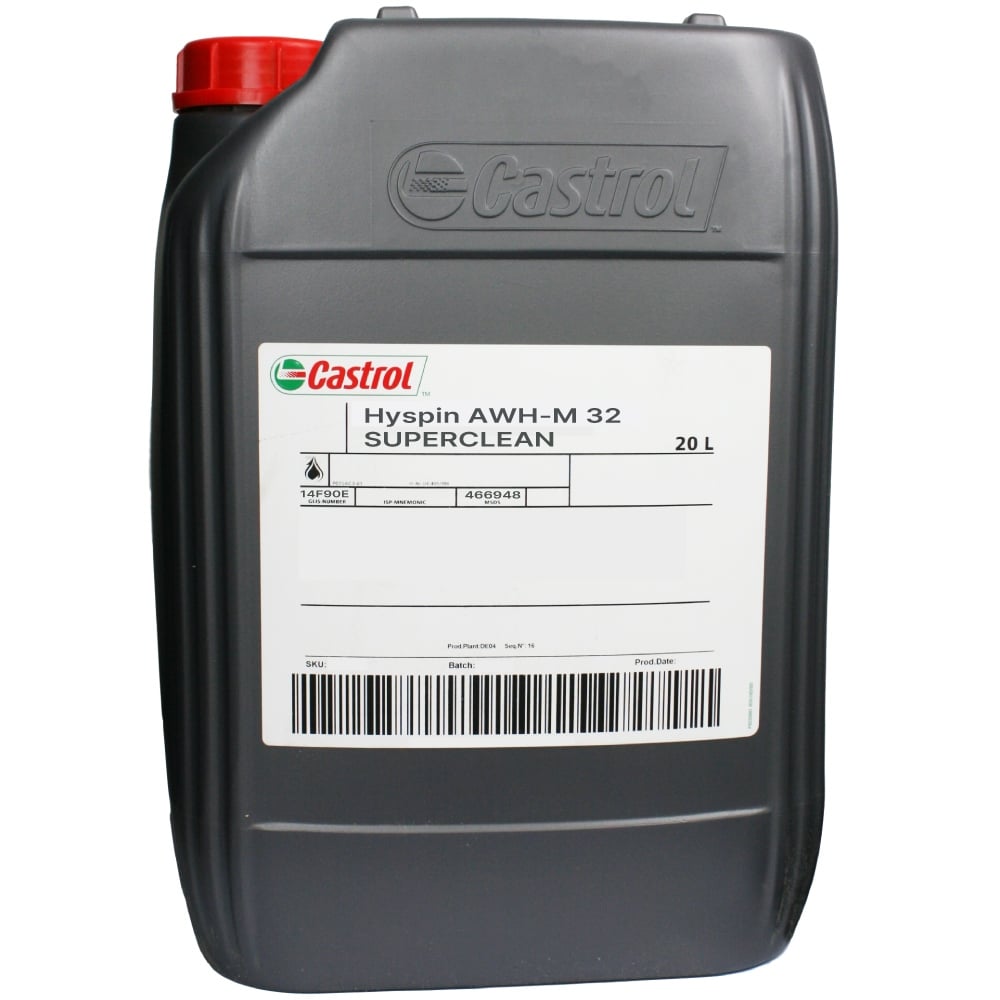

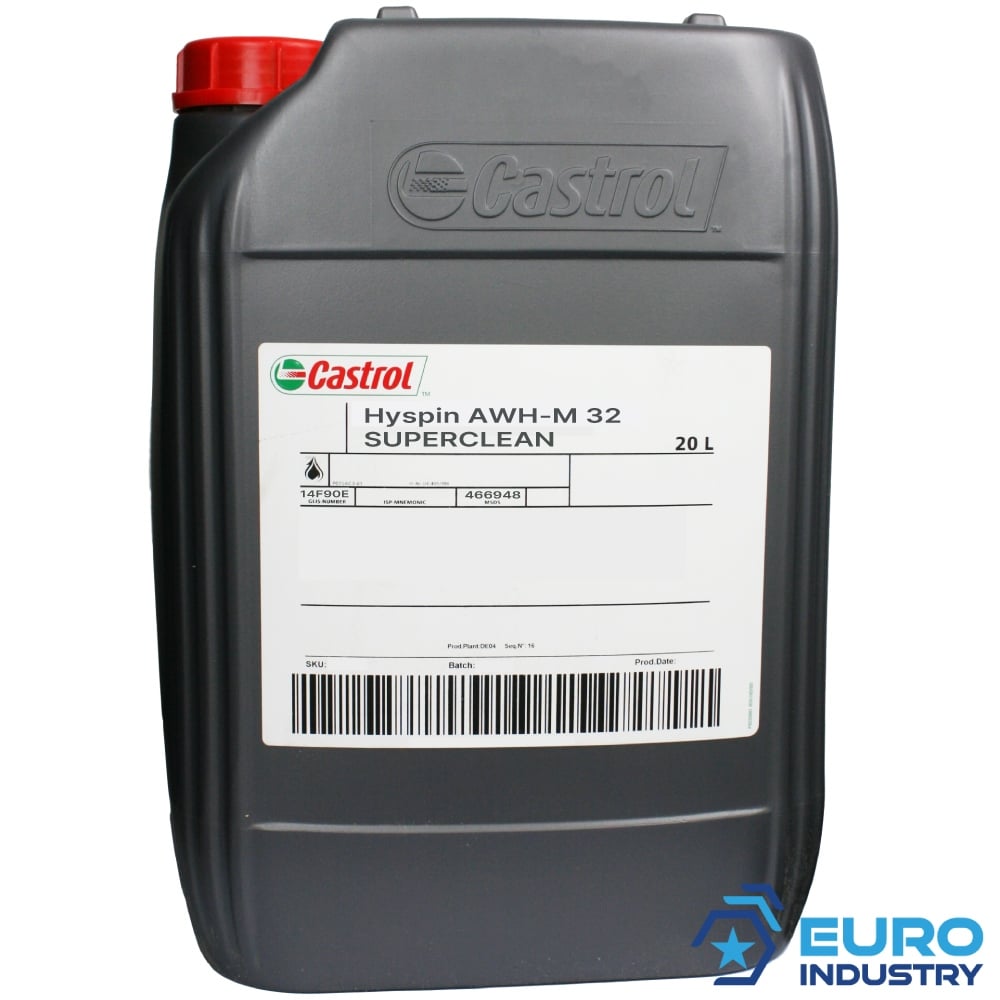

Castrol Hyspin AWH-M 32 SUPERCLEAN Hydraulic oil HVLP VG 32, 20L

Castrol Hyspin AWH-M 32 SUPERCLEAN Hydraulic oil HVLP VG 32, 20L

pics/Castrol/eis-copyright/Canister/Hyspin AWH-M SUPERCLEAN/castrol-hyspin-awh-m-32-superclean-20-l-01.jpg

€ 143.93 143.93 incl. VAT (120.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Castrol

Country of origin: BE/0017

Customs tariff number: 27101983

Weight per piece: 20.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

three + three = ?

( Examples: two + three = 5, three - five = -2 )

Castrol Hyspin™ AWH-M 32 (Superclean) is a shear-stable high viscosity index anti-wear hydraulic oil (ISO VG 32) based on stabilised zinc additive technology and filtered to ISO class 15/13/10.

Pack size: 20L canister

Applications

Outdoor equipment operating across wide temperature ranges, including cold start-up and high temperature continuous running (e.g. off-highway and marine applications)
Indoor manufacturing equipment incorporating control systems requiring minimal viscosity change with temperature (e.g. precision machine tools)
Suitable for use in very cold environments due to a very low pour point
Fully compatible with elastomer materials commonly used for static and dynamic seals, such as nitrile, silicone and fluorinated (e.g. Viton) polymers

Specifications & Approvals

DIN 51502 classification: HVLP
ISO 6743/4: Hydraulic Oils Type HV
DIN 51524 Part 3
Cincinnati Lamb (Milacron) P 68
Denison (Parker Hannafin) HF-0
US Steel 126 & 127
Eaton (formerly Vickers) I-286-S & M-2950-S
Bosch Rexroth RE90220

Characteristics

High viscosity index and low pour point enable use over a wide temperature range, with good shear stability to avoid excessive loss in viscosity due to mechanical shearing
Excellent anti-wear performance provides extended wear protection for hydraulic pumps, helping reduce downtime due to unscheduled maintenance and replacement part costs
Excellent water separation and hydrolytic stability support prolonged lubricant life and increased equipment reliability
Good filterability helps maintain a cleaner system with less frequent filter changes
Industrial Superclean helps increase the service life of hydraulic systems

Technical specifications

ISO viscosity grade	32
Density @ 15°C, kg/m³ (ISO 12185 / ASTM D4052)	880
Base oil viscosity @ 40°C, mm²/s (ISO 3104 / ASTM D445)	32
Base oil viscosity @ 100°C, mm²/s (ISO 3104 / ASTM D445)	6.41
Viscosity index (ISO 2909 / ASTM D2270)	>150
Pour point, °C (ISO 3016 / ASTM D97)	-45
Flash point - open cup method, °C (ISO 2592 / ASTM D92)	210
Flash point - closed cup method, °C (ISO 2719 / ASTM D93)	200
Foam sequence I - tendency/stability, ml/ml (ISO 6247 / ASTM D892)	20/0
Water separation @ 54°C (40/37/3), min (ISO 6614 / ASTM D1401)	10
Air release @ 50°C, min (ISO 9120 / ASTM D3427)	4
FZG gear scuffing test A/8.3/90, failure load stage (ISO 14635-1)	11
Rust test - distilled water (24 h) (ISO 7120 / ASTM D665A)	Pass
Rust test - synthetic seawater (24 h) (ISO 7120 / ASTM D665B)	Pass
Particle count (ISO 4406)	16/14/11

Product description

Castrol Hyspin™ AWH-M 32 (Superclean) contains a shear-stable additive system to help maintain viscosity characteristics over a wide temperature range, even during prolonged use. It exhibits excellent corrosion and wear protection, outstanding thermal and oxidative stability, and excellent hydrolytic stability while separating water contamination rapidly upon standing.

Information on product safety (Manufacturer, Contact)

BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com

castrol-hyspin-awh-m-32-superclean-tds-datasheet.pdf (44.00 KB)
