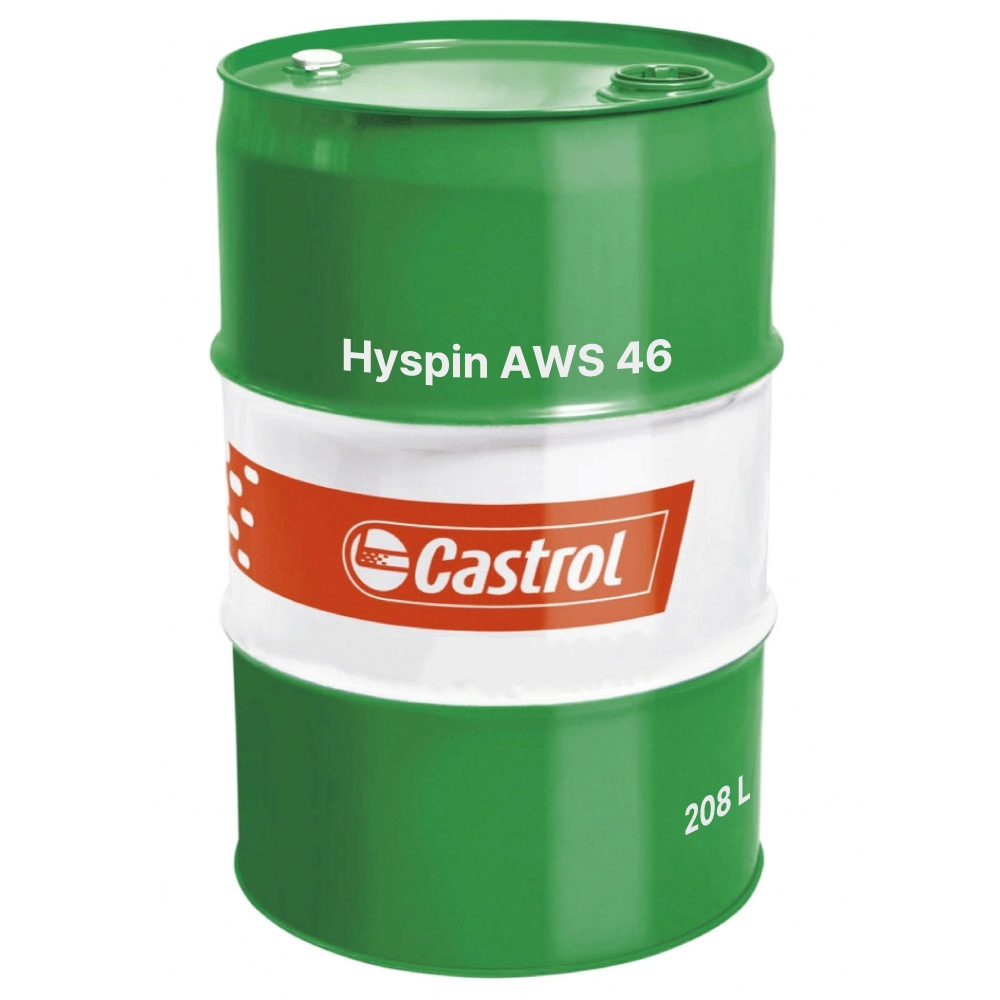

Castrol Hyspin AWS 46 Anti-wear Hydraulic Oil HLP - 208L

Castrol Hyspin AWS 46 High-performance hydraulic oils (ISO VG 46) are based upon highly refined mineral oil enhanced with a stabilized zinc additive system. Ideal for hydraulic systems with increased wear protection requirements.

• Size: 208 l barrel
• Also available in: 20 l canister

Application

• For use in industrial hydraulic systems which require antiwear protection
• Lightly loaded gears, variable speed units and bearings
• Compatible with the most commonly used nitrile, silicone and fluropolymer seal materials.

Specifications / Approvals

• DIN 51524-2 - Requirements for HLP hydraulic oils
• ISO 6743/4 Requirements for HM hydraulic oils

Advantages

• Good thermal and oxidative stability. Oxidative stability reduces deposit formation, resulting in a cleaner system. This can extend the machinery’s operating life.
• Excellent anti-wear performance increases wear protection, which can help reduce downtime caused by unscheduled maintenance.
• Good filterability characteristics, including in the presence of water, enables cost savings to be made from increased filter life and reduced maintenance.
• Excellent water separation and hydrolytic stability, measured by industry standard testing. This increases equipment reliability, helping to prolong the lubricant’s life and reduce downtime.

Technical specifications

Description Hyspin AWS range

Hyspin AWS has been specially formulated to provide good anti-wear and thermal stability performance using proven additive technology. The careful blend of additives with a high quality base stock ensures that Hyspin AWS has excellent hydrolytic and oxidative stability while exhibiting a minimal tendency to produce sludge and deposits. In addition, Hyspin AWS provides corrosion protection to ferrous and yellow metal components found within a hydraulic system.

Hyspin AWS (for appropriate viscosity grade) is approved by:

• Parker Hannifin (Denison) HF0, HF1 & HF2
• Eaton E-FDGN-TB002-E

Hyspin AWS grades meet the requirements (for appropriate viscosity grade) of:

• DIN 51524 Part 2
• Fives Cincinnati P68, P69 & P70
• ASTM D6158 HM
• ISO 11158 HM
• US Steel 126
• GB 11118.1 L-HM (General and High Pressure)
