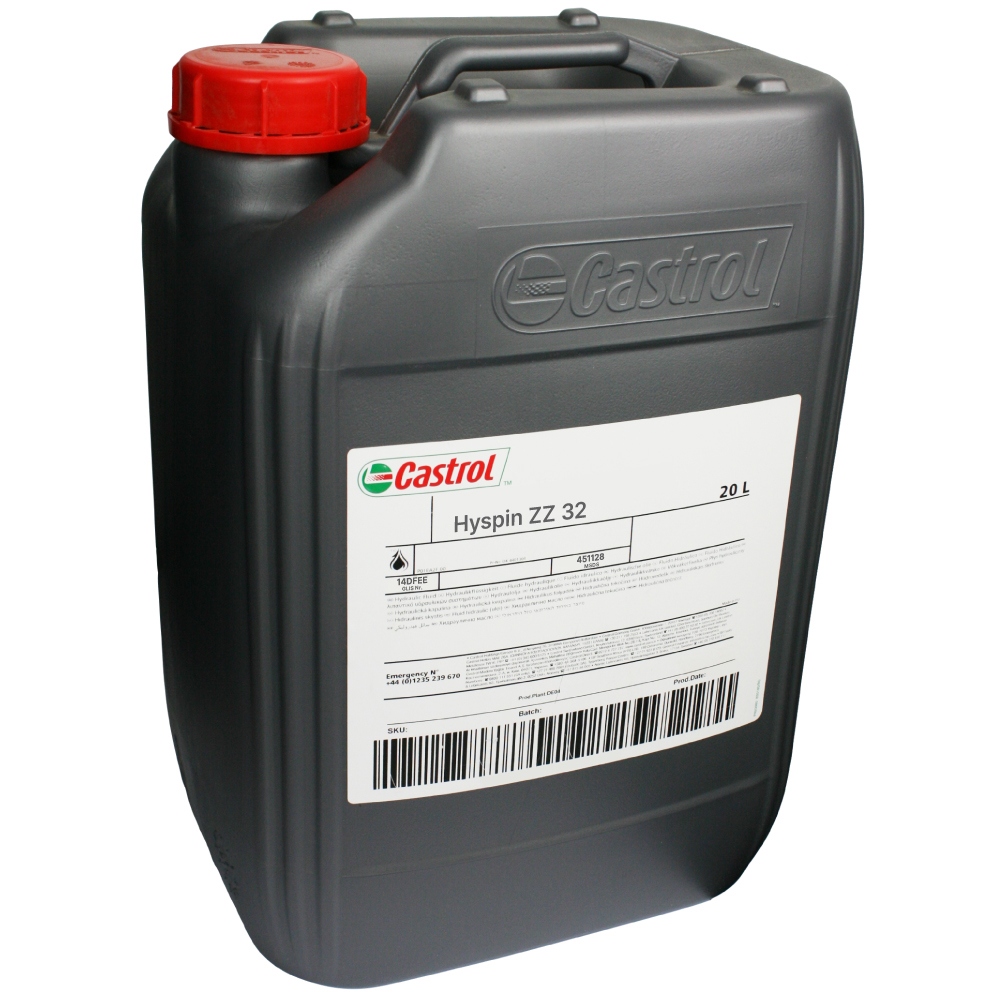

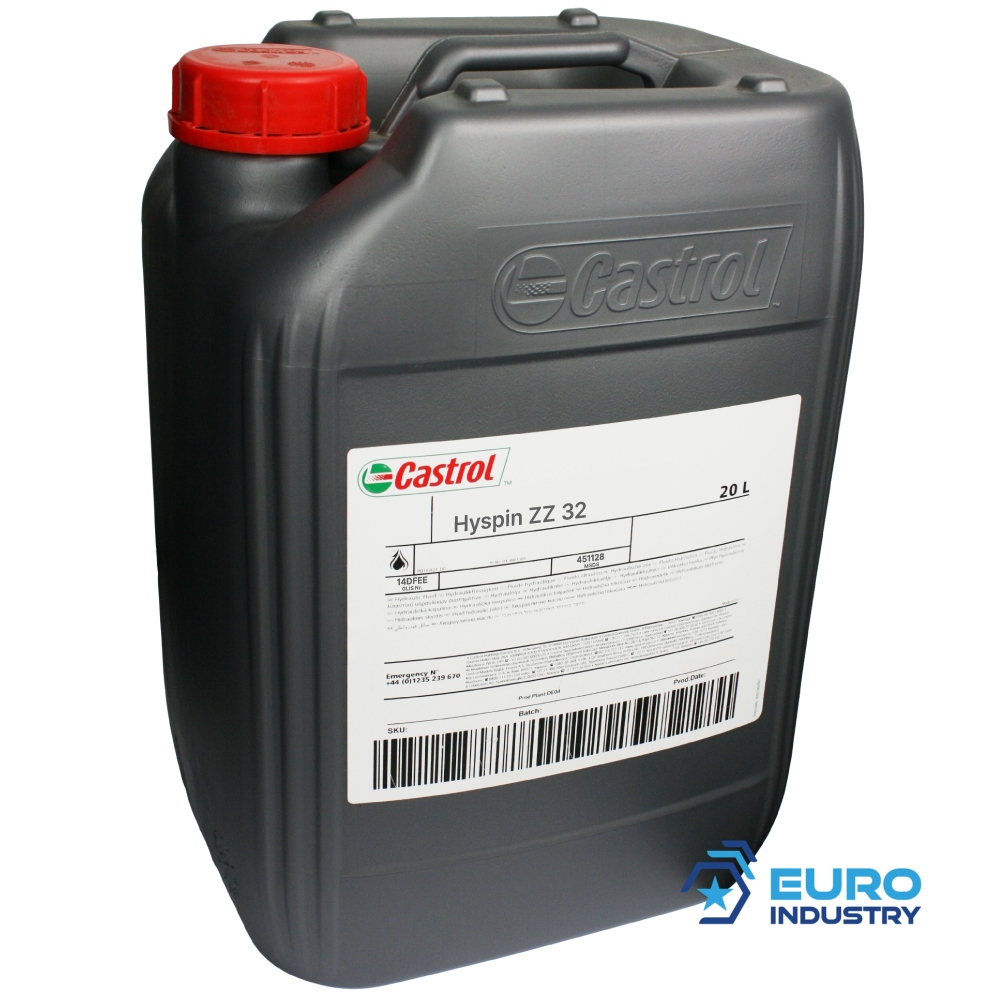

Castrol Hyspin ZZ 32 Anti-wear hydraulic oil HLP 20L canister

Castrol Hyspin ZZ 32 Anti-wear hydraulic oil HLP 20L canister

€ 101.09 101.09 incl. VAT (84.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Castrol

Country of origin: DE/0004

Customs tariff number: 27101983

Weight per piece: 18.4 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

one - one = ?

( Examples: two + three = 5, three - five = -2 )

Zinc-free anti-wear hydraulic oil HLP - ISO VG 32

Castrol Hyspin ZZ 32 hydraulic oils are formulated without zinc containing additives, based on a carefully selected additive system, designed to meet and exceed the most exacting performance standards.

Application

The Hyspin ZZ range are formulated for applications requiring anti-wear and superior oxidation performance and are particularly suitable for hydraulic systems using vane and piston pumps where elevated operating temperatures are encountered. They are formulated for use in severely stressed systems in which high levels of anti-wear performance and/or ultra fine filtration are required. They have been proven to be resistant to the effects of ‘dieseling’ in highly stressed systems such as plastic injection moulding and fatigue testing equipment where the application leads to rapid breakdown of more conventional products.

The range is fully compatible with elastomer materials commonly used for static and dynamic seals, such as nitrile, silicone and fluorinated (e.g. Viton) polymers

Specifications / Approvals

DIN 51524-2 - Requirements for HLP hydraulic oils
ISO 6743/4 Requirements for HM hydraulic oils

Hyspin AWS (for appropriate viscosity grade) is approved by:

Parker Hannifin (Denison) HF0, HF1 & HF2
Eaton E-FDGN-TB002-E

Hyspin AWS grades meet the requirements (for appropriate viscosity grade) of:

DIN 51524 Part 2
Fives Cincinnati P68, P69 & P70
ASTM D6158 HM
ISO 11158 HM
US Steel 126
GB 11118.1 L-HM (General and High Pressure)

Advantages

Good thermal and oxidative stability provides reliable performance and extended oil life in severe applications. Minimal deposit formation gives a cleaner system and reduced frequency of filter changes
Excellent anti-wear performance provides extended wear protection for hydraulic pumps. Reduced downtime due to unscheduled maintenance and savings from replacement part costs
Excellent filterability characteristic (including in the presence of water) enables cost savings to be made from increased filter life and reduced maintenance
Excellent water separation and hydrolytic stability means reduced down time through prolonged lubricant life and increased equipment reliability

Technical specifications

ISO Viscosity Grade: 32
Density @ 15°C / 59°F kg/m³: 880
Kinematic Viscosity @ 40°C / 104°F mm²/s: 32
Kinematic Viscosity @ 100°C / 212°F mm²/s: 5.3
Pour Point °C/°F: -27/-17
Flash Point - open cup method °C/°F: 210/ 410
Flash Point - closed cup method °C/°F: 200/ 392
Size: 20 Liter
Packaging type: canister
Also available in: 208l barrel
GLIS number: 14DFEE
MSDS number: 451128
