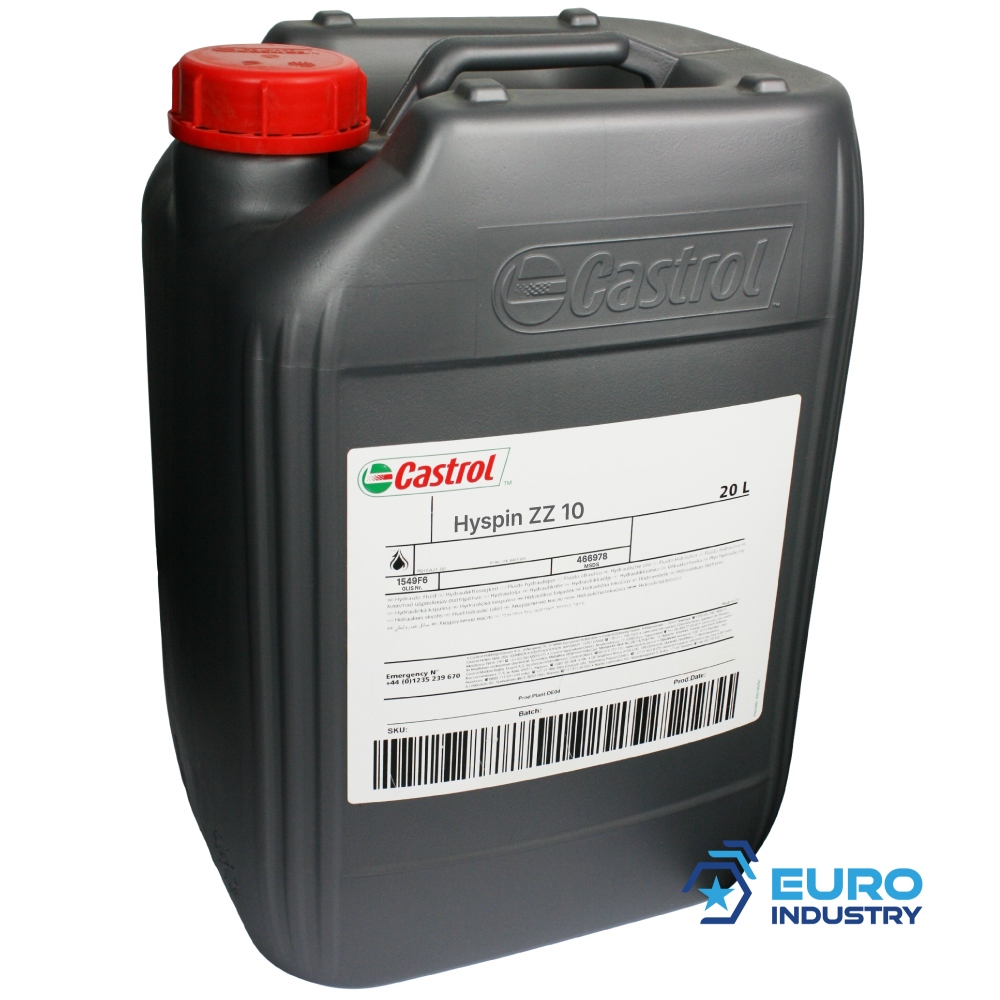

Castrol Hyspin ZZ 10 Anti-wear hydraulic oil HLP 20L canister

Zinc-free anti-wear hydraulic oil HLP - ISO VG 10

Castrol Hyspin ZZ 10 hydraulic oils are formulated without zinc containing additives, based on a carefully selected additive system, designed to meet and exceed the most exacting performance standards.

Application

The Hyspin ZZ range are formulated for applications requiring anti-wear and superior oxidation performance and are particularly suitable for hydraulic systems using vane and piston pumps where elevated operating temperatures are encountered. They are formulated for use in severely stressed systems in which high levels of anti-wear performance and/or ultra fine filtration are required. They have been proven to be resistant to the effects of ‘dieseling’ in highly stressed systems such as plastic injection moulding and fatigue testing equipment where the application leads to rapid breakdown of more conventional products.
The range is fully compatible with elastomer materials commonly used for static and dynamic seals, such as nitrile, silicone and fluorinated (e.g. Viton) polymers

Specifications / Approvals

• DIN 51524-2 - Requirements for HLP hydraulic oils
• ISO 6743/4 Requirements for HM hydraulic oils

Hyspin AWS (for appropriate viscosity grade) is approved by:

• Parker Hannifin (Denison) HF0, HF1 & HF2
• Eaton E-FDGN-TB002-E

Hyspin AWS grades meet the requirements (for appropriate viscosity grade) of:

• DIN 51524 Part 2
• Fives Cincinnati P68, P69 & P70
• ASTM D6158 HM
• ISO 11158 HM
• US Steel 126
• GB 11118.1 L-HM (General and High Pressure)

Advantages

• Good thermal and oxidative stability provides reliable performance and extended oil life in severe applications. Minimal deposit formation gives a cleaner system and reduced frequency of filter changes
• Excellent anti-wear performance provides extended wear protection for hydraulic pumps. Reduced downtime due to unscheduled maintenance and savings from replacement part costs
• Excellent filterability characteristic (including in the presence of water) enables cost savings to be made from increased filter life and reduced maintenance
• Excellent water separation and hydrolytic stability means reduced down time through prolonged lubricant life and increased equipment reliability

Technical specifications

• ISO Viscosity Grade: 10
• Density @ 15°C / 59°F kg/m³: 860
• Kinematic Viscosity @ 40°C / 104°F mm²/s: 10
• Kinematic Viscosity @ 100°C / 212°F mm²/s: 2.7
• Pour Point °C/°F: -33/-27
• Flash Point - open cup method °C/°F: 170/ 338
• Flash Point - closed cup method °C/°F: 145/ 293
• Size: 20 Liter
• Packaging type: canister
• Also available in: 208l barrel
• GLIS number: 1549F6
• MSDS number: 466978
