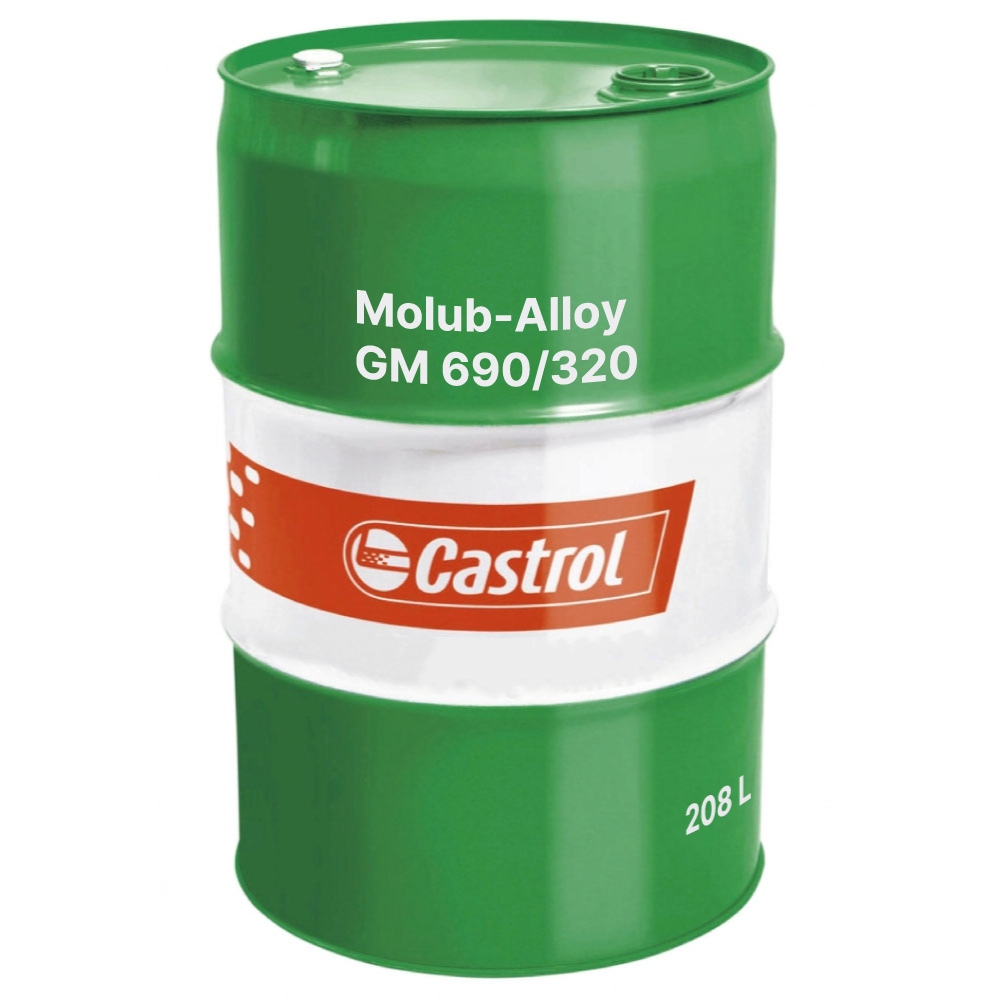

Castrol Molub-Alloy GM 690/320 Gear Oil with lubricating solids 208L
price on request
Availability: on request
Packaging unit: 1 piece
Manufacturer: Castrol
Country of origin: DE/0004
Customs tariff number: 27101987
Weight per piece: 208.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Castrol Molub-Alloy GM 690/320 is a gear oil with lubricating solids (ISO VG 320, AGMA 6 EP) developed for the lubrication of enclosed gears in heavy duty and shock loading applications.
- Pack size: 208 L drum
- Also available in: 20 L canister
Applications
- For spur, helical, herringbone, straight bevel and spiral bevel gears
- Especially suitable for heavy duty and shock loading where EP characteristics are required
Characteristics
- Reduced friction, especially under boundary conditions
- Very good shock load behaviour
- Excellent start/stop behaviour
- Protective lubricating solids can increase the working life of parts and lubricant
- Lubricating solids can reduce wear, pressure and operating temperatures
- Improved energy efficiency during cold start
- Very good sealing behaviour
- Extended lubricant service life
- Reduced labour and downtime through improved reliability and longer component life
Technical specification
| Manufacturer no. | 156DEA |
| Base | Mineral oil |
| Lubricating solids | Molub-Alloy lubricating solids |
| ISO viscosity grade | 320 |
| SAE viscosity grade | n. a. |
| AGMA lubricant number | 6 EP |
| Density at 15 C | 900 kg/m3 |
| Kinematic viscosity at 40 C | 320 mm2/s |
| Kinematic viscosity at 100 C | 25 mm2/s |
| Viscosity index | 100 |
| Flash point | 230 C |
| Pour point | -15 C |
| Rust test steel A | 0 |
| Rust test steel B | Passed |
| FZG gear scuffing test A/8.3/90 | >12 |
| Four ball wear scar diameter DIN 51350-3B | <0.30 mm |
| Four ball load wear index | 60 kgf |
| Four ball weld point | 400 kgf |
| Four ball weld load | 4600 N |
| Four ball wear scar diameter DIN 51350-3B | <0.30 mm |
Product description
Castrol Molub-Alloy GM gear oils were developed for the lubrication of enclosed gears. They are manufactured from the highest quality components that have been carefully selected for their compatibility with Molub-Alloy GM lubricating solids. Load carrying capabilities are derived from the formulation and the proprietary blend of lubricating solids. Rust and oxidation inhibiting characteristics are maximized to afford effective rust protection and long service life.
Additional information
Do not use with diatomaceous earth or other adsorbent, surface-active filter media. Previously called Castrol Molub-Alloy Gear oils.
Castrol Molub-Alloy GM690/320, Castrol Molub-Alloy GM 690-320, Castrol MolubAlloy GM 690/320
BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 156DEA |
