3M Versaflo TR-819E IS starter kit – Ex-rated turbo respirator
€ 2130.04 2,130.04 incl. VAT (1,789.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: 3M
Country of origin: PL/0060
Customs tariff number: 90200090
Weight per piece: 5.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
3M™ Versaflo™ TR-819E IS is an intrinsically safe powered air starter kit built around the TR-802E blower unit. It is designed for work in potentially explosive atmospheres (gas and dust, Zone 0/20) and comes complete with A2P filter, battery, charger, belt and breathing hose; the matching Versaflo™ headtop is selected separately depending on the application.
Features
- Intrinsically safe system for Ex-zones: TR-802E turbo unit with ATEX approval for gas group IIB and dust group IIIC – suitable for Zone 0/20 (with approved headtop).
- Three airflow settings: 185 / 205 / 225 l min⁻¹ with electronic flow control and automatic low-flow alarm.
- Integrated A2P filter: combination filter TR-6310E for organic vapours (boiling point > 65 °C) as well as solid and liquid particles.
- Battery & airflow monitoring: visual and audible alarm in case of low battery charge or insufficient airflow.
- High protection level: system classification up to EN 12941 TH3 / EN 12942 TM3 – nominal protection factor up to 500 (depending on headtop).
- Rugged, decontaminable housing: protection rating IP54 in use (dust & splash water), IP67 with cleaning plugs (short-term immersion).
- Easy-clean belt: TR-627 belt with smooth surfaces – ideal for shift work and decontamination.
- Comfort breathing hose: self-adjusting BT-30 breathing hose follows body movement and reduces pull on the headtop.
Technical data
| 3M product no. | TR-819E IS |
| 3M ID | 7100169180 |
| System type | Versaflo™ powered air system, intrinsically safe (TR-802E) |
| ATEX marking | Ex ia IIB T4 Ga / Ex ia IIIC 135 °C Da (gas & dust, Zone 0/20) |
| Airflow | 3 settings: 185 / 205 / 225 l min-1 (with approved headtop) |
| Filter | TR-6310E A2P – organic gases & vapours > 65 °C + particles |
| Battery | TR-830 Li-Ion IS (incl. mounting tool TR-838) |
| Runtime (typical) | approx. 5.5–7.5 h (standard flow, depending on headtop & filter) |
| Charging time | < 3.5 h with TR-641E single-station charger |
| Protection classes | EN 12941 TH2/TH3 • EN 12942 TM2/TM3 (depending on headtop/mask) |
| Nominal protection factor | NPF 50 (TH2) / 500 (TH3) |
| IP rating | IP54 (with filter cover) / IP67 (with cleaning plugs) |
| Operating temperature | -5 °C to +55 °C |
| Storage conditions | -30 °C to +50 °C, < 90 % RH |
| Compatible headtops | Versaflo™ M- and S-series, FF-600 full face masks (with appropriate adapters) |

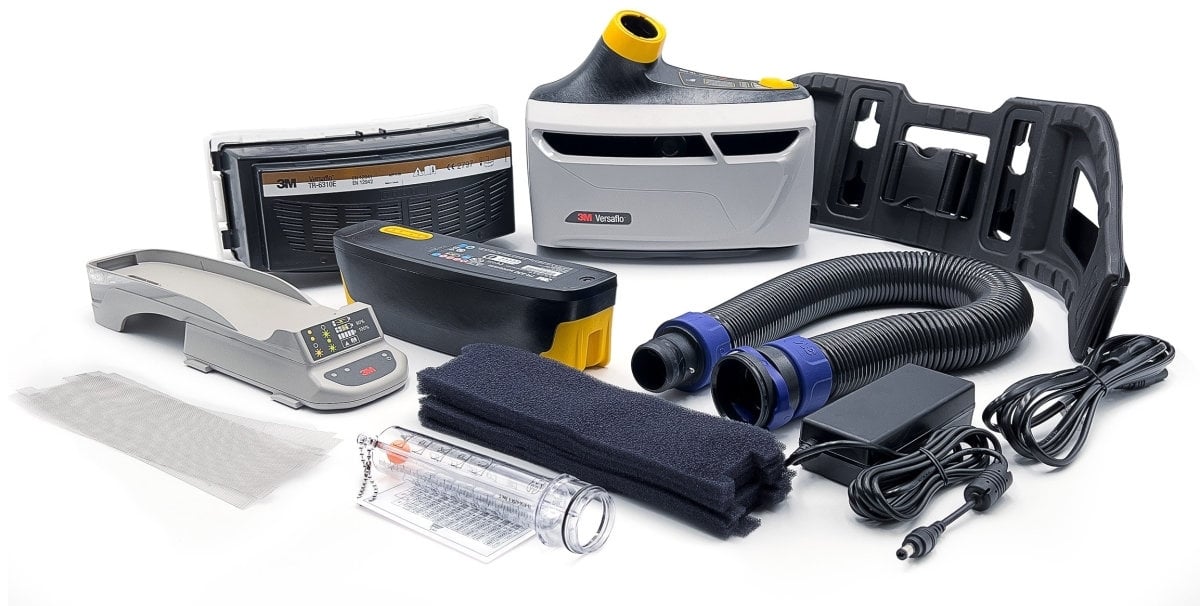

Scope of delivery – TR-819E IS starter kit
- 1× TR-802E intrinsically safe blower unit
- 1× TR-830 intrinsically safe Li-Ion battery
- 1× TR-838 battery mounting tool
- 1× TR-641E battery charger (single station)
- 1× TR-971 airflow indicator
- 1× TR-6310E A2P filter
- 1× TR-6300FC filter cover
- 2× TR-6600 prefilters
- 1× TR-627 easy-clean belt
- 1× BT-30 length-adjustable breathing hose
Compatibility & accessories (excerpt)
| Category | Item | Remark |
| Filter – A2P | 3M TR-6310E A2P R SL | Replacement filter for solvents + particles |
| Headtop – visor | 3M Versaflo™ M-207 | Suitable headtop, not included in the kit |
| Breathing hose | 3M BT-30 | Spare / additional length-adjustable hose |
Applications
- Chemical & pharmaceutical industry, painting and coating
- Oil & gas, refineries, tank cleaning, Ex-rated areas
- Maintenance, remediation, metalworking & welding
- Food & agriculture industry with solvent or dust exposure
Note
This product is intended exclusively for professional and industrial users. The selection of filter, headtop and operating mode (TH / TM) must be based on the actual hazardous substances and the applicable regulations (e.g. national OSH rules and standards).
3M Deutschland GmbH, Carl-Schurz-Straße l, 41453 Neuss, Deutschland, 02131-14-2914 / 0, [email protected], www.3m.com/msds
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 0051131277533 | 7100169180 |
