- Pos.-No. 23214366
- Next item →
Sundström SR 500 EX Powered air purifying respirator kit ATEX/IECEx
€ 2140.75 2,140.75 incl. VAT (1,798.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Sundstrom
Country of origin: SE/0030
Customs tariff number: 90200090
Weight per piece: 2.8 kg
No problem. Simply fill out the form and we will answer you as soon as possible.

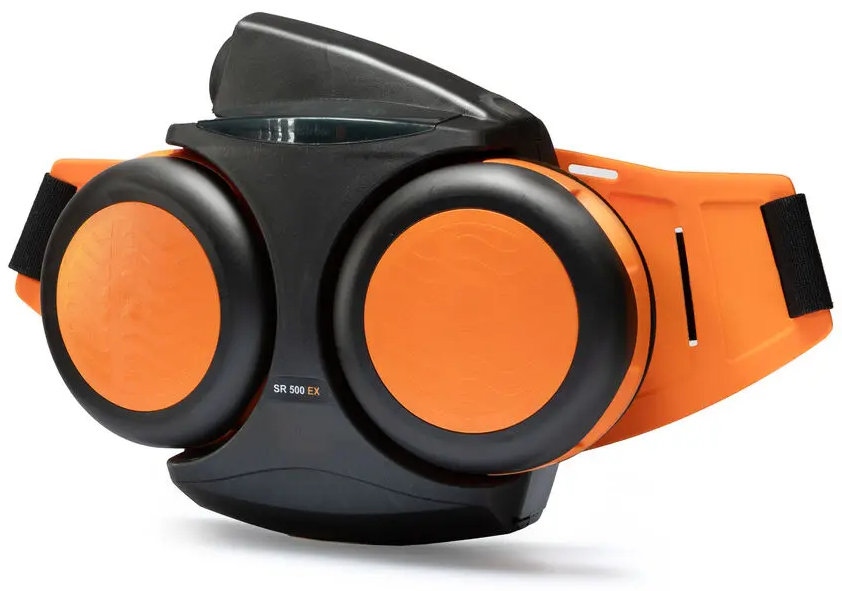

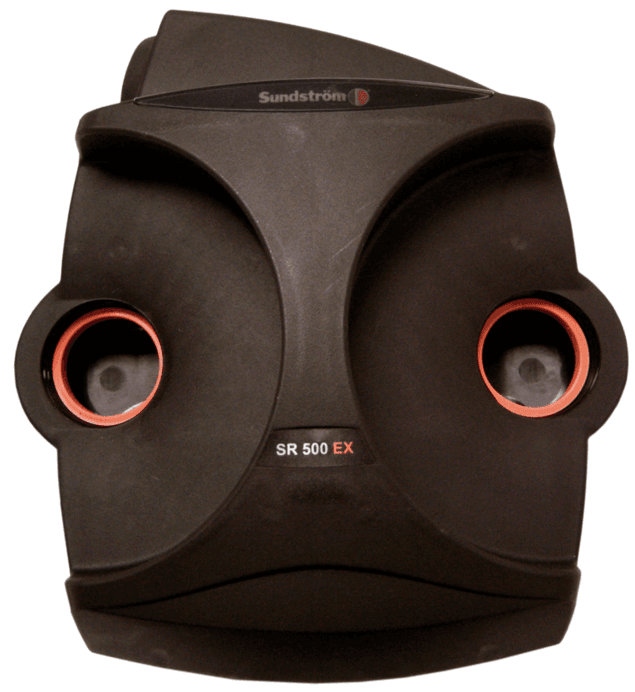

Sundström SR 500 EX ATEX/IECEx PAPR blower unit (Art. No. H06-2012)
The Sundström SR 500 EX is an intrinsically safe, battery-powered PAPR blower for work in potentially explosive atmospheres. Combined with approved filters and head tops (hoods, helmets, full face mask), it forms a high-performance respiratory protection system with positive pressure inside the head top—ideal for demanding, long or hot jobs where powered filtering is recommended.
Features
- ATEX/IECEx approved for gas and dust atmospheres (II 2G / II 2D, Ex ib)
- Automatic airflow control with two levels: 175 / 225 l/min
- EX battery – current revision: Li-Ion SR 502 EX, 18 V, 3.0 Ah (up to 12 h with P3); charge time approx. 4 h

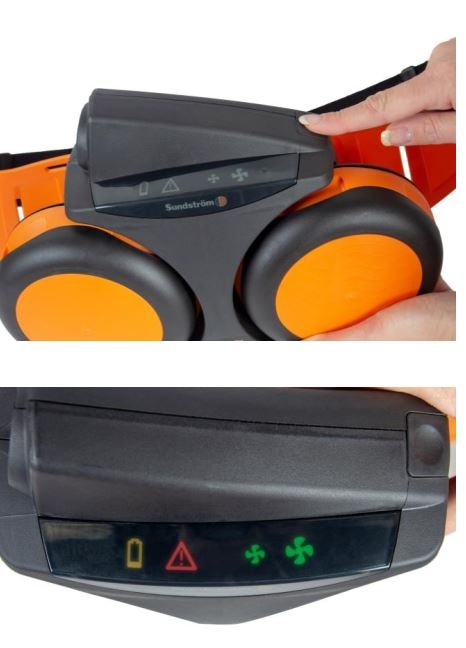

- One-button operation; audible/visual alarms on airflow obstruction
- Compatible with Sundström hoods/visors and SR 200 full face mask
Technical Data
| Article number | H06-2012 |
| Airflow (auto-regulated) | 175 / 225 l/min |
| Battery | EX, 18 V – current: Li-Ion 3.0 Ah |
| Operating time (with P3) | up to 12 h (175 l/min) / 7 h (225 l/min) |
| Charging time | Approx. 4 h |
| Weight (with battery & P3 filters) | ≈ 1,780 g |
| Operating temperature | −10 °C to +40 °C, < 90% RH |
| Storage temperature | −20 °C to +40 °C, < 90% RH |
| Standards (PAPR) | EN 12941:1998 + A2:2008 (TH3), EN 12942:1998 + A2:2008 (TM3) |
| ATEX/IECEx classification | II 2 G Ex ib IIA/IIB T3 Gb; II 2 D Ex ib IIIC T195°C Db |
| Assigned/Nominal Protection | APF 100 (TH3 hoods/visors/helmets), APF 500 (TM3 with SR 200); NPF up to 500/2000 respectively |
Applications
- Hazardous areas (Zone 1/21) in chemicals, pharma, coating/paint, oil & gas
- Long, heavy-duty or hot processes (grinding, cleaning, remediation, filling)
- Laboratories, production, maintenance in Ex environments

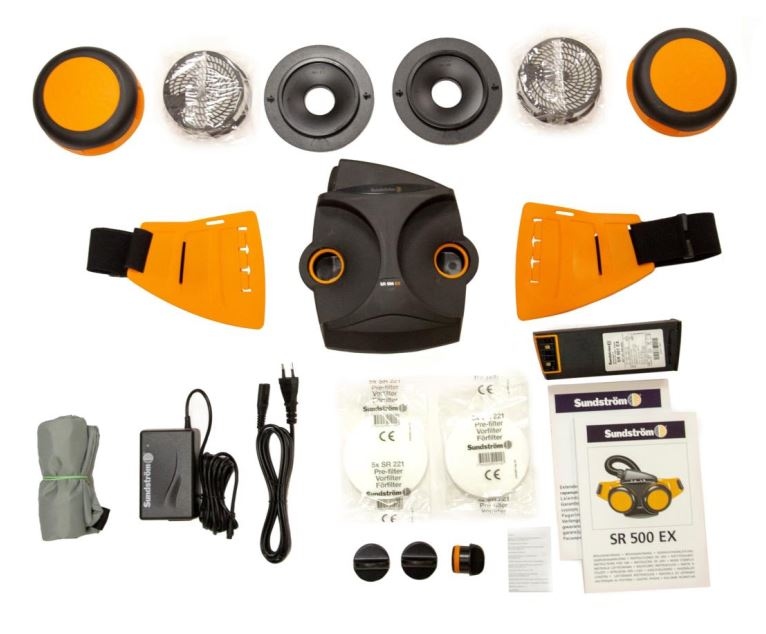

Scope of Supply (Art. No. H06-2012)
- 1 × SR 500 EX blower unit
- 1 × EX battery (current revision: SR 502 EX Li-Ion 18 V, 3.0 Ah; older revisions: SR 501 EX NiMH)
- 1 × EX charger (current Li-Ion model R06-2081; older: SR 513 EX for NiMH)
- 1 × EX belt
- 2 × SR 510 P3 R particle filters
- 2 × SR 511 filter adapters
- 10 × SR 221 prefilters
- 2 × SR 512 EX prefilter holders
- 1 × SR 356 airflow meter
- 1 × SR 5226 cleaning cloth
- Plug kit & user manual
Compatibility & Accessories
| Category | Articles (with shop link) | Notes |
| Head tops (hoods & helmets) | Sundström SR 520 Hood Sundström SR 530 Hood Sundström SR 561 Hood Sundström SR 562 Hood Sundström SR 570 Face shield Sundström SR 575 Helmet with visor Sundström SR 580 Helmet with visor SR 540 EX Face shield (EX variant) | All TH3; Ex gas/dust groups per head top. |
| Masks | Sundström SR 200 Full face mask (PC or glass visor) | With SR 200: TM3 (APF 500 / NPF up to 2000) |
| Filters | SR 510 P3 R particle filter SR 710 P3 R particle filter SR 518 A2 gas filter SR 515 ABE1 gas filter • SR 599 A1BE2K1-Hg-P3 R combination filter | Note: Gas/combination filters are mounted together with SR 510 P3 R (prefilter recommended). |
| EX batteries & chargers | SR 502 EX Li-Ion battery (18 V, 3.0 Ah) • EX charger R06-2081 • EX belts/harness | Current revision; see scope of supply |
| Accessories | SR 356 airflow meter • SR 221 prefilters • SR 512 EX prefilter holders • Plug kit • SR 505 carrying bag | Maintenance & hygiene |
Sundström Safety AB, Västergatan 4, 341 50 Lagan, SWEDEN, +46 10 484 87 00, [email protected], www.srsafety.com
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 7392203001353 | H06-2012 |
