3M PF-619E+ Rechargeable Powered Air Respirator Starter Kit, no filter
€ 1303.05 1,303.05 incl. VAT (1,095.00 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: 3M
Country of origin: US/0400
Customs tariff number: 84213925
Weight per piece: 1.4 kg
No problem. Simply fill out the form and we will answer you as soon as possible.

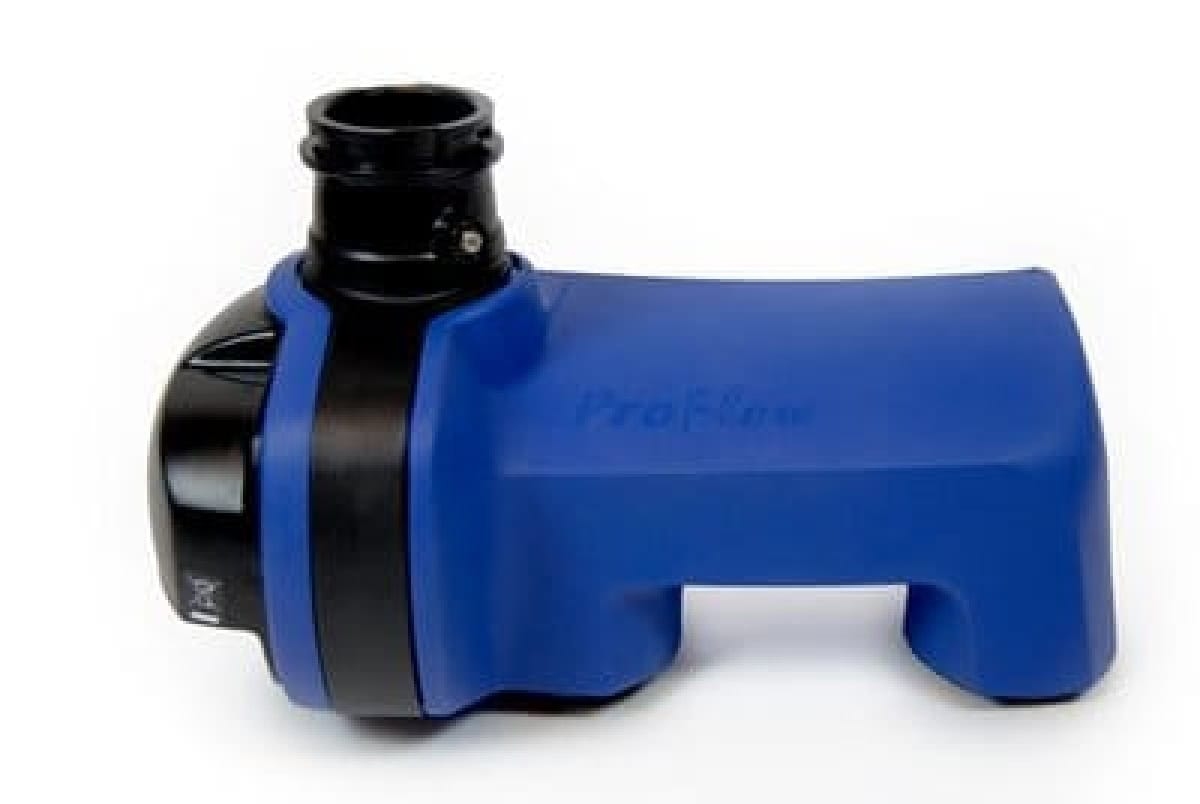

3M™ Powered Air PF-619E is a starter kit for the high-performance blower PF-602E+. As the direct successor to the proven Scott™ Proflow SC, it offers state-of-the-art electronics, an ultra-robust industrial housing and full compatibility with selected 3M™ Versaflo™ headtops of the M- and S-Series.
Key Features
- Rugged polyurethane housing for heavy-duty use (IP65 when cleaned with sealing plugs)
- Automatic monitoring – audible, visual & vibration alarms for low airflow or battery level
- Integrated data-logger records operating hours & warning events for maintenance analysis
- DIN 40 connector – compatible with 3M™ DT filters (particle, gas, combination)
- Single-button operation, colour-coded LED for battery (A) and filter load (P)
- Continues to work with Versaflo™ M-Series headtops such as M-306 or M-206
- Optional full-face masks: 3M FF-600 Series (e.g. FF-603F) via adapter ADP-03
Technical Data
| 3M part no. | PF-619E+ |
| 3M ID | 7100299964 |
| System type | Powered-air respirator, PF-600E+ series |
| Blower unit | PF-602E+ |
| Filter connector | DIN 40 (3M DT series) |
| Minimum airflow (alarm) | 160 l min-1 – warning below this level |
| Standards / classes | EN 12941 TH2 / TH3 • EN 12942 TM2 / TM3 (headtop-dependent) |
| Nominal protection factor | NPF 50 (TH2) / 500 (TH3) |
| Battery | PF-630 Li-ion • run-time ≤ 8 h • charge ≈ 4 h |
| Weight (with battery) | ≈ 1 040 g |
| Sound level | ≤ 70 dB(A) |
| Ingress protection | IP65 (spray-down cleaning with plugs) |
| Housing material | Polyurethane |
| Data-logger | On-board (operating hours / events) |
| Approved headtops | M- & S-Series Versaflo™ (TH2/TH3) • 3M FF-600 masks (TM3) |
| Recommended hose | BT-30 length-adjustable |
| Storage conditions | –30 °C … +50 °C, < 90 % rH • shelf life 5 yr |
All values taken from official 3M PF-600E+ data and approvals.

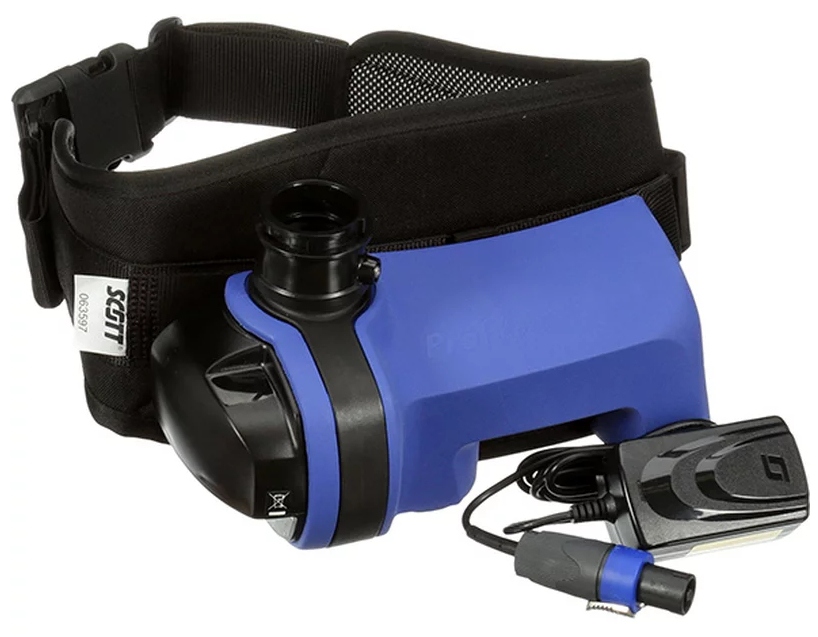

Scope of Supply – PF-619E Starter Kit
- Blower unit PF-602E+
- Li-ion battery PF-630
- Charger PF-641E (single station)
- Comfort belt SS-626
Filters, breathing hose and headtop are selected separately to match the application – ideal for customised configurations.
Compatibility & Accessories (excerpt)
| Category | Item (with link) | Protection class* | Required hose / adapter |
|---|---|---|---|
| Headtop – helmet | 3M Versaflo™ M-306 Helmet | TH3 | BT-30 hose |
| Headtop – visor | 3M Versaflo™ M-207 Grinding Visor | TH2 | |
| Headtop – hood | 3M Versaflo™ S-655 Premium Hood | TH3 | |
| Full-face mask | 3M FF-603F Mask | TM3 | Adapter ADP-03 + BT-30 |
| Filter – combo | 3M DT-4031E A2P3 R D | A2P3 R D | DIN-40 direct |
| Filter – multi-gas + particle | 3M DT-4045E A2B2E2K2P3 R D | A2B2E2K2P3 R D | DIN-40 direct |
| Filter – particle | 3M DT-1135E PF10 P3 R D | P3 R D | DIN-40 direct |
*Classes per EN 12941 / 12942: TH = blower + headtop, TM = blower + mask.

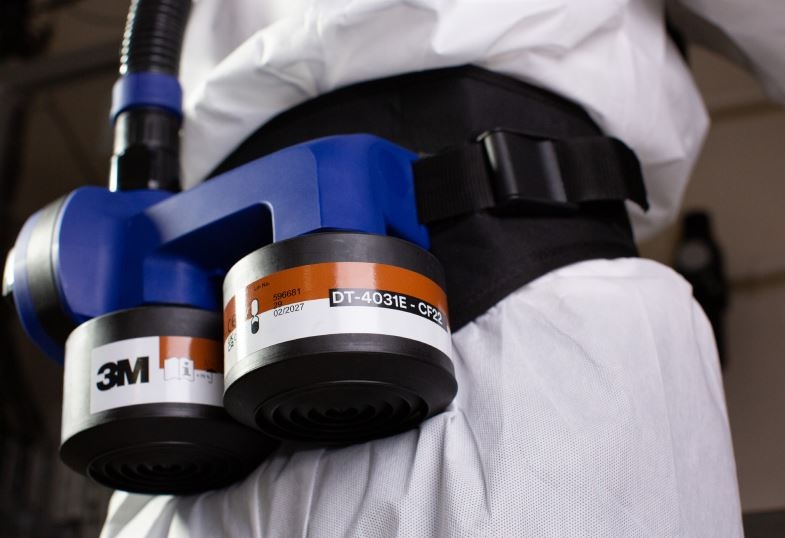

Applications
- Welding, grinding, metalworking
- Painting & coating
- Chemical & pharmaceutical production
- Construction, remediation & demolition
- Food & agriculture
Note
This product is intended for professional and industrial use only; not for consumer applications.
3M Deutschland GmbH, Carl-Schurz-Straße l, 41453 Neuss, Deutschland, 02131-14-2914 / 0, [email protected], www.3m.com/msds
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 04064035079819 | 7100299964 |
