Sundström SR 599 Gas, Vapour and Particulate Filter A1BE2K1-Hg-P3
€ 142.68 71.34 incl. VAT (59.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 2 pieces
Manufacturer: Sundstrom
Country of origin: SE/0030
Customs tariff number: 84219990
Weight per piece: 350 g
No problem. Simply fill out the form and we will answer you as soon as possible.

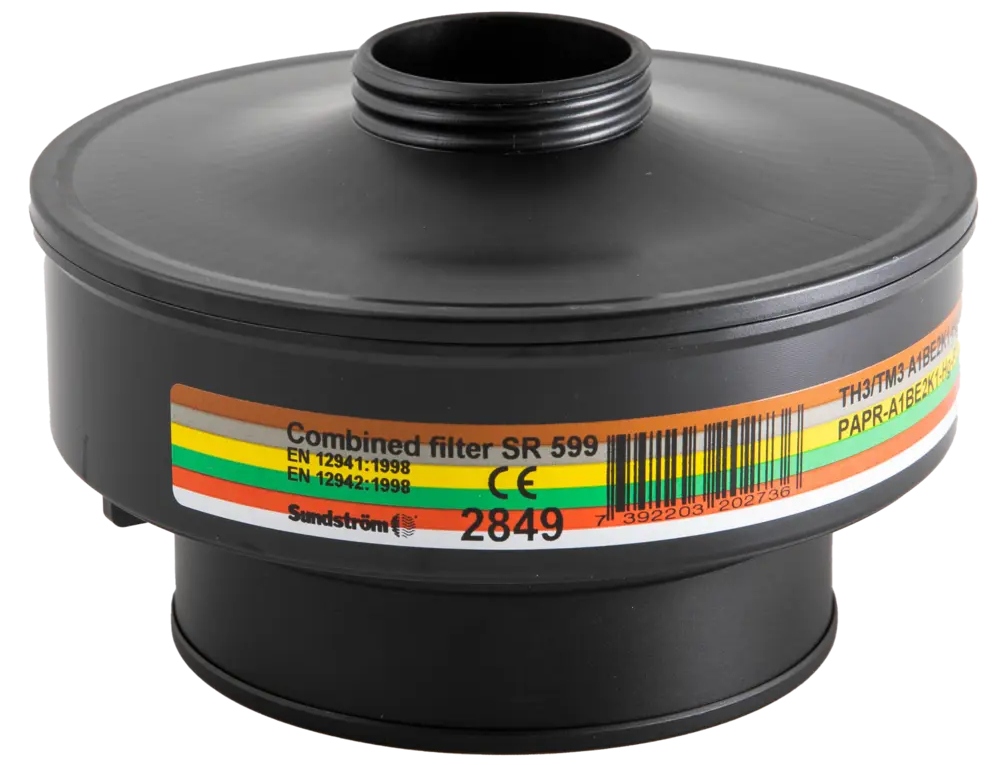

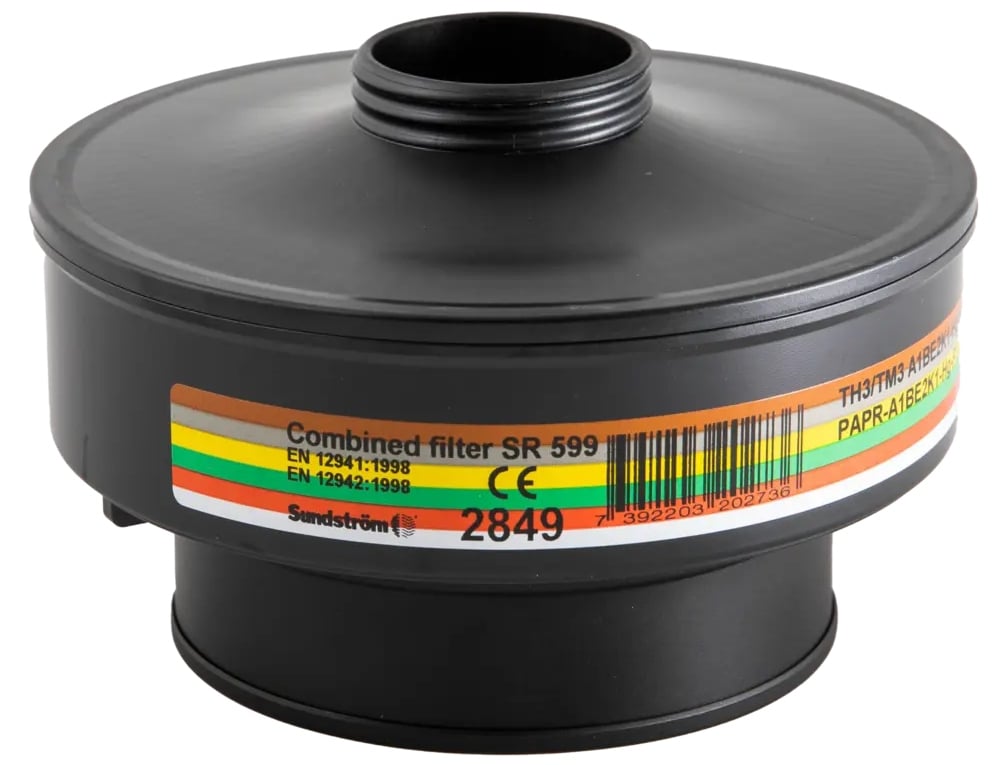

Sundström SR 599 A1BE2K1-Hg-P3 R combination filter (H02-7312) for SR 500 / SR 500 EX
The Sundström SR 599 is a high-performance combination filter A1BE2K1-Hg-P3 R for use with the powered air units SR 500 and SR 500 EX. It protects against organic, inorganic and acidic gases/vapours, ammonia, mercury vapour, and provides P3 R particle protection.
Protection
- A1: Organic vapours (boiling point > +65 °C), e.g. solvents
- BE2: Inorganic (B) and acidic (E) gases/vapours, e.g. Cl2, H2S, HCN, SO2, HF
- K1: Ammonia and certain amines
- Hg: Mercury vapour (maximum service time 50 hours)
- P3 R: Solid and liquid particles (fine dust, mist, smoke, microorganisms, fibre dust)
Features
- Compact multi-range combination filter for powered air systems
- R (reusable): suitable for multiple work shifts
- Use with prefilter SR 221 and holder SR 512 to extend service life
- Pack size: 1 piece
Technical data
| Model / designation | SR 599 A1BE2K1-Hg-P3 R |
| Part No. | H02-7312 |
| Compatibility | SR 500 • SR 500 EX |
| Materials | PC/ABS, polyester, PP, impregnated activated carbon |
| Approvals | EN 12941:1998 + A2:2008 • EN 12942:1998 + A2:2008 |
| Operating temperature | −10 to +55 °C, < 90% r.h. |
| Storage temperature | −20 to +40 °C, < 90% r.h. |
| Shelf life | 5 years |
| Country of origin | Sweden |
| Contents | 1 piece |
Use notes
- With SR 500 / SR 500 EX always use two identical filters simultaneously.
- Fit SR 221 prefilter in the SR 512 holder to increase service life.
- For mercury vapour (Hg): observe the max. 50 h service time.
- Observe limits per risk assessment and manufacturer instructions.
Overview Table of Filter Classes
| Class | Meaning | Typical use / protection |
|---|---|---|
| Particle filters (P Classes) | ||
| P1 | Coarse, mechanically generated particles (up to 4× OEL) | Grinding, drilling, cutting |
| P2 | Finer mechanical/thermal particles (up to 10× OEL) | Welding fumes, soldering, fine dust |
| P3* | Very fine / highly toxic particles (up to 30× OEL) | Asbestos, mould, viruses, nanoparticles |
| Gas & vapour filters (A–K, Hg, AX) | ||
| A* | Organic vapours (b.p. > 65 °C) | General solvent protection |
| A1* | As A, lower capacity | Paints/coatings with residual solvent |
| A2 | As A, higher capacity | Thinners, adhesives, solvent-based paints |
| B* | Inorganic gases/vapours | Chlorine, hydrogen sulphide, HCN |
| E* | Acid gases/vapours | Sulphur dioxide, hydrochloric acid |
| K* | Ammonia & derivatives | Fertilisers, lab processes |
| Hg | Mercury vapour | Spills, waste handling (max. 50 h) |
| AX | Organic vapours (b.p. < 65 °C) | Very volatile solvents (full face mask only) |
| Additional markings | ||
| R | Reusable | Suitable for multiple shifts |
| NR | Non-reusable | Single-shift only |
| D | Dolomite dust test passed | Higher dust-load endurance |
* Note: Please ensure that the selected respiratory protective equipment is suitable for the specific hazardous substance and its concentration before use, in action.
Sundström Safety AB, Västergatan 4, 341 50 Lagan, SWEDEN, +46 10 484 87 00, [email protected], www.srsafety.com
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 7392203202736 | H02-7312 |
