Sundström SR 561 Headtop for powered air respirators TH3, with hose

Sundström SR 561 Headtop for powered air respirators TH3, with hose

pics/sundstrom/sr561/sundstroem-sr-570-augen-atemschutz-gesichtsschutz-haube-h06-5012.jpg

€ 184.39 184.39 incl. VAT (154.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Sundstrom

Country of origin: SE/0030

Customs tariff number: 90200090

Weight per piece: 500 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

zero - four = ?

( Examples: two + three = 5, three - five = -2 )

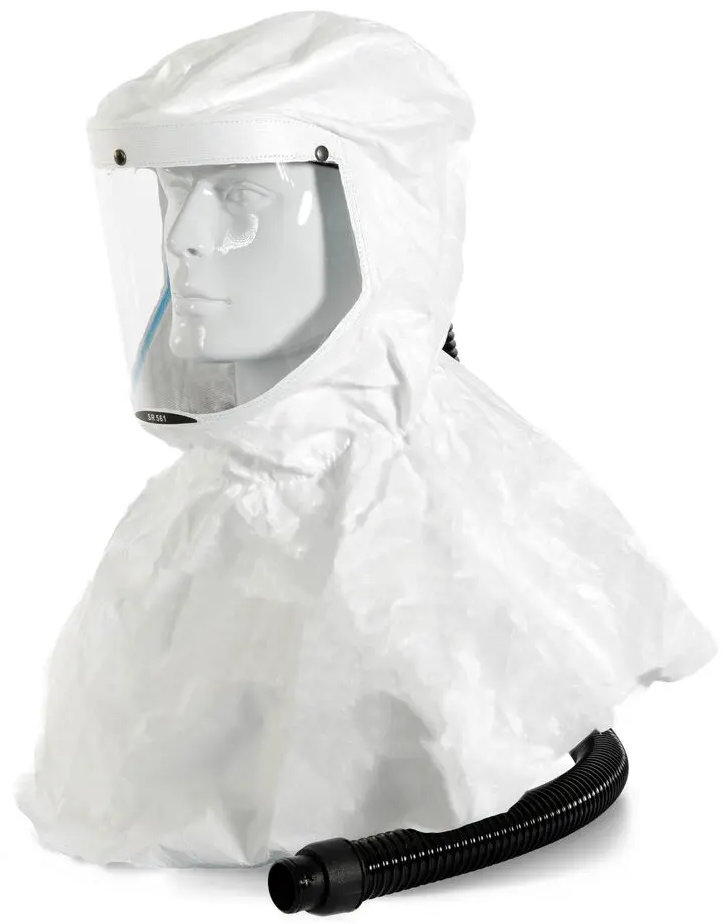

Sundström SR 561 Hood TH3 – complete with hose (H06-5012)

The Sundström SR 561 is a loose-fitting TH3 hood for powered air systems. Combined with blower units SR 500, SR 500 EX or SR 700 and approved filters, it creates positive pressure inside the head top to prevent contaminant ingress. It can also be used with the compressed-air regulator SR 507.

Features

Protection for respiratory tract, head and shoulders (SR 561)
Replaceable Tyvek® hood, PETG visor (fog-resistant via incoming air)
Adjustable head harness and neck seal
Flexible breathing hose; Ex use approved together with SR 500 EX

Approvals & Ratings

EN 12941:1998 + A2:2008 (TH3) • EN 14594:2005 (3A/3B)
Assigned Protection Factor (APF): 100 (TH3, 3A/3B) • NPF: 500 (TH3) / 200 (3A/3B)
ATEX (with SR 500 EX): II 2 G Ex ib IIB T3 Gb • II 2 D Ex ib IIIC T195°C Db

Technical Data

Article number	H06-5012
Model	SR 561
Weight (with hose)	≈ 450 g
Operating temperature	−10 to +55 °C, < 90 % RH
Storage temperature	−20 to +40 °C, < 90 % RH
Colour / Origin	White / Sweden • Shelf life: 5 years
Permitted airflow (system)	SR 500: 175/240 l/min • SR 500 EX/SR 700: 175/225 l/min • SR 507: 175–260 l/min

Applications

Extended, hot or heavy-duty tasks (e.g. grinding, cleaning, remediation)
Chemical, lab, food, pharma • Ex areas (with SR 500 EX)

Scope of Supply (H06-5012)

SR 561 hood with breathing hose
User instructions
Cleaning wipe

Compatibility & Accessories

Category	Articles (with shop link)	Notes
Blower units	Sundström SR 500 Sundström SR 500 EX Sundström SR 700	TH3 approval; ATEX with SR 500 EX
Compressed air	SR 507 regulator	EN 14594 class 3A/3B
Spare parts (SR 561)	Hood long R06-5001 • Head harness R06-5002 • Hose R06-5003 • Hose adapter T06-5001 • O-ring R06-0202 • Sweatband R06-0504	Available as single parts
Accessories	Hose protector T06-0121 • Neck comfort band T06-0803	Comfort & protection

Information on product safety (Manufacturer, Contact)

Sundström Safety AB, Västergatan 4, 341 50 Lagan, SWEDEN, +46 10 484 87 00, [email protected], www.srsafety.com
