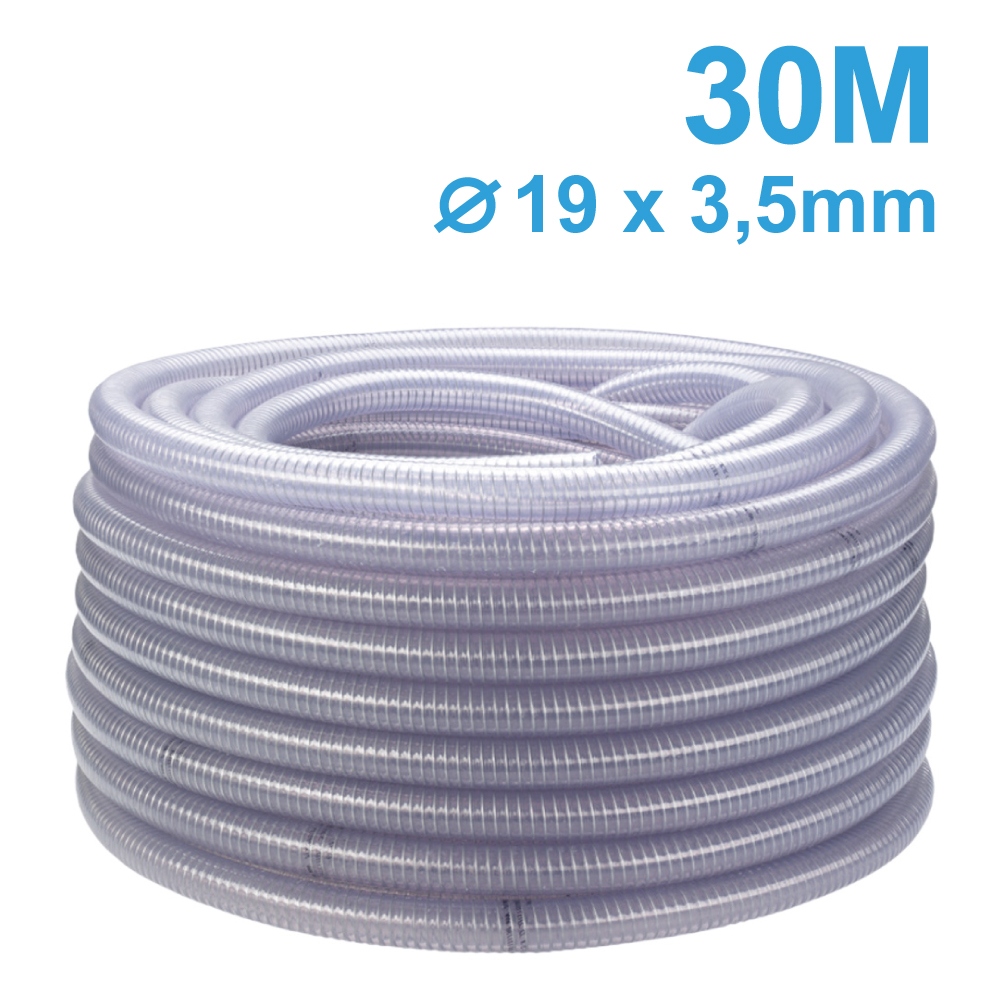

PVC spiral suction and pump hose transparent Ø 19 x 3.5mm, 30m, 6815
PVC spiral suction and pump hose transparent Ø 19 x 3.5mm, 30m, 6815
€ 77.29 77.29 incl. VAT (64.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Feldtmann
Country of origin: IT/0005
Customs tariff number: 39173900
Weight per piece: 9.2 kg
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
Transparent PVC suction and pressure hose with spring steel spiral
- Length: 30 m
- Inner diameter: 19 mm
- Wall thickness: 3.5 mm
- Also available with inner ⌀: 25mm 32 mm, 38 mm, 40 mm, 50 mm, 75 mm
Features
- Reinforced PVC hose with embedded steel wire helix for superior strength and flexibility
- Transparent construction for easy flow monitoring
- Vacuum-resistant up to approx. 9 m WS
- Wide temperature range: –10 °C to +60 °C
- Meets EU Regulation 10/2011 for food-grade liquids (A-B-C-D1)
- Safety factor 3:1
Technical specifications
| Material | PVC with steel wire reinforcement |
| Inner diameter | 19mm |
| Wall Thickness | 3.5 mm |
| Length | 30m |
| Colour | Transparent |
| Temperature range | –10 °C to +60 °C |
| Working pressure at 20 °C | 8 bar |
| Vacuum resistance | up to approx. 9 m WS |
| Item no. | 6815/19 |
Applications
- Fluid transfer of water, oils, chemicals, and other liquids
- Agricultural use for irrigation, slurry, and fertilizer transport
- Construction tasks such as dewatering, concrete pumping, and material handling
- Industrial suction and discharge operations in manufacturing plants
HELMUT FELDTMANN GmbH, Zunftstraße 28, 21244 Buchholz, 04181/2004-0, [email protected]
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4025888224665 | 6815/19 |
