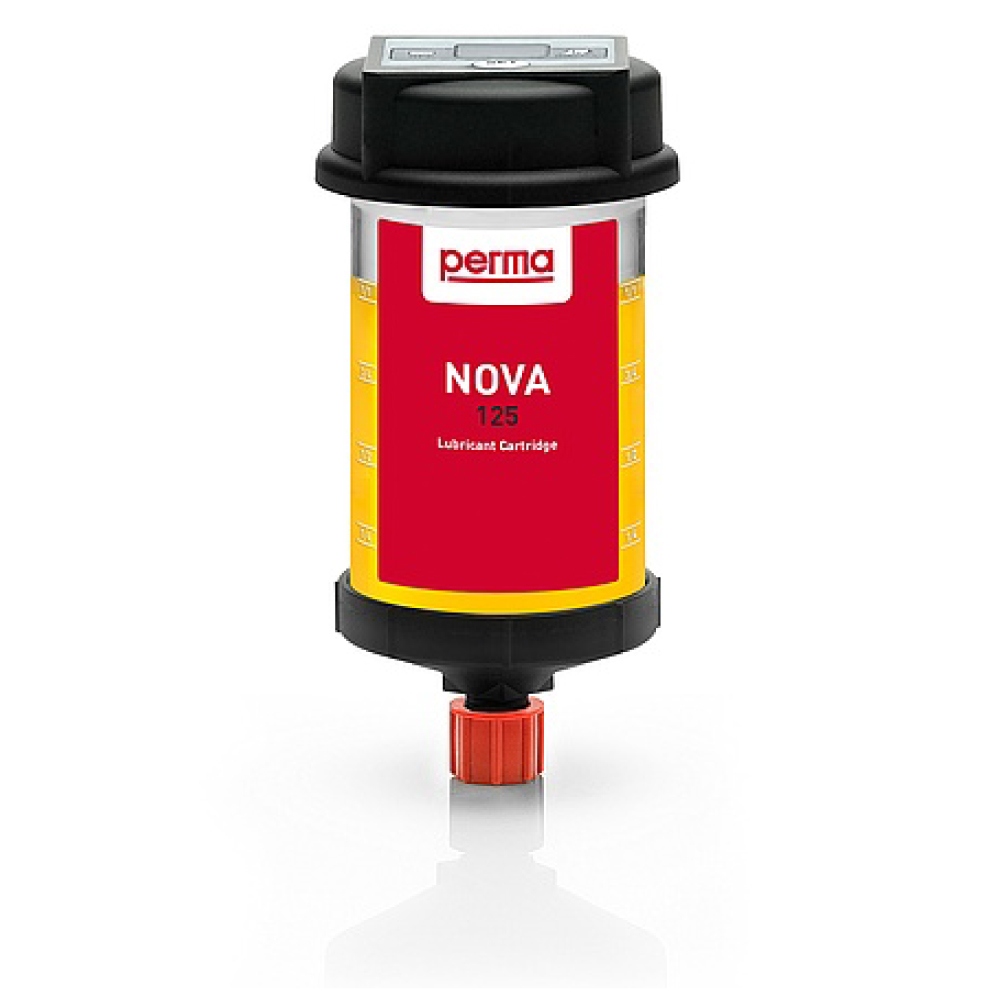

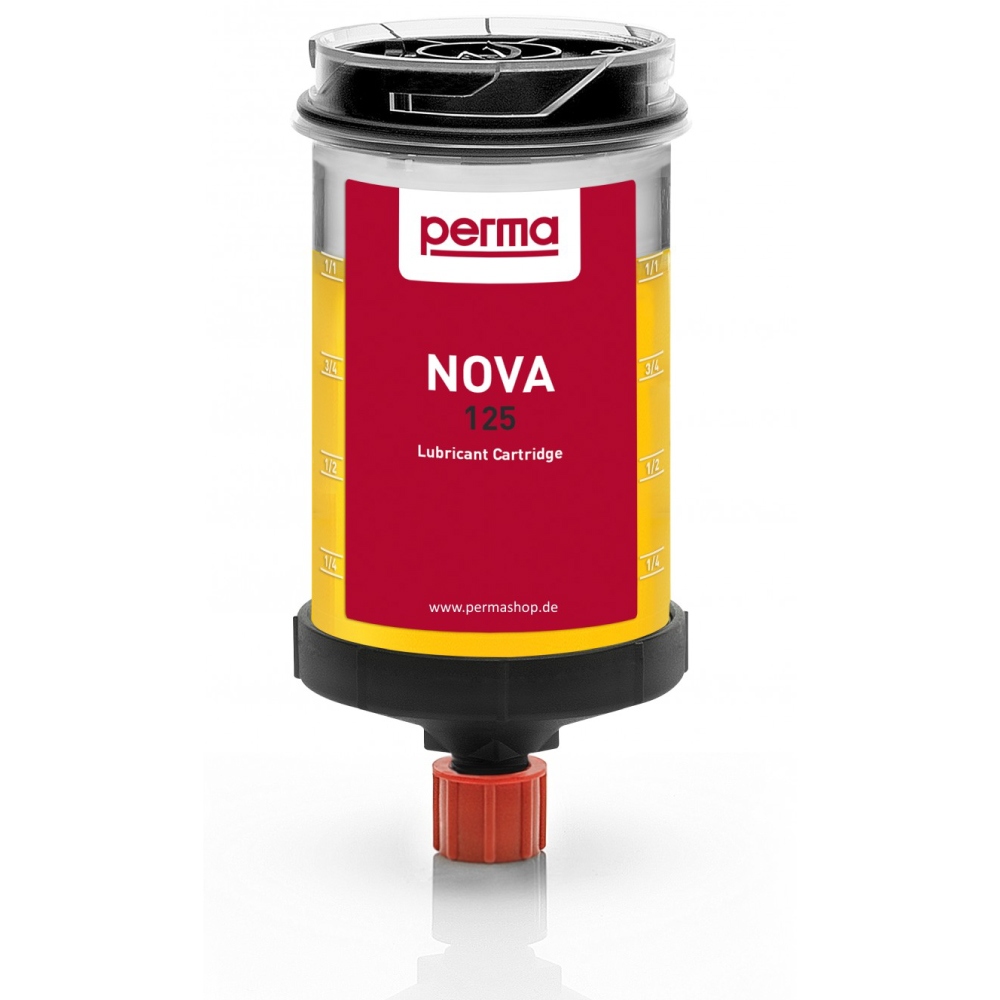

Perma NOVA LC125 Lubricant cartridge with Kluber Isoflex NBU 15

Perma NOVA LC125 Lubricant cartridge with Kluber Isoflex NBU 15

pics/perma/NOVA/perma-nova-lc125-lubricant-dispenser-oil-01.jpg

€ 78.48 78.48 incl. VAT (65.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: Perma

Country of origin: DE/0004

Customs tariff number: 34031980

Weight per piece: 220 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

two + five = ?

( Examples: two + three = 5, three - five = -2 )

Perma NOVA LC125 Lubricant cartridge with Klübersynth UH1 14-151 | Perma Ref. 116199

Klüber ISOFLEX NBU 15

ISOFLEX NBU 15 is a high-speed grease with a good pressure absorption capacity.
It consists of a combination of ester oil, synthetic hydrocarbon oil and mineral oil and a barium complex soap. It offers good protection against wear and corrosion and is resistant to water, media and oxidation.

Application:
ISOFLEX NBU 15 is primarily used for spindle bearings and highspeed plain bearings, e.g. in machine tools and textile machines. Further applications are in threaded spindles, ball screws operating under high loads, running gear bearings, as a longterm grease in cableway bearings and in precision engineering. It may also be used for the lubrication of tooth flanks in precision gears (e.g. bevel gears in milling machines, electromechanical valve actuators).

Application notes:
The lubricant is applied by brush, spatula, grease gun or grease cartridge. Owing to the many elastomer and plastic compositions, we recommend checking the grease's compatibility prior to series application with elastomers or plastics.

Product data:

Lower service temperature	-40°C / -40°F
Upper service temperature	130 °C / 266 °F
Color space	beige
Texture	homogeneous
Texture	shortfibred
Density at 20 °C	approx. 0.99 g/cm³
Worked penetration, DIN ISO 2137, 25 °C, lower limit value	265 x 0.1 mm
Worked penetration, DIN ISO 2137, 25 °C, upper limit value	295 x 0.1 mm
Shear viscosity at 25°C, shear rate 300 s-1, equipment: rotational viscometer, lower limit value	4 000 mPas
Shear viscosity at 25°C, shear rate 300 s-1, equipment:rotational viscometer, upper limit value	8 000 mPas
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C	approx. 21 mm²/s
Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C	approx. 4.5 mm²/s
Corrosion inhibiting properties of lubricating greases, DIN 51802, (SKF-EMCOR), test duration: 1 week, distilled water	<= 1 corrosion degree
Drop point, DIN ISO 2176	>= 220 °C
Speed factor (n x dm)	approx. 1 600 000 mm/min
Minimum shelf life from the date of manufacture in a dry, frostfree place and in the unopened original container, approx.	36 months

Perma NOVA Lubrication systems

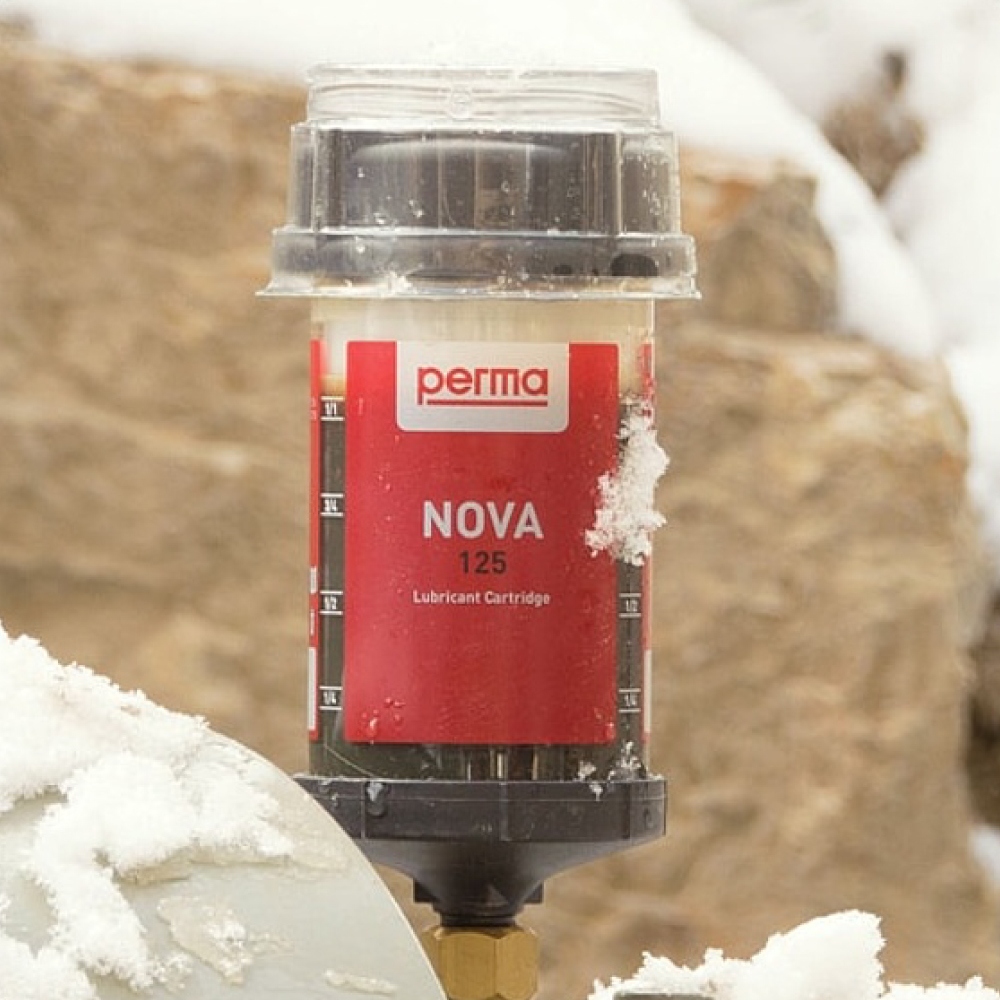

Perma NOVA can be used in all application areas from -20 °C to +60 °C.

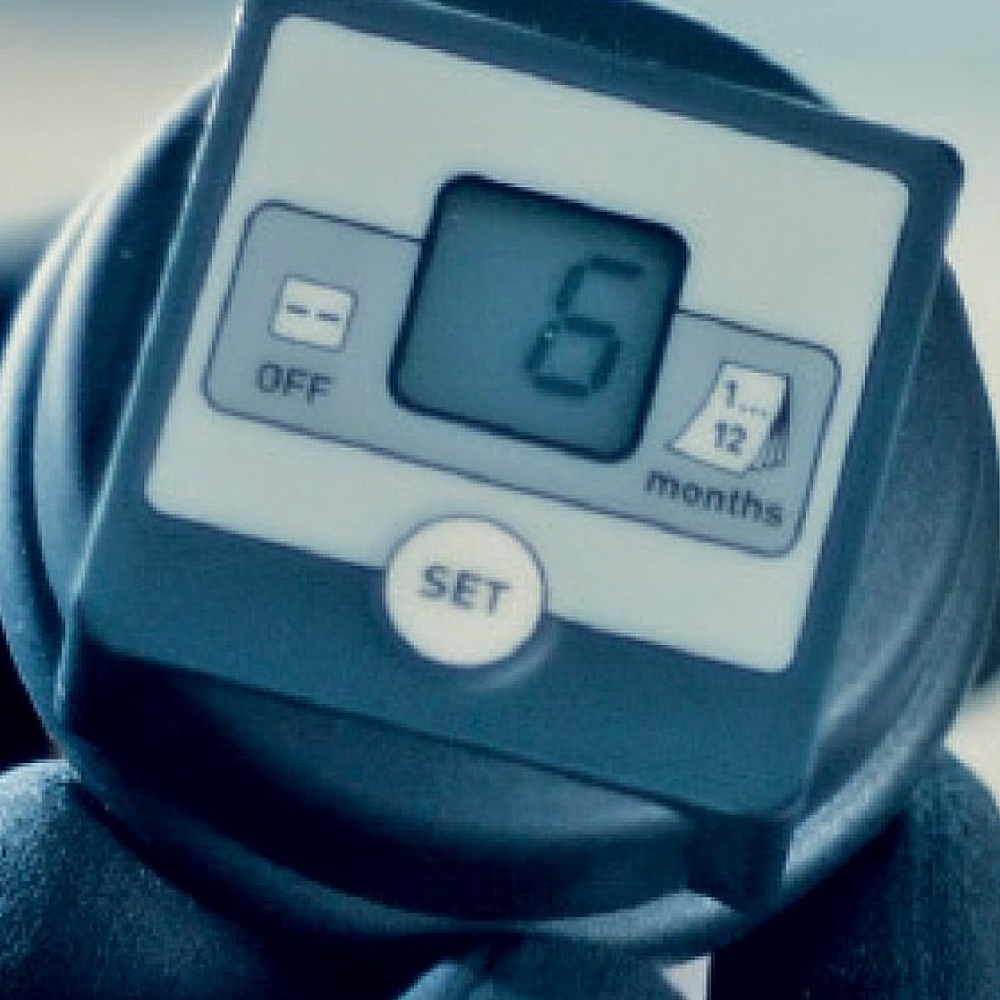

A discharge period from 1 to 12 months can be entered via the setting button on the NOVA Control unit.
The control unit then calculates the required quantity of gas for constant and reliable discharge while taking into account the ambient temperature.
Perma NOVA consists of a reusable control unit, a NOVA LC filled with grease or oil and a protective cover.
NOVA LC is available in 65 cm³ and 125 cm³.
