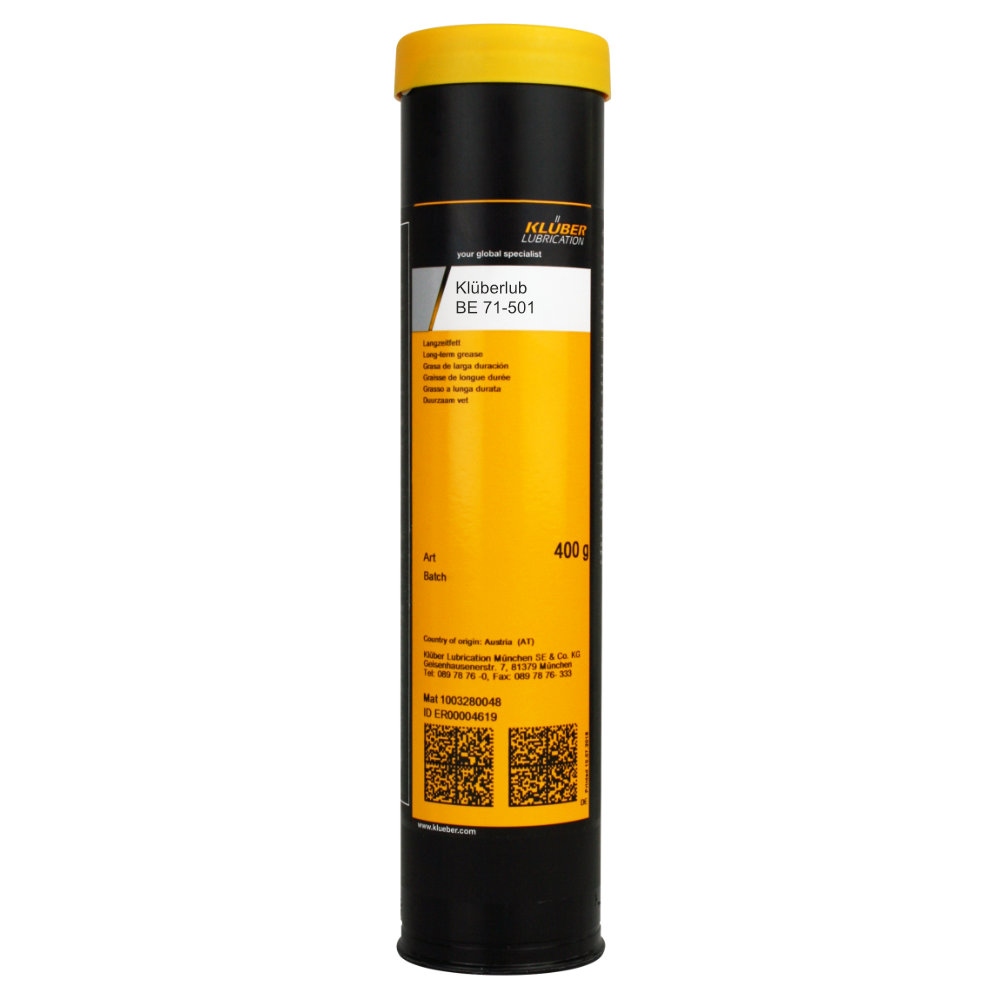

Klüberlub BE 71-501 Lubricant for sliding and roller bearings 400g
€ 43.97 43.97 incl. VAT (36.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: KLUBER
Country of origin: ES/0011
Customs tariff number: 27101999
Weight per piece: 400 g
No problem. Simply fill out the form and we will answer you as soon as possible.
Special lubricating grease for rolling and plain bearings
- Klüberlub BE 71-501 is a light-coloured lubricating grease which offers good compatibility with nonferrous metals like those used for example as plain bearing material. Due to its special formulation and solid lubricants, wear is low when exposed to rotating and oscillating motion and high impact loads. Klüberlub BE 71-501 is resistant to water and has a good sealing effect. The additives contained in this product enhance its ageing resistance.
- Size: 400g cartridge
- Available in 400g cartridge, 25kg bucket
Benefits for your application
- Versatile lubricant for highly loaded rolling and plain bearings
- Reduced operating and maintenance costs due to low consumption
- Good wear protection when exposed to high loads
- Long grease life due to low operating temperatures and friction
- Low waste water disposal costs and long service life of components due to good water resistance
Application
Klüberlub BE 71-501 can contribute to extending the service life of plain bearings where low-wear and low-friction operation is required under mixed friction conditions. This special grease
meets the requirements in terms of reduced lubricant consumption and extended lubrication intervals in forging presses while maintaining a constant temperature level in the plain bearing. Klüberlub BE 71-501 can also be used for plain bearings subject to high loads in the plastics processing industry and building machines (e.g. ring-roll mills) and in construction machines. Owing to the good results achieved on the rolling bearing test rigs and the good pumpability of the grease in commercial central lubrication systems. Klüberlub BE 71-501 is also suitable for high-temperature applications, especially in the steel industry (e.g. ring-roller mills) and woodworking industry (e.g. rolling bearings in pelleting presses).
Application notes
- Klüberlub BE 71-501 can be applied by means of central lubrication systems or by brush, spatula, grease gun and automatic metering devices. When switching to Klüberlub BE 71-501, the lubricant consumption should be reduced step by step in order to ensure that used lubricant, wear particles and impurities are completely removed from the bearing.
Product data
| Article number | 20160 |
| Chemical composition | solid lubricant |
| Chemical composition, thickener | polyurea |
| Chemical composition, type of oil | mineral oil |
| Colour space | yellow |
| Lower service temperature | -20 °C / -4 °F |
| Service temperature, upper limiting value for continuous lubrication | 160 °C |
| Service temperature, rolling bearings, acc. to DIN 51825 | 140 °C |
| Worked penetration, DIN ISO 2137, 25 °C, lower limit value | 310 x 0,1 mm |
| Worked penetration, DIN ISO 2137, 25 °C, upper limit value | 340 x 0,1 mm |
| Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C | approx. 490 mm²/s |
| Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C | approx. 32 mm²/s |
| Lubricating greases -K, DIN 51825 in connection with DIN 51502 | KPF1N-20*; *Emcor max. 2 |
| Speed factor (n x dm) | approx. 300 000 mm/min |
| Corrosion inhibiting properties of lubricating greases, DIN 51802, (SKF-EMCOR), test duration: 1 week, distilled water | <= 2 corrosion degree |
| Copper corrosion, DIN 51811, (lubricating grease), 24h/100°C | 1 - 100 corrosion degree |
| Drop point, DIN ISO 2176, IP 396 | >= 200 °C |
| Flow pressure of lubricating greases, DIN 51805, test temperature: -20 °C | <= 1 400 mbar |
| Four-ball tester, welding load, DIN 51350 pt. 04 | >= 4 000 N |
| Four-ball EP tester,wear value,DIN 51350 part 5, procedure E,60s/1000N, wear scar diameter | <= 1 mm |
| Load-carrying capacity acc. to Brugger B, based on DIN 51347-1 and -2 | >= 30 N/mm² |
| Water resistance, DIN 51807 pt. 01, 3 h/90 °C, rating | <= 1 - 90 |
| Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx. | 24 months |
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 943150924 |
