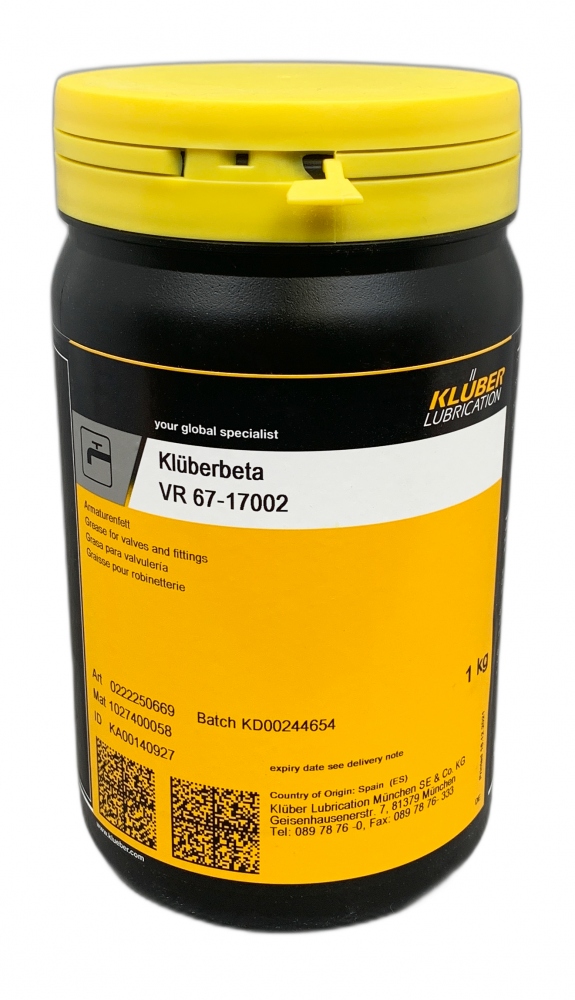

Klueberbeta VR 67-17002 Special soft grease for heating valves 1kg can

Klüberbeta VR 67-17002 Special soft grease for sanitary and heating valves and taps

• A pasty, whitish special grease for valves and fittings.
• It is based on silicone oils which comply with drinking water regulations. It shows a high dynamic viscosity which is relatively insensitive to temperature.
• Klüberbeta VR 67-17002 is a thixotrope product, i.e. it behaves like a consistent lubricant when at rest, while under dynamic load it begins to flow.
• The product thus combines sufficient wetting of the friction point and hence sound lubrication with a good sealing effect and adhesion.
• The lubricant was developed for incidental contact with products and packaging materials in the food-processing, cosmetics, pharmaceutical or animal feed industries.
• Temperature range: -40°C to +160°C
• Volume: Can 1 kg
• Also available in: Bucket 25 kg

Benefits for your application

Prolonged service life of cartridges, valves and fittings due to

• continuous wetting of the friction surfaces
• compatibility with most standard elastomers and plastics
• friction and wear reduction in most material combinations

Prevents stick-slip and provides balanced damping of operation

• as temperature has little effect on lubricating film thickness
• due to high base oil viscosity (effect on actuating forces)

Certified for use in drinking water and beverage taps

• according to UBA (German Environmental Agency) guideline BWGL-KTW, NSF/ANSI/CAN 61, WRAS, ACS, Belgaqua, AS 4020, NSF H1 - further certifications available on request

NSF ISO 21469 certified - supports the compliance with the hygienic requirements in your production plant.

Applications

• Klüberbeta VR 67-17002 is suitable for drinking water and beverage taps as well as in heating installations, for example to improve the smooth operation of valves and fittings through defined actuating forces.
• Typical applications include the lubrication of ceramic discs, e.g. in single lever mixer taps, piston mixers, plastic taps, valves, thermostats, press fit seals and similar components.
• Klüberbeta VR 67-17002 has proven particularly successful as assembly lubricant for seals, collars and seal packings in cold and hot water as well as steam applications.

Application notes

• Being a silicone grease, Klüberbeta VR 67-17002 shows mostly neutral behaviour towards most metals, thermoplastics and elastomers.

Technical specifications

Article number	022225
NSF-H1 registration	144 019
Colour space	white
Chemical composition, type of oil	silicone oil
Chemical composition, thickener	silicate
Lower service temperature	-40 °C / -40 °F
Upper service temperature	160 °C / 320 °F
Density at 20 °C	approx. 1.05 g/cm³
Unworked penetration, acc. to Klein, 25 °C, lower limit value	240 x 0.1 mm
Unworked penetration, acc. to Klein, 25 °C, upper limit value	300 x 0.1 mm
Shear viscosity at 25 °C, shear rate 300 s-1, equipment: rotational viscometer, lower limit value	20 000 mPas
Shear viscosity at 25°C, shear rate 300 s-1, equipment:rotational viscometer, upper limit value	46 000 mPas
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 25 °C	approx. 17 000 mm²/s
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	12 months
