Klüber Grafloscon B-SG 00 Ultra gear ring grease 25kg

Klüber Grafloscon B-SG 00 Ultra gear ring grease 25kg

€ 1068.82 1,068.82 incl. VAT (898.17 excl. VAT), per piece *

Availability: shipping in 1-2 weeks

Packaging unit: 1 piece

Manufacturer: KLUBER

Country of origin: BE/0017

Customs tariff number: 27101999

Weight per piece: 26.0 kg

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

three - five = ?

( Examples: two + three = 5, three - five = -2 )

GRAFLOSCON B-SG 00 ULTRA

GRAFLOSCON B-SG 00 ULTRA is a sprayable running-in lubricant with a mineral base oil. It contains aluminium stearate as a thickener and solid lubricant particles of fine graphite. The lubricant is free from bitumen, heavy metals, solvents and raw materials containing chlorine, and allows to subject the friction points to well-defined wear. GRAFLOSCON B-SG 00 ULTRA reduces surface roughness and improves the tooth flank quality
which makes it also suitable for corrective lubrication if tooth flanks are damaged.

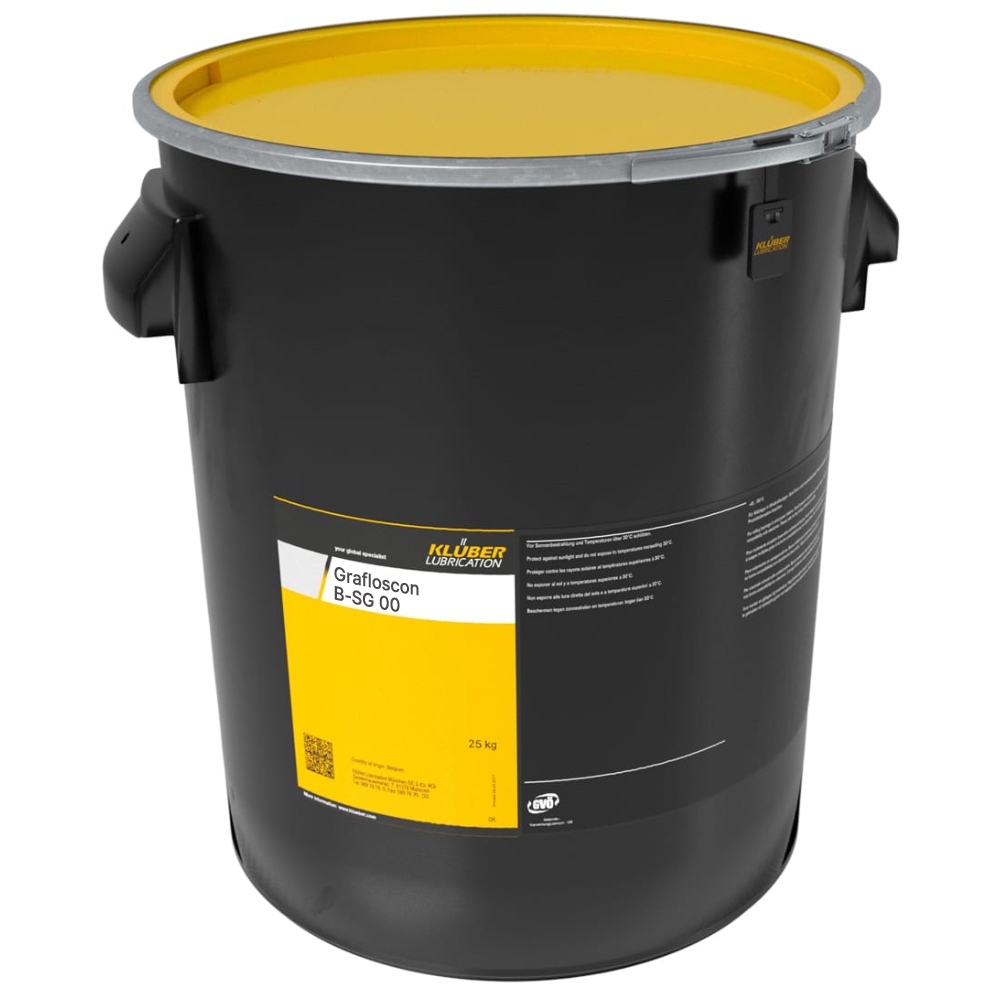

Size: 25kg bucket,
Available in 25kg bucket, 180kg drum

Benefits for your application

GRAFLOSCON B-SG 00 ULTRA reduces surface roughness and improves tooth flank quality thus contributing to a longer service life of drives and reduced maintenance costs.

Application

GRAFLOSCON B-SG 00 ULTRA was especially developed for specific running-in of open gears in rotary kilns, tube mills, and line blenders used in the cement, lime, gypsum, mining and chemical industries.

Technical specifications

Article number	39070
Solid lubricants, percentage	approx. 12 % by weight
Colour space	black
Texture	homogeneous
Texture	long-fibred
Density at 20 °C	approx. 1.00 g/cm³
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C	approx. 500 mm²/s
NLGI grade, DIN 51818	0
Thermal stability of the lubricating film	approx. 200 °C
Functional lubricant film	approx. -30 °C
Application in automatic spray systems	-15 - 90 °C
Drop point, DIN ISO 2176, IP 396	> 90 °C
FZG scuffing test, based on DIN ISO 14635, A/2.76/50, change in weight	approx. 1,4 mg/kWh
FZG scuffing test, based on DIN ISO 14635, A/2,76/50, scuffing load stage	> 12
Four-ball tester, welding load, DIN 51350 pt. 04	>= 6 500 N
Water resistance, DIN 51807 pt. 01, 3 h/40°C	0 - 40
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	24 months
