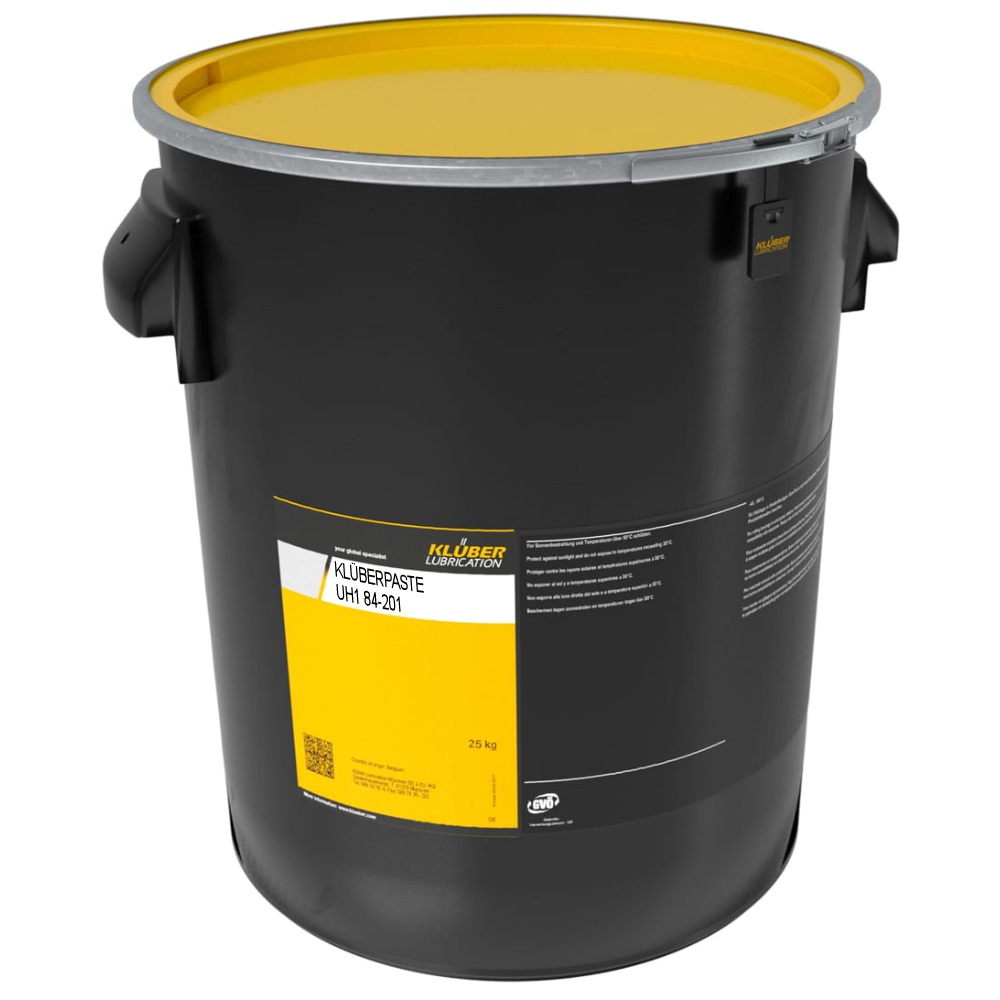

Klüberpaste UH1 84-201 White lubricating and assembly paste 25kg

Klüberpaste UH1 84-201 White lubricating and assembly paste 25kg

pics/Kluber/Copyright EIS/bucket/klueberpaste-uh-1-84-201-white-lubricating-and-assembly-paste-25kg.jpg

€ 3449.81 3,449.81 incl. VAT (2,899.00 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: KLUBER

Country of origin: DE/0004

Customs tariff number: 34039900

Weight per piece: 25.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

two - eight = ?

( Examples: two + three = 5, three - five = -2 )

White lubricating and assembly paste for the food-processing and pharmaceutical industries

Klüberpaste UH1 84-201 is a white lubricating and assembly paste for versatile lubricating and assembly purposes in hygienically sensitive environments.
It contains fully synthetic base oils and a special blend of organic and inorganic thickeners.
Klüberpaste UH1 84-201 is water-resistant and provides good corrosion protection. It is therefore suitable for friction points affected by humidity which normally require the use of special products.
Klüberpaste UH1 84-201 is NSF H1 registered and therefore complies with FDA 21 CFR § 178.3570. The lubricant was developed for incidental contact with products and packaging materials in the food-processing, cosmetics, pharmaceutical or animal feed industries. The use of Klüberpaste UH1 84-201 can contribute to increase reliability of your production processes. We nevertheless recommend conducting an additional risk analysis, e.g. HACCP
Content: 25kg bucket

Benefits

Reliable adhesion to the friction point, also when subject to humidity
Good compatibility with high-alloy steels
ISO 21469 certified – supports the compliance with the hygienic requirements in your production. You will find further information about ISO Standard 21469 on our website www.klueber.com

Application

Klüberpaste UH1 84-201 is generally suitable for almost all friction points in the food-processing and pharmaceutical industries
As an assembly paste for transition and loose fits to prevent fretting corrosion
As a long-term lubricant for low-speed guide rails, hinges, rollers, chains, etc

Technical specifications

Article number	5113
NSF-H1 registration	136 305
Lower service temperature	-45 °C / -49 °F
Upper service temperature	120 °C / 248 °F
Colour space	white
NLGI grade, DIN 51818	1
Kinematic base oil viscosity, DIN 51562, part 01/ASTM D-445/ASTM D 7042, 40 °C (no polymer content)	approx. 200 mm²/s
Kinematic base oil viscosity, DIN 51562, part 01/ASTM D-445/ASTM D 7042, 100 °C (no polymer content)	approx. 22 mm²/s
Corrosion inhibiting properties of lubricating greases, DIN 51802, (SKF-EMCOR), test duration: 1 week, distilled water	<= 1 corrosion degree
Friction coefficients screw test, screw M 10x30-8.8, DIN EN ISO 4017, black and nut M 10-8, DIN EN ISO 4032, polished, averaged thread friction coefficient (first-time tightening)	0.1
Friction coefficients screw test, screws M 10x30-8.8, DIN EN ISO 4017, black and nut M 10-8, DIN EN ISO 4032, bright, averaged head friction coefficient (first-time tightening)	0.1
Friction coefficients screw test, screw M 10x30-8.8, DIN EN ISO 4017, black and nut M 10-8, DIN EN ISO 4032, polished, standard deviation thread friction coefficient (first-time tightening)	0.011
Friction coefficients screw test, screw M 10x30-8.8, DIN EN ISO 4017, black and nut M 10-8, DIN EN ISO 4032, polished, standard deviation head friction coefficient (first-time tightening)	0.015
Four-ball tester, welding load, DIN 51350 pt. 04	>= 3 000
Water resistance, DIN 51807 pt. 01, 3 h/90 °C, rating	<= 1 - 90
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	36 months
