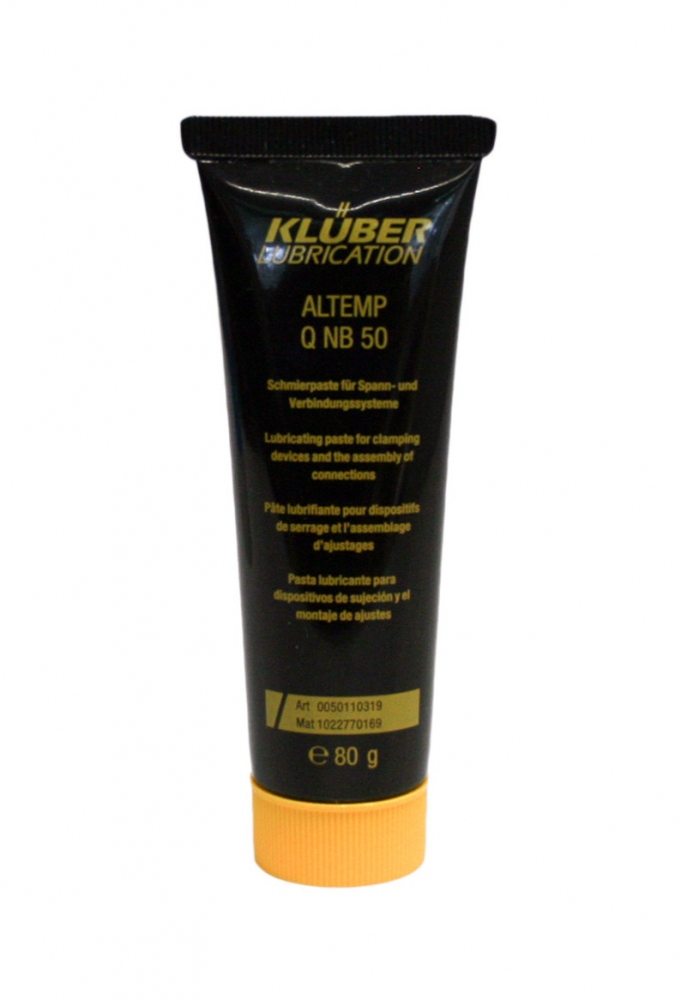

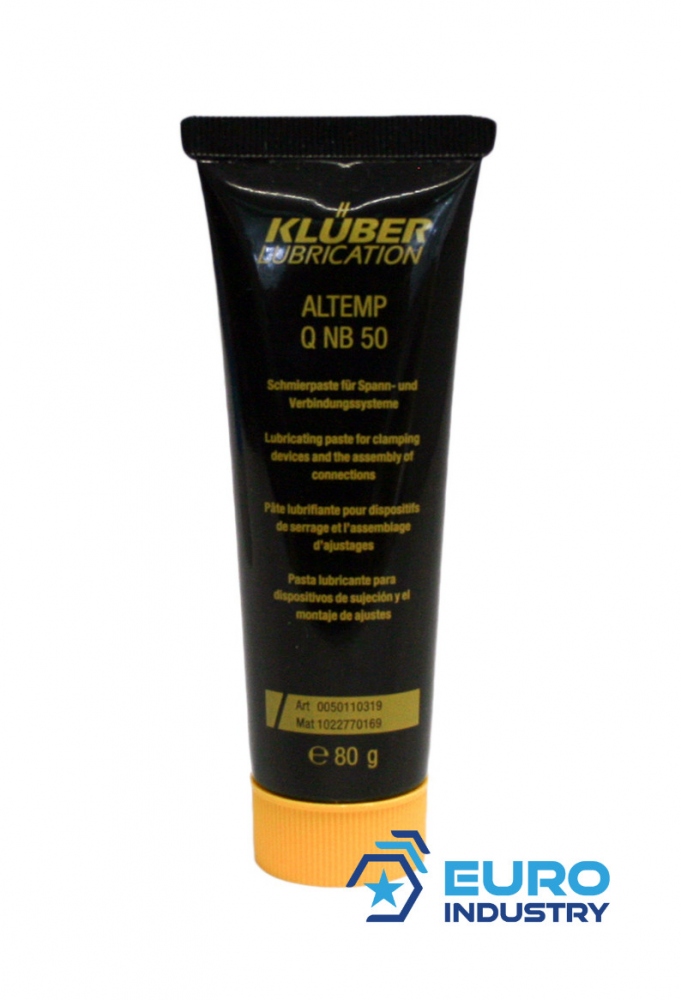

Klüber ALTEMP Q NB 50 Lubricating and assembly paste 80g

Klüber ALTEMP Q NB 50 Lubricating and assembly paste 80g

€ 47.54 47.54 incl. VAT (39.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

Manufacturer: KLUBER

Country of origin: BE/0017

Customs tariff number: 34031980

Weight per piece: 100 g

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

five + eight = ?

( Examples: two + three = 5, three - five = -2 )

Lubricating and assembly paste

ALTEMP Q NB 50 is a white/beige lubricating paste containing a mineral base oil, a barium complex soap and inorganic solid lubricants.
Besides its application as a universal assembly paste, this product offers benefits especially in friction points with small to minimum motion under high static and dynamic loads.
Content: 80g tube
Available in 80g tube, 600g cartridge, 750g can, 30kg bucket

Benefits for your application:

Low lubricant costs for initial and relubrication due to long service life of water- and media-resistant product
Good wear and corrosion protection helps reduce assembly forces and screw torques and prevents tribo- and fretting corrosion
High pressure absorption capacity enables constant clamping forces and consequently ensures properly fixed tools or workpieces in machine tool chucks

Application:

ALTEMP Q NB 50 can be used for the assembly of frictional connections, e.g. annular springs or split taper sleeves, and positive connections, e.g. bearing seats, profiled guides, etc.
The product has proven particularly successful in the lubrication of clamping chucks. High precision and constant clamping forces are essential requirements in chucks. Any decrease of the clamping force may cause tools or workpieces to become loose.
ALTEMP Q NB 50 improves the sliding behavior of moving chuck components, enables constant clamping forces and may therefore be used in all types of chucks, such as scroll, cam and spiral chucks. It prevents stick-slip and protects against triboand fretting corrosion in frictional or positive connections. Furthermore, ALTEMP Q NB 50 is resistant to water and media, e.g. against cooling lubricants.

Application notes:

Clean and degrease the surfaces thoroughly. Then apply the paste in a thin, coherent layer by means of a brush or cloth that does not fray (do not rub in). ALTEMP Q NB 50-Spray can be used to facilitate application.

Product data:

Article number	005011
Lower service temperature	-15 °C / 5 °F
Upper service temperature	150 °C / 302 °F
Chemical composition	solid lubricant
Chemical composition, thickener	barium complex soap
Chemical composition, type of oil	mineral oil
Texture	almost homogeneous
Texture	fibrous
Color space	white
Worked penetration, DIN ISO 2137, 25 °C, lower limit value	250 x 0.1 mm
Worked penetration, DIN ISO 2137, 25 °C, upper limit value	270 x 0.1 mm
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C	approx. 46 mm²/s
Copper corrosion, DIN 51811, (lubricating grease), 24h/100°C	1 - 100 corrosion degree
Corrosion inhibiting properties of lubricating greases, DIN 51802, (SKFEMCOR), test duration: 1 week, distilled water	<= 1 corrosion degree
Four-ball tester, welding load, DIN 51350 pt. 04	>= 4 000 N
Shear viscosity at 25 °C, shear rate 300 s-1, equipment: rotational viscometer, lower limit value	7 000 mPas
Shear viscosity at 25°C, shear rate 300 s-1, equipment:rotational viscometer, upper limit value	13 000 mPas
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	24 months
