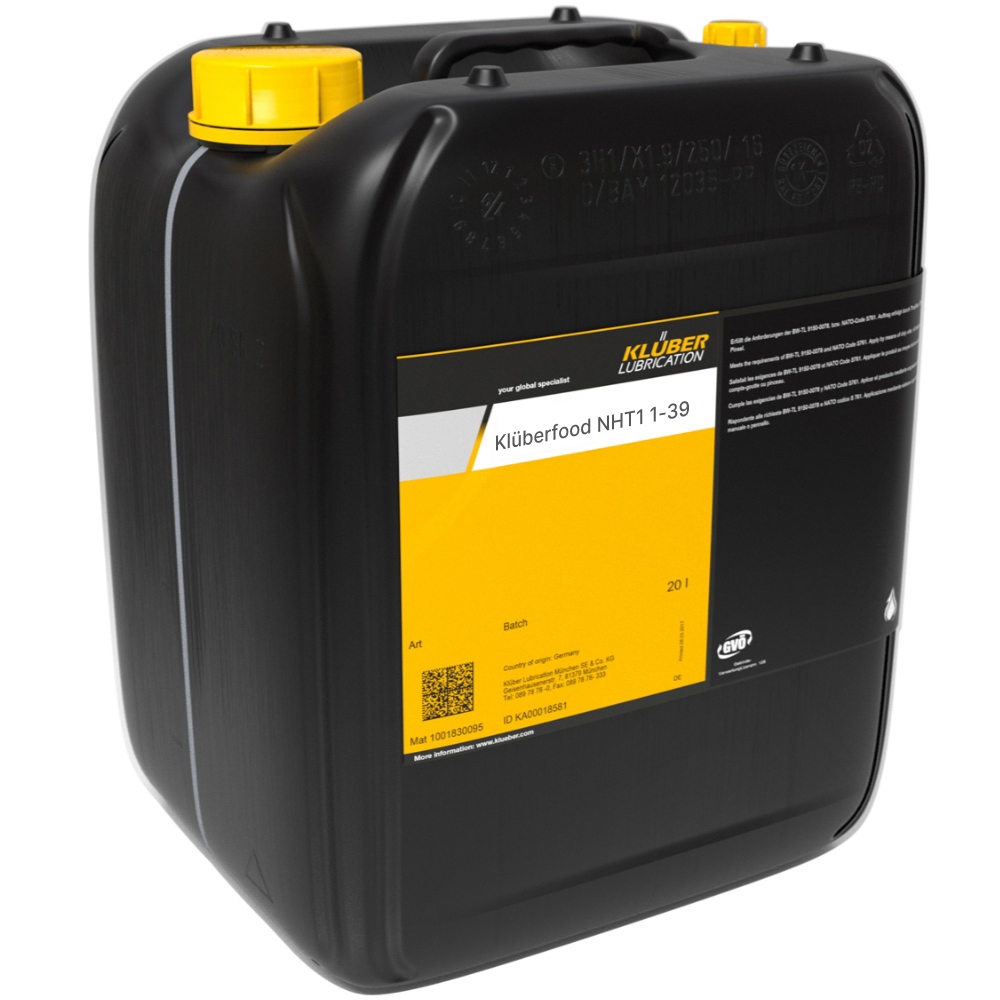

Klüberfood NHT1 1-39 Heat transfer oil for the food industry 20L

Klüberfood NHT1 1-39 Heat transfer oil for the food industry 20L

pics/Kluber/Copyright EIS/canister/Klüberfood NHT1 1-39/klueberfood-nht-1-1-39-heat-transfer-oil-for-food-industry-20-l-canister-01.jpg

€ 709.18 709.18 incl. VAT (595.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: KLUBER

Country of origin: DE/0004

Customs tariff number: 34039900

Weight per piece: 20.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

six + two = ?

( Examples: two + three = 5, three - five = -2 )

Klüberfood NHT1 1-39 is heat transfer fluid (ISO 6743-12 QC, NSF H1 / HT1) for closed-loop heat transfer systems in the food-processing and pharmaceutical industries. It is based on highly refined hydrotreated mineral oil (API group II) and offers very high thermal stability with low vapour pressure.

Pack size: 20 L canister
Also available in: 200 L drum

Applications

Closed-loop heat transfer systems
Food-processing industry
Pharmaceutical industry
Textile industry
Chemical industry
Automotive industry
Asphalt industry
Cement industry
Wood industry

Specifications and approvals

ISO 6743-12 QC
NSF H1 / HT1 registration number 156394
ISO 21469 certification

Characteristics

High process reliability
Highly refined paraffinic base oil
Extended oil change intervals achievable
High thermal stability
Reduced maintenance efforts
Dependable operation
Low vapour pressure helps reduce residue formation
Compatible with common heat transfer fluids
Oil analysis every 6 months is highly recommended for reliable and efficient operation

Technical specification

Manufacturer no.	0290990766
Composition, type of oil	Hydrotreated mineral oil (API group II)
Maximum film temperature	340 °C
Minimum operating temperature, 20 mPas	55 °C
Minimum start-up temperature, 300 mPas	5 °C
Service temperature, upper limit	310 °C
Classification	Q, ISO 6743-12 QC
NSF registration number	156394
Density at 15.6°C	Approx. 0.86 g/cm³
Flash point	≥ 216 °C
Vapour pressure at 290°C	Approx. 30 hPa
Kinematic viscosity at 40°C	Approx. 41 mm²/s
Minimum shelf life	Approx. 60 months

Product description

Klüberfood NHT1 1-39 was developed for closed heat transfer systems and offers very high thermal stability. Compared to standard mineral oils, this heat transfer fluid is based on highly refined hydrotreated heavy paraffinics, which improves thermal stability. Due to its negligible vapour pressure, reactions with air in vented expansion tanks are greatly reduced, helping to limit degradation products and deposit build-up in the system.

Application notes

Klüberfood NHT1 1-39 can be applied in new systems without prior cleaning, except when required for reasons of product quality. It is compatible with common heat transfer fluids. The start-up procedure or cleaning process should be done in compliance with the documentation of the manufacturer of the heat transfer system. In the presence of inert gas, the operating time of this fluid may be considerably extended.

Klüberfood NHT1 1-39, Kluberfood NHT1 1-39, Klüberfood NHT1 1 39

Information on product safety (Manufacturer, Contact)

KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com

klueberfood-nht-1-1-39-tds-datasheet.pdf (495.00 KB)
