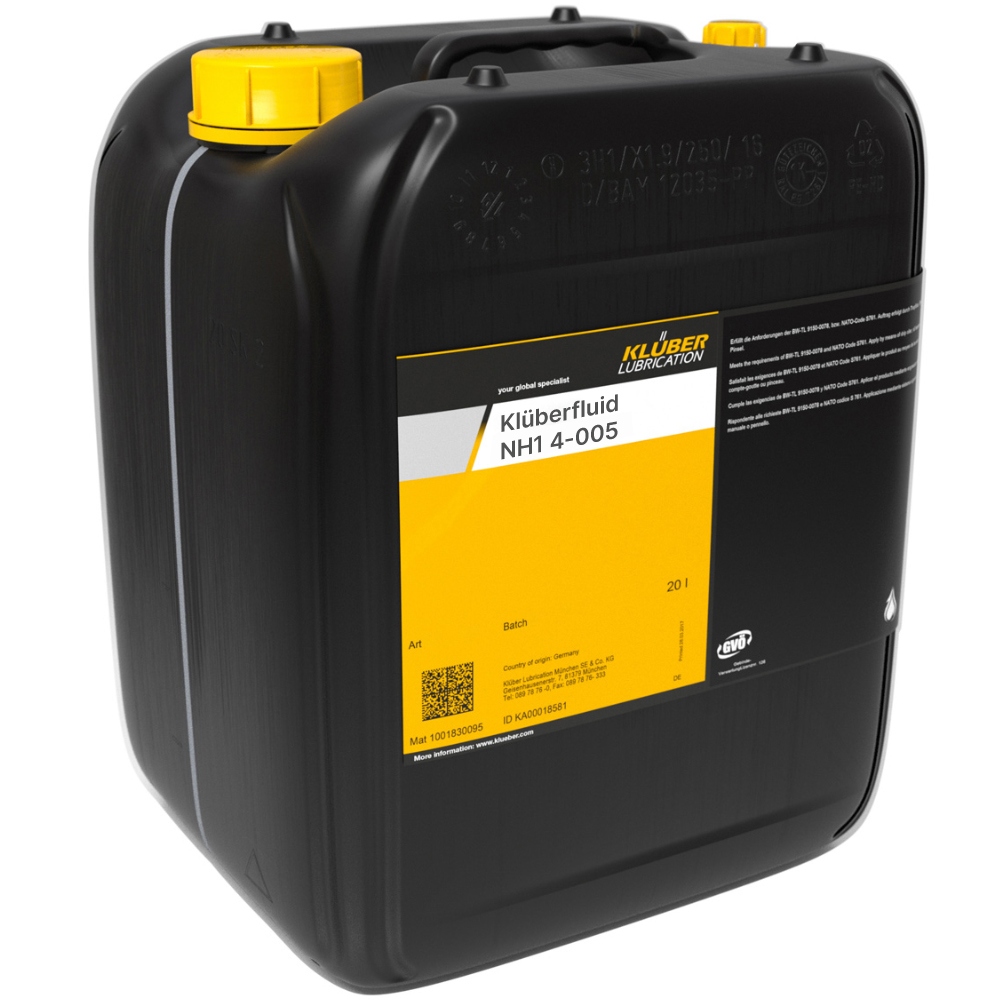

Klüberfluid NH1 4-005 Synthetic barrier fluid for mechanical seals 20L

Klüberfluid NH1 4-005 Synthetic barrier fluid for mechanical seals 20L

€ 892.44 892.44 incl. VAT (749.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

Manufacturer: KLUBER

Country of origin: BE/0017

Customs tariff number: 39029090

Weight per piece: 20.0 kg

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

seven - three = ?

( Examples: two + three = 5, three - five = -2 )

Klüberfluid NH1 4-005 is based on a synthetic hydrocarbon oil and was developed for the lubrication of mechanical seals operating under various conditions in the chemical and pharmaceutical industries.
Klüberfluid NH1 4-005 is NSF H1 registered and therefore in compliance with FDA 21 CFR § 178.3570. The lubricant was developed for incidental contact with products and packaging materials in the food-processing, cosmetics, pharmaceutical or animal feed industries.
Temperature range: -55 °C to 150 °C
Content: 20 l canister
Available in 1 l can, 200 l barrel

Benefits for your application

No build-up of deposits if the product is used according to the intended purpose in mechanical seals due to the advanced synthetic oil formulation
ISO 21469 certified - supports the compliance with the hygienic requirements in your production plant. You will find further information on ISO Standard 21469 on our website.

Application

Klüberfluid NH1 4-005 can be used as a barrier fluid in mechanical seals operating under inert gas conditions. Mechanical seals have been used in mixers, driers, mills, kneaders, reactors and pumps in the chemical and the pharmaceutical industry for many years.
Klüber Lubrication offers a range of oils that were especially developed for use as a barrier medium in mechanical seals. The more the seal is stressed in terms of pressure, speed and heat, the lower should the oil's viscosity be. For naturally circulating barrier fluids, the selected oil viscosity is normally approx. 5 mm²/s, as is the case with Klüberfluid NH1 4-005.

Technical specifications

Article number	0290660766
Composition, type of oil	Synthetic hydrocarbon oil
Appearance	Clear
Colour space	Colourless
Service temperature, lower limit	-55 °C
Service temperature, upper limit, inert gas	150 °C
NSF H1 registration number	143373
Flash point, DIN EN ISO 2592, Cleveland open cup	≥ 150 °C
Kinematic viscosity, DIN EN ISO 3104 / DIN 53000-1, based on standard / ASTM D445 / ASTM D7042, 100°C	approx. 1.7 mm²/s
Kinematic viscosity, DIN EN ISO 3104 / DIN 53000-1, based on standard / ASTM D445 / ASTM D7042, 40°C	approx. 5 mm²/s
Pour point, DIN ISO 3016, ASTM D97, ASTM D5950, ASTM D7346	≤ -60 °C
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	60 months

Signal word: Danger.

P301 + P310 IF SWALLOWED: Immediately call a POISON CENTER/doctor.
P304 + P340 + P312 IF INHALED: Remove person to fresh air and keep comfortable for breathing. Call a POISON CENTER/doctor if you feel unwell.
P331 Do NOT induce vomiting.

Information on product safety (Manufacturer, Contact)

KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
