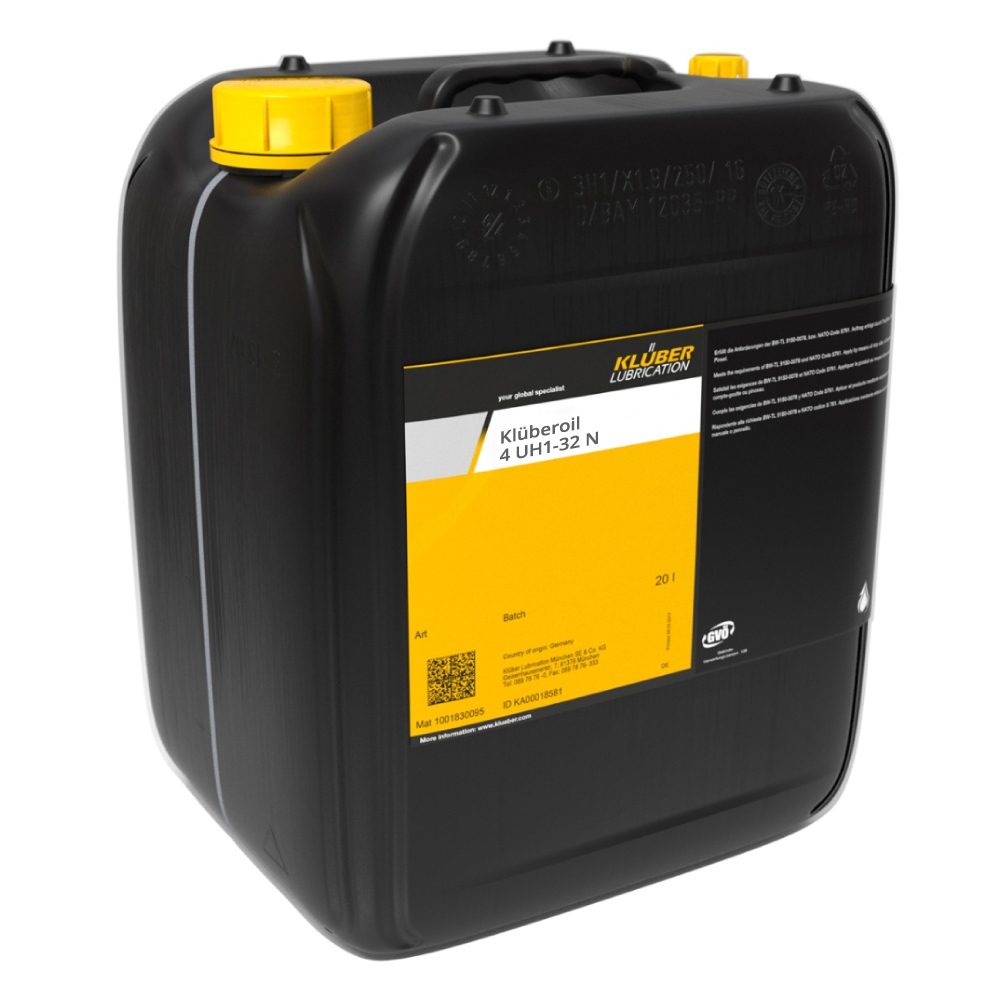

Klüberoil 4 UH1-32 N Synthetic gear oil for food industry 20l

Klüberoil 4 UH1-32 N Synthetic gear oil for food industry 20l

€ 1367.31 1,367.31 incl. VAT (1,149.00 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

Manufacturer: KLUBER

Country of origin: AT/0038

Customs tariff number: 34039900

Weight per piece: 17.7 kg

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

zero + three = ?

( Examples: two + three = 5, three - five = -2 )

Klüberoil 4 UH1 N is a synthetic high-performance gear and multipurpose oil based on polyalphaolefin satisfying the growing requirements and increasing power density of modern gears.
Klüberoil 4 UH1 N is based on high-grade raw materials and advanced additives, enabling maximum performance in the lubrication of all gear components.
Volume: 20l canister
Also available in: 1l canister , 200l drum

Klüberoil 4 UH1 N was developed for the lubrication of spur, bevel and worm gears subject to high loads, bearings, spindles, joints as well as lifting, drive and transport chains.

Klüberoil 4 UH1 N can be used for immersion, immersion circulation and injection lubrication. The use of drip-feed oilers, brushes, oil cans or suitable automatic lubricating systems is also possible.
When using automatic lubricating systems, please note the manufacturer's instructions regarding the maximum permissible viscosity. The low-viscosity varieties are also used for oil mist lubrication.

NSF-H1 registration	121 152
Upper service temperature	120 °C / 248 °F
Density, based on DIN 51757) at 15 °C	approx. 844 kg/m³
Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C	approx. 32 mm²/s
Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C	approx. 6 mm²/s
ISO viscosity grade, DIN ISO 3448	32
Viscosity index, DIN ISO 2909	>= 135
Foam test, ASTM-D 892, ISO 6247, sequence I/24 °C	<= 100/10 ml
Foam test, ASTM-D 892, ISO 6247, sequence II/ 93.5 °C	<= 100/10 ml
Foam test, ASTM D 892, ISO 6247, sequence III/24°C	<= 100/10 ml
Flash point, DIN EN ISO 2592, Cleveland, open-cup apparatus	>= 200 °C
Pour point, DIN ISO 3016	<= -39 °C
Ageing properties, ASTM D 2893, increase in viscosity	<= 6 %
Copper corrosion, DIN EN ISO 2160, 24 h/100°C	1 - 100 corrosion degree
Anticorrosive properties on steel, DIN ISO 7120, method A, steel, 24 h/60 °C	no rust corrosion degree
FZG scuffing test, DIN ISO 14635-1, A/8.3/90, scuffing load stage	>= 12
FAG FE8 rolling bearing test, DIN 51819-3, D 7,5/80-80, wear of rolling element	<= 30 mg
FAG FE8 rolling bearing test, DIN 51819-3, D 7,5/80-80, wear of cage	<= 200 mg
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	36 months
