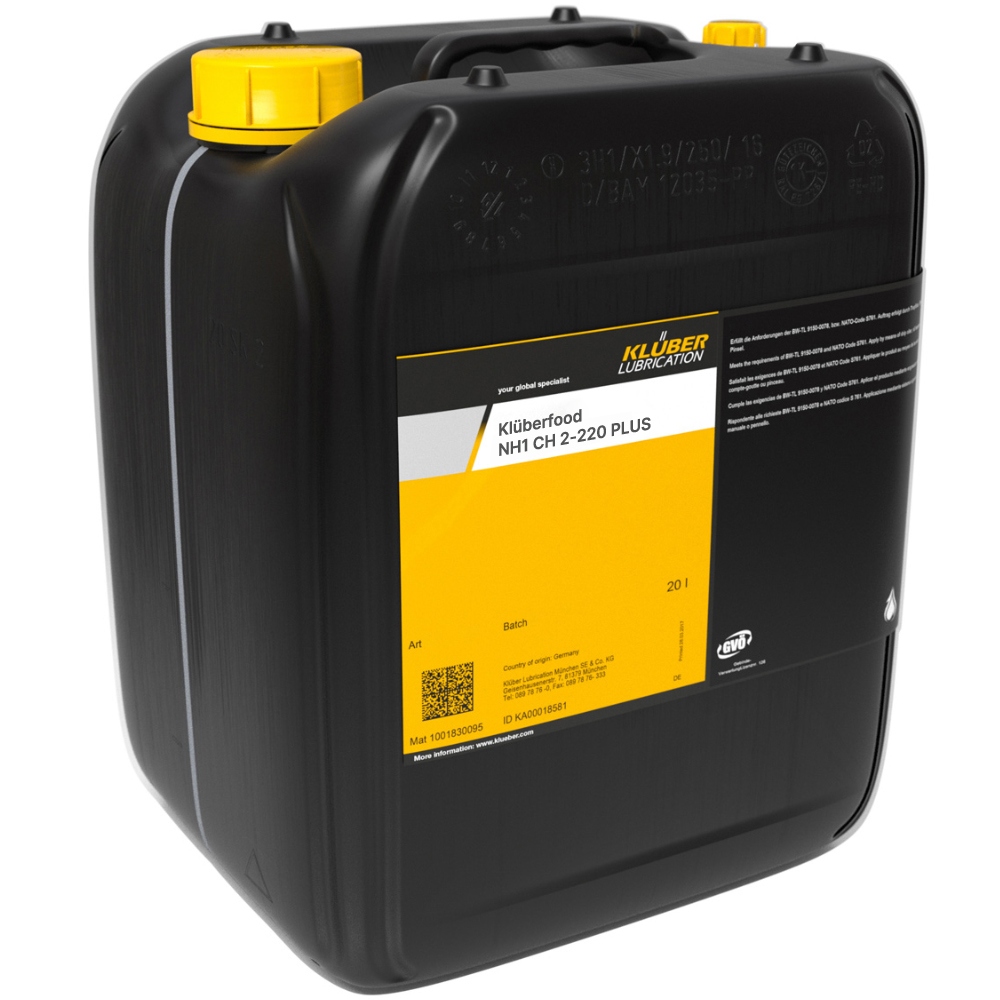

Klüberfood NH1 CH 2-220 PLUS High-temperature chain oil 20L canister

Klüberfood NH1 CH 2-220 Plus High-temperature chain oils for the food-processing industry | N° 002163

• The Klüberfood NH1 CH 2 Plus oil series comprises synthetic high-temperature chain oils incorporating special base oils ensuring reliable lubrication at high temperatures.
• Owing to special additives, these oils offer extremely good wear protection.
• They show low evaporation losses and high oxidation stability for optimised relubrication intervals and reduced oil quantities.
• Pack size: 20 l canister
• Also available in: 1 l can, 5 l canister, 200 l drum

Benefits for your application

• Reduced oil consumption due to lower evaporation losses compared to other ester oils commonly used in high-temperature chain applications in the food-processing industry
• Extended chain life through enhanced wear protection, leading to lower life cycle costs
• NSF-H1 registration for increased process reliability
• ISO 21469 certified - supports compliance with the hygienic requirements in your production plant. You will find further information on ISO Standard 21469 on our website www.klueber.com

Application

• The Klüberfood NH1 CH 2 Plus oil series has been designed for lubrication of all drive, control and transport chains subject to high temperatures and loads.
• They are particularly suitable for use in chain applications, in beverage can decorating, bakery ovens, as well as other high-temperature chain applications in the food industry.
• These oils are suitable for chain designs both with and without elastomer O-rings for slow, medium and high-speed chain applications such as those found in the beverage can manufacturing industry.

Application notes

Klüberfood NH1 CH 2 Plus oils can be applied by means of brush, gravity oil feed or automatic lubrication systems. When applied via automatic lubrication systems, please observe the maximum viscosity specified by the equipment manufacturer. In view of the many different paint systems and testing criteria, paint compatibility tests should be performed by the user prior to series application. In case of contact with elastomers and plastics their resistance to products of the Klüberfood NH1 CH 2 Plus oil series should be checked. The colour of the product may change during storage with no performance reduction.

Technical specifications

Manufacturer number	0021630766
Composition, type of oil	ester oil
Colour	yellow
Service temperature, lower limit, °C	-20
Service temperature, upper limit, °C	250
NSF H1 registration number	146427
Density, DIN 51757, 20°C, g/cm³	approx. 0.94
ISO viscosity grade, DIN ISO 3448	ISO VG 220
Kinematic viscosity, DIN EN ISO 3104 / DIN 53000-1 / ASTM D445 / ASTM D7042, 100°C, mm²/s	approx. 21
Kinematic viscosity, DIN EN ISO 3104 / DIN 53000-1 / ASTM D445 / ASTM D7042, 40°C, mm²/s	approx. 220
Viscosity index, DIN ISO 2909	≥ 105
Minimum shelf life, in a dry, frost-free place, unopened original container, approx., months	36

Product information

Products of the Klüberfood NH1 CH 2 Plus oil series are NSF H1- registered and therefore comply with FDA 21 CFR § 178.3570. The lubricants were developed for incidental contact with products and packaging materials in the food-processing, cosmetics, pharmaceutical or animal feed industries. The use of the Klüberfood NH1 CH 2 Plus oil series can contribute to increased reliability of your production equipment and processes. We nevertheless recommend conducting an additional risk analysis, e.g. HACCP.
Klüberfood NH1 CH 2 220 PLUS, Klüberfood NH1CH 2-220 PLUS



Information on product safety (Manufacturer, Contact)

KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com
