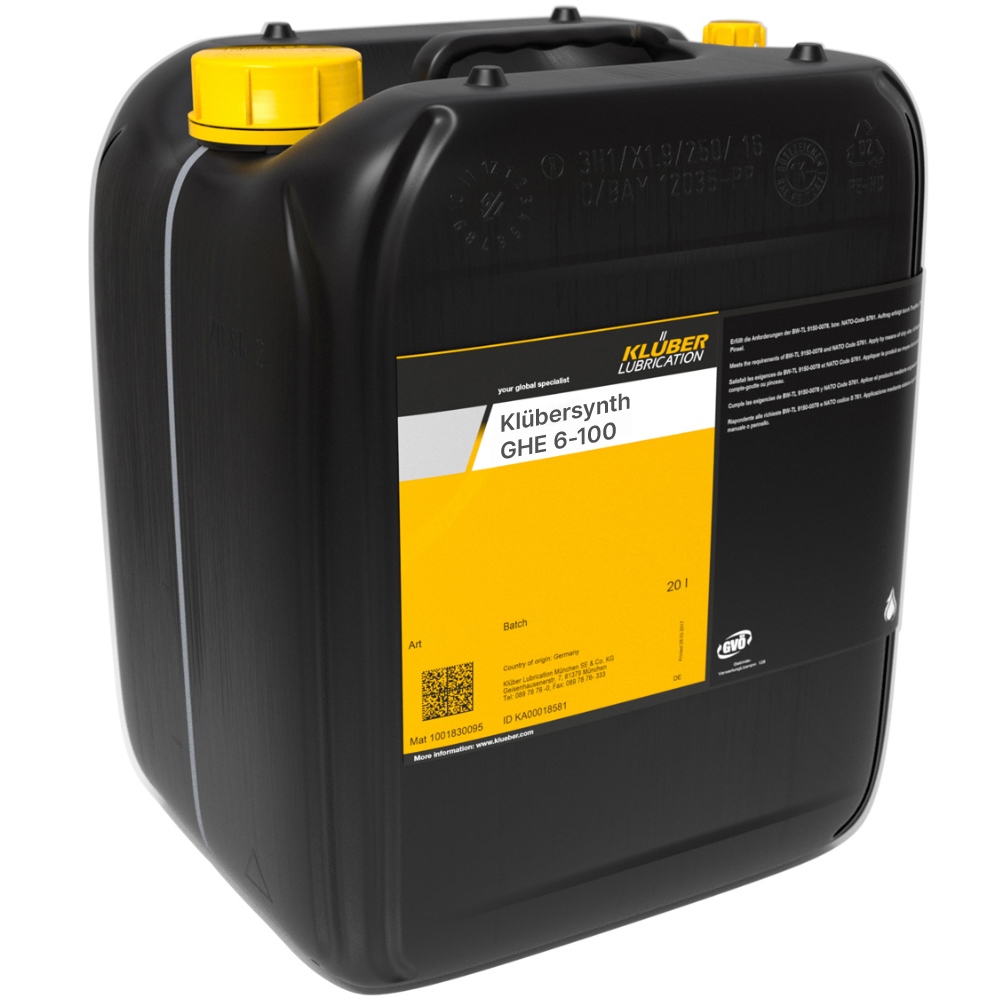

Klübersynth GHE 6-100 Synthetic gear and circulating oil 20L canister

Klübersynth GHE 6-100 Synthetic gear and circulating oil 20L canister

pics/Kluber/Copyright EIS/canister/kluebersynth-ghe-6-100-synthetic-gear-and-circulating-oil-20l-canister-01.jpg

€ 737.74 737.74 incl. VAT (619.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: KLÜBER

Country of origin: BE/0017

Customs tariff number: 34039900

Weight per piece: 21.9 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

three - six = ?

( Examples: two + three = 5, three - five = -2 )

Klübersynth GHE 6-100 Synthetic gear and circulating oil (ISO VG 100) | N° 012278

Klübersynth GHE 6 oils are polyglycol-based gear and circulating oils particularly resistant to ageing and oxidation offering high scuffing load capacity.
Owing to their polyglycol base oil, Klübersynth GHE 6 oils have a good viscosity-temperature and excellent high-temperature behaviour.
Temperature range: -35°C to +160°C
Size: 20 canister
Also available in: Canister 5 l, Drum 200 l

Benefits for your application

Klübersynth GHE 6 oils offer much longer service life than mineral oils due to the excellent ageing and oxidation resistance of the synthetic base oil; thus maintenance intervals can be extended and in certain cases even lifetime lubrication is possible.
Its high scuffing load resistance offers good scuffing protection even at high peak loads.
The good wear protection of both gears and rolling bearings prevents premature component failure, leading to lower maintenance and repair costs.
The optimum friction behaviour of the polyglycol base oil reduces power losses and improves efficiency.
The excellent viscosity-temperature behaviour supports the formation of a separating lubricating film even at elevated temperatures.
Seals made of 72 NBR 902, 75 FKM 585 and 75 FKM 170055 are resistant to Klübersynth GHE 6 oils. Leakage and contamination are prevented.
Approved by Flottweg Separation Technology

Applications

Klübersynth GHE 6 oils were specially developed for the lubrication of spur, bevel, planetary and worm gears.
Klübersynth GHE 6 oils are also used for the lubrication of rolling and plain bearings as well as all kinds of toothed couplings

Application notes

Klübersynth GHE 6 oils can be applied by immersion, immersion/circulation and injection.
Klübersynth GHE 6 oils are not miscible with mineral oils and synthetic hydrocarbons. Prior to switchover, lubrication points should be cleaned, or gears or enclosed systems be flushed with Klübersynth GHE 6.
Klübersynth GHE 6 oils are neutral towards virtually all nonferrous metals.

Technical specifications

Article number	0122780766
Service temperature, lower limit	-35 °C
Service temperature, upper limit	160 °C
Density, DIN 51757, 15°C	1043 kg/m³
Flash point, DIN EN ISO 2592, Cleveland open cup	≥ 250 °C
Foam test, ISO 6247 / ASTM D892, 24°C, sequence I	≤ 100/10 ml
Foam test, ISO 6247 / ASTM D892, 24°C, sequence III	≤ 100/10 ml
Foam test, ISO 6247 / ASTM D892, 93.5°C, sequence II	≤ 100/10 ml
ISO viscosity grade, DIN ISO 3448	ISO VG 100
Kinematic viscosity, DIN EN ISO 3104 / DIN 53000-1, based on standard / ASTM D445 / ASTM D7042, 100°C	approx. 20 mm²/s
Kinematic viscosity, DIN EN ISO 3104 / DIN 53000-1, based on standard / ASTM D445 / ASTM D7042, 20°C	approx. 270 mm²/s
Kinematic viscosity, DIN EN ISO 3104 / DIN 53000-1, based on standard / ASTM D445 / ASTM D7042, 40°C	approx. 100 mm²/s
Viscosity index, DIN ISO 2909	≥ 190
Copper corrosion, DIN EN ISO 2160, 24 h, 100°C	1 - 100 - 24 corrosion degree
Steel corrosion, DIN ISO 7120 / ASTM D665, method A, 24 h, 60°C	rust-free
Pour point, DIN ISO 3016, ASTM D97, ASTM D5950, ASTM D7346	≤ -40 °C
FAG FE8 rolling bearing test, DIN 51819-3, D-7.5 / 80-80, wear of cage	≤ 200 mg
FAG FE8 rolling bearing test, DIN 51819-3, D-7.5 / 80-80, wear of rolling elements	≤ 30 mg
FZG scuffing test, DIN ISO 14635-1, A / 8.3 / 90, failure load stage	≥ 14
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	36 months

Hazard Statements (CLP)

Signal word: Danger.

Hazard Statements (H-phrases)

H411: Toxic to aquatic life with long-lasting effects.

Precautionary Statements (P-phrases)

Prevention:

P273: Avoid release to the environment.

Response:

P391: Collect spillage.

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,

Information on product safety (Manufacturer, Contact)

KLÜBER LUBRICATION MÜNCHEN GMBH & CO. KG, Geisenhausenerstraße 7, 81379 München, GERMANY, +49 89 7876 0, [email protected], www.klueber.com

kluebersynth-ghe-6-synthetic-gear-and-circulating-oil-tds-datasheet-en.pdf (345.23 KB)
