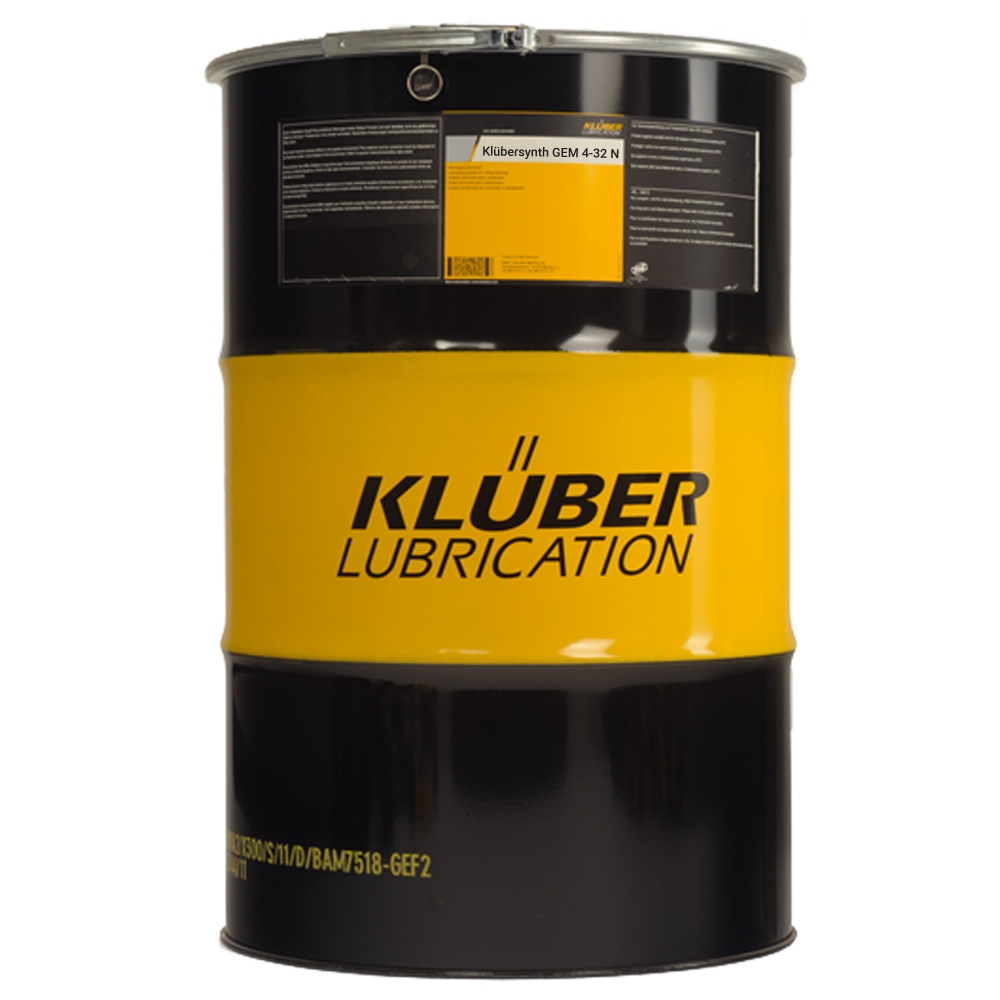

Klübersynth GEM 4-32 N Synthetic high-performance oil 200L barrel

Klübersynth GEM 4-32 N Synthetic high-performance gear and multipurpose oil with KlüberComp Lube Technology

• ISO VG 32 acc. to DIN ISO 3448
• Klübersynth GEM 4 N is a synthetic high-performance gear and multipurpose oil based on polyalphaolefin satisfying the growing requirements and increasing power density of modern gears. Klübersynth GEM 4 N includes KlüberComp Lube Technology*, i.e. it is based on especially high-grade raw materials and
  advanced additives, enabling maximum performance in the lubrication of all gear components.
• Klübersynth GEM 4 N clearly exceeds CLP requirements according to DIN 51517-3. Corresponding gears can be
  switched to Klübersynth GEM 4 N without prior consultation with the gear manufacturer provided the general application notes are observed.
• Klüberoil GEM 4 N offers high scuffing load capacity. Gears are sufficiently protected against scuffing even at extremely high peak loads, vibrations or oscillations. The excellent wear protection of both gears and rolling bearings ensures that the service life calculated for the lubricated components is achieved, leading to lower maintenance and repair costs. The oil's high micropitting resistance of GFT ≥ 10 according to FVA
  54/7 offers sufficient protection to gears that are subject to high loads and would normally be susceptible to this type of damage.
• Klübersynth GEM 4 N offers a much longer service life than mineral oils due to the excellent ageing and oxidation
  resistance of the selected raw materials; thus service intervals can be extended and maintenance costs reduced. The product's low foaming tendency and anti-corrosive properties enable problem-free gear operation. Freudenberg seals made of 72 NBR 902, 75 FKM 585, 75 FKM 260466 and 75 FKM 170055 are resistant to Klübersynth GEM 4 N. Leakage and oil contamination are prevented.
• The excellent viscosity-temperature behaviour supports the formation of a sufficient lubricant film across a wide service temperature range, even at elevated and high temperatures. Therefore, a single viscosity grade can cover both low and high temperatures in many applications.
• The optimised friction behaviour enabled by the carefully selected base oils reduces power loss and improves gear efficiency.
• Klübersynth GEM 4 N is approved by SEW Eurodrive, Getriebebau Nord, Lenze, Moventas, Bonfiglioli, Rexnord,
  Hansen, Brevini, Stöber Antriebstechnik, ZAE Antriebssysteme, David Brown, FLSmidth MAAG Gears, etc.
• Klübersynth GEM 4-320 N is approved for use in wind power plants by Winergy, Moventas, ZF WP, Bosch Rexroth, ACCIONA ENERGY, and many more.
• By using Klübersynth GEM 4 N you can benefit from a number of advantages that will help you save costs easily and efficiently. We look forward to hearing from you.
• Temperature range: -50°C to +140°C
• Size: 200 L barrel
• Available in 20 L canister

Benefits for your application

• High scuffing protection
• Excellent wear protection for gears and rolling bearings
• Good shear stability for reliable lubricant film formation
• High micropitting resistance
• Excellent ageing and oxidation resistance
• Wide service temperature range due to good viscosity-temperature behaviour
• Low foaming tendency
• Energy savings due to optimised friction behaviour
• Good elastomer compatibility
• Approvals by numerous gear OEMs

Application

• Klübersynth GEM 4 N was specially developed for the lubrication of spur, bevel, hypoid and planetary gears that are subject to high loads. Such gears are frequently used in the wind, steel, mining and sugar industries. It is also used for the lubrication of standard worm gears as defined in DIN 3996.
• Klübersynth GEM 4 N can also be used for the lubrication of plain and rolling bearings, all kinds of toothed couplings, chains, guideways, joints, spindles and pumps, especially in applications where the equipment is exposed to elevated temperatures or pronounced temperature fluctuations.

Technical specifications
