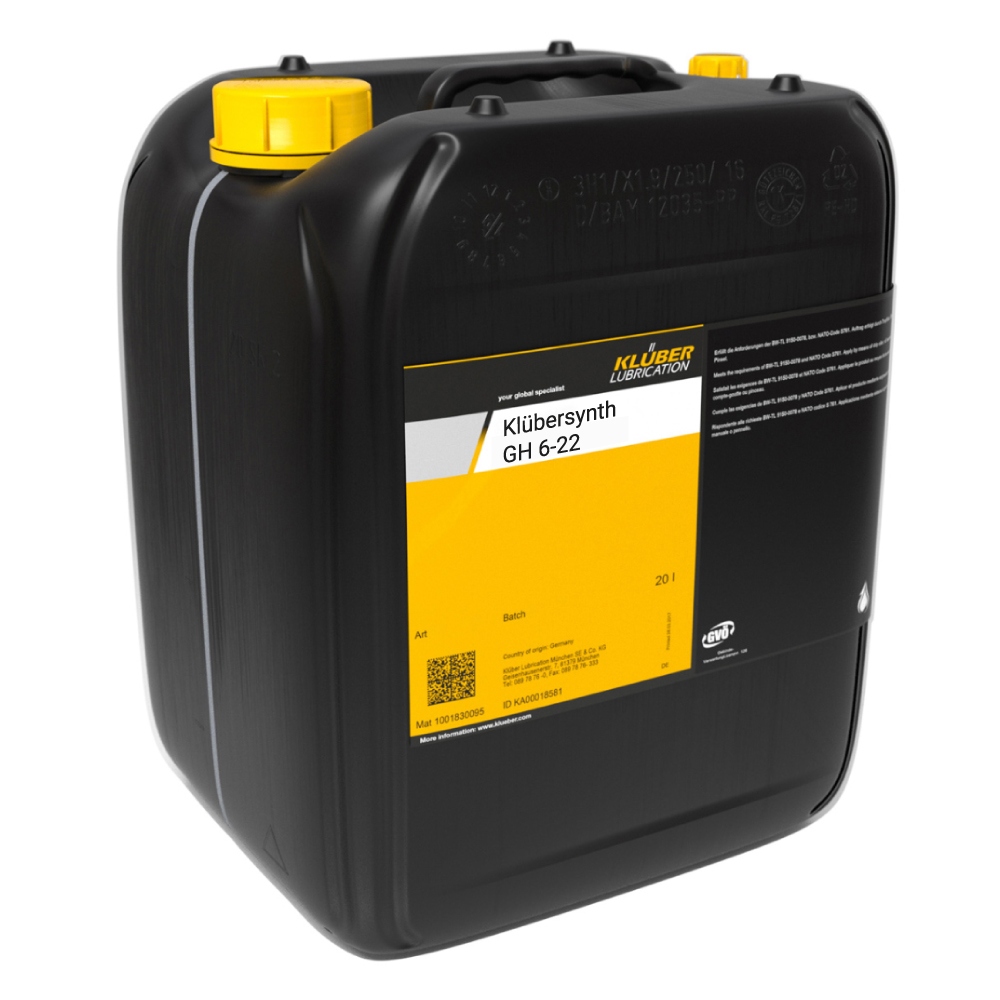

Klübersynth GH 6-22 Synthetic high-performance gear oil 20l canister

Klübersynth GH 6-22 Synthetic high-performance gear oil 20l canister

€ 540.83 540.83 incl. VAT (454.48 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

Manufacturer: KLUBER

Country of origin: AT/0038

Customs tariff number: 34039900

Weight per piece: 21.5 kg

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

four - four = ?

( Examples: two + three = 5, three - five = -2 )

Klübersynth GH 6 is a synthetic high-performance gear and high-temperature oil based on polyglycol satisfying the growing requirements and increasing power density of modern gears. It includes KlüberComp Lube Technology*, i.e. it is based on especially high-grade raw materials and advanced additives, enabling maximum performance in the lubrication of all gear components.
ISO viscosity grade: 22
Temperature range: -55°C to +160°C
Volume: Canister 20 l
Also available in: Drum 200 l

Application

Klübersynth GH 6 oil was especially developed for the lubrication of worm gears with steel/bronze or steel/grey cast iron pairings.
Klübersynth GH 6 oil is also used for the lubrication of bevel and spur gears, rolling and plain bearings as well as all types of toothed couplings, especially when exposed to high temperatures.
It can also be used for the lubrication of lifting, drive and transport chains.

Lower service temperature	-55°C / -67°F
Upper service temperature	160 °C / 320 °F
ISO viscosity grade, DIN ISO 3448	22
Density, based on DIN 51757) at 15 °C	ca. 1 025 kg/m³
Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 20 °C	ca. 54 mm²/s
Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C	ca. 22 mm²/s
Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C	ca. 5,3 mm²/s
Viscosity index, DIN ISO 2909	>= 150
Flash point, DIN EN ISO 2592, Cleveland, open-cup apparatus	>= 165 °C
Pour point, DIN ISO 3016	<= -55 °C
Foam test, ASTM-D 892, ISO 6247, sequence I/24 °C	<= 100/10 ml
Foam test, ASTM-D 892, ISO 6247, sequence II/ 93.5 °C	<= 100/10 ml
Foam test, ASTM D 892, ISO 6247, sequence III/24°C	<= 100/10 ml
Copper corrosion, DIN EN ISO 2160, 24 h/100°C	1 - 100 corrosion degree
Anticorrosive properties on steel, DIN ISO 7120, method A, steel, 24 h/60 °C	no rust corrosion degree
Ageing properties, ASTM D 2893, increase in viscosity	<= 6 %
FZG scuffing test, based on DIN ISO 14635-1, A/16.6/90, scuffing load stage	>= 12
FZG scuffing test, DIN ISO 14635-1, A/8.3/90, scuffing load stage	>= 14
API scuffing load capacity
FAG FE8 rolling bearing test, DIN 51819-3, D 7,5/80-80, wear of rolling element	< 5 mg
FAG FE8 rolling bearing test, DIN 51819-3, D 7,5/80-80, wear of cage	<= 200 mg
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	36 Monts
