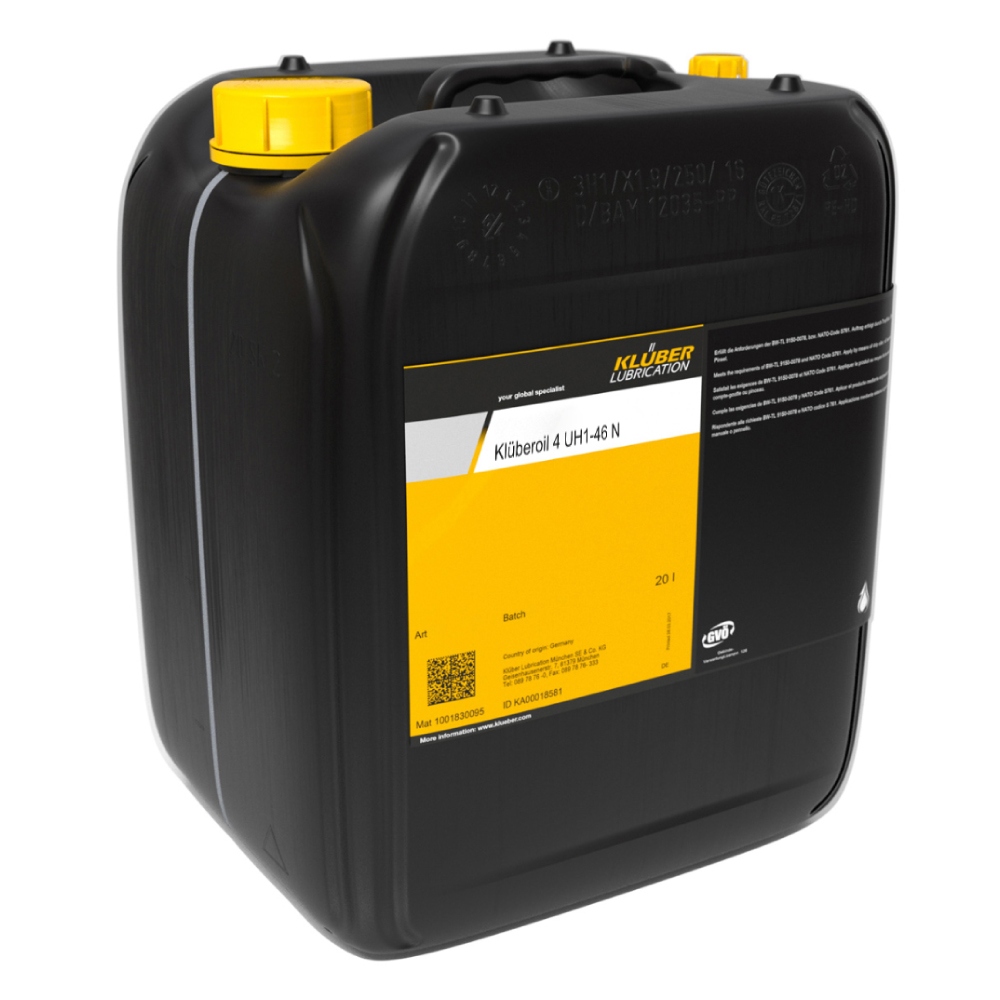

Klueberoil 4 UH1-46 N Synthetic gear and multipurpose oil 20L canister

Klüberoil 4 UH1-46 N Synthetic gear and multipurpose oil for the food-processing and pharmaceutical industries

• ISO viscosity grade (DIN ISO 3448) : 46
• Klüberoil 4 UH1-46 N is a synthetic high-performance gear and multipurpose oil based on polyalphaolefin satisfying the growing requirements and increasing power density of modern gears.
• Klüberoil 4 UH1-46 N is based on high-grade raw materials and advanced additives, enabling maximum performance in the lubrication of all gear components.
• Klüberoil 4 UH1-46 N is registered as NSF H1 for use in the foodprocessing and pharmaceutical industries and complies with FDA 21 CFR Sec 178.3570. It was developed for incidental contact with products and packaging materials in the foodprocessing, cosmetics, pharmaceutical or animal feed industries. The use of Klüberoil 4 UH1-68 N can contribute to increase reliability of your production processes. Nevertheless it is recommended to conduct an additional risk analysis, e.g. HACCP.
• Klüberoil 4 UH1 N is certified according to ISO 21469, thus supporting compliance with hygienic requirements of your production.
• Klüberoil 4 UH1 N from ISO VG 46 to 680 clearly exceeds CLP requirements according to DIN 51517-3. Corresponding gears can be switched to Klüberoil 4 UH1 N without prior consultation provided the general application notes are observed.
• Gears are sufficiently protected against scuffing even at extremely high peak loads, vibrations or oscillations, or if no running-in was performed. The good wear protection of both gears and rolling bearings ensures that the service life calculated for the lubricated components is achieved, leading to lower maintenance and repair costs.
• Klüberoil 4 UH1-46 N offers a much longer service life than mineral and white oils due to the excellent ageing and oxidation resistance of the selected raw materials; thus service intervals can be extended and maintenance costs reduced. In certain applications, even lifetime lubrication is possible. The product's low foaming tendency and anti-corrosive properties enable problem-free gear operation. Oil leakage leading to contamination is prevented due to the good compatibility with elastomers.
• The good viscosity-temperature behaviour supports the formation of a sufficient lubricant film across a wide service temperature range, even at elevated and high temperatures.
• Therefore, a single viscosity grade can cover both low and high temperatures in many applications.
• The optimised friction behaviour enabled by the carefully selected base oils reduces power loss and improves gear efficiency.
• Klüberoil 4 UH1-46 N is approved by SEW Eurodrive, Getriebebau Nord, Stöber Antriebstechnik, Lenze, Sumitomo, Bonfiglioli, Brevini, STM, Watt Drive, etc.
• By using Klüberoil 4 UH1 N you can benefit from a number of advantages that will help you save costs easily and efficiently.
• Volume: 20l canister
• Also available in: 1l canister, 200l barrel

Benefits for your application

• Registered as NSF H1 and certified according to ISO 21469
• High scuffing protection
• Good wear protection for gears and rolling bearings
• Good shear stability for reliable lubricant film formation
• Excellent ageing and oxidation resistance
• Wide service temperature range due to good viscosity-temperature behaviour
• Low foaming tendency
• Energy savings due to optimised friction behaviour
• Good elastomer compatibility
• Approved by numerous gear OEMs

Applications

• Klüberoil 4 UH1-46 N was developed for the lubrication of spur, bevel and worm gears subject to high loads, bearings, spindles, joints as well as lifting, drive and transport chains.

Viscosity selection

• When determining the oil viscosity for gear lubrication, the gear manufacturer's instructions take priority. Only for applications where manufacturer's instructions are not available, the suitable viscosity can be determined as laid down in the worksheet "Hints for Practice - selection of oil viscosity for gears". To determine the correct oil viscosity for bearings, please observe the bearing manufacturer's instructions.
• Due to the better viscosity-temperature behaviour of Klüberoil 4 UH1-68 N compared to mineral oils, the actual viscosity of the oil during operation differs and can be determined by means of the enclosed diagram.

Technical specifications
