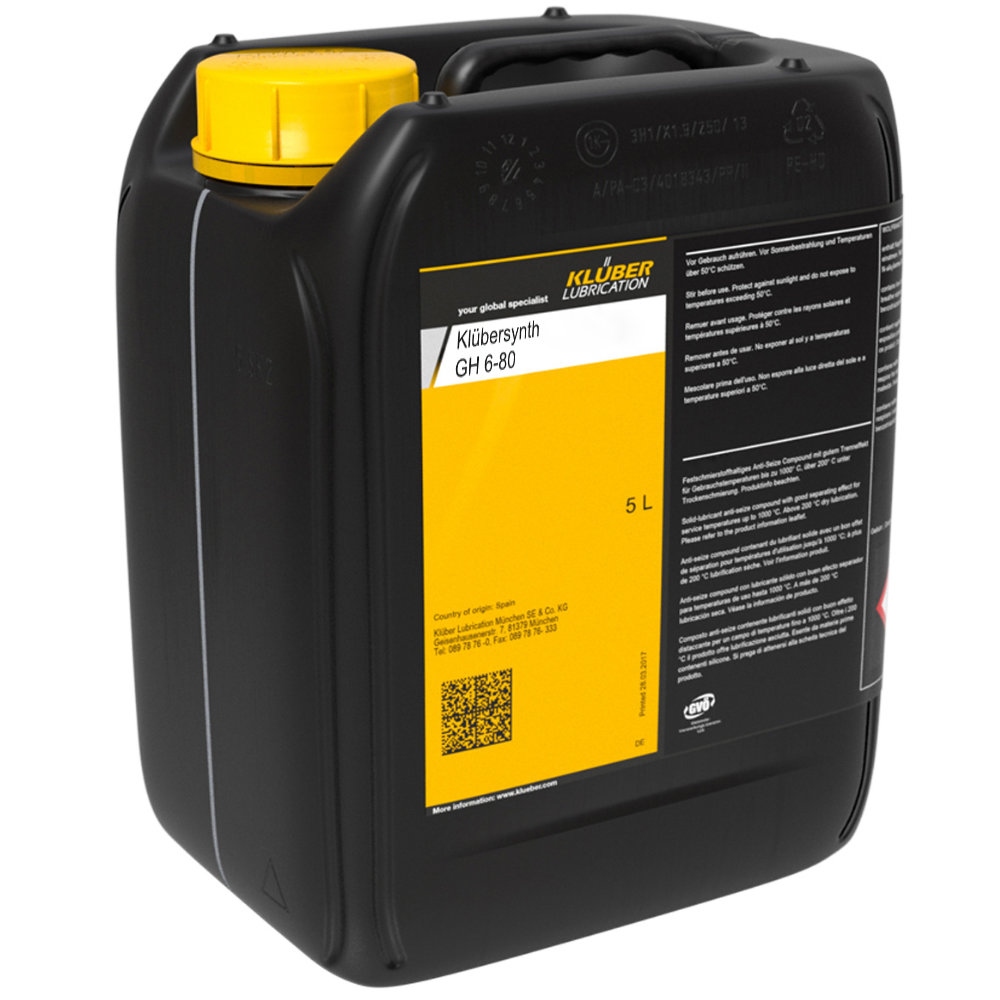

Klübersynth GH 6-80 High performance gear oil 5L canister
Klübersynth GH 6-80 High performance gear oil 5L canister
€ 220.09 220.09 incl. VAT (184.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: KLÜBER
Country of origin: BE/0017
Customs tariff number: 34039900
Weight per piece: 5.5 kg
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
Synthetic high-performance gear and high-temperature oil with KlüberComp Lube Technology
- Klübersynth GH 6 is a synthetic high-performance gear and high-temperature oil based on polyglycol satisfying the growing requirements and increasing power density of modern gears. It includes KlüberComp Lube Technology*, i.e. it is based on
especially high-grade raw materials and advanced additives, enabling maximum performance in the lubrication of all gear components. - Klübersynth GH 6 clearly exceeds CLP requirements according to DIN 51517-3. Corresponding gears can be switched to Klübersynth GH 6 without prior consultation with the gear manufacturer provided the general application notes are observed.
- Klübersynth GH 6 offers high scuffing load capacity of API GL-5 if ISO VG 220 or higher is selected. Gears are sufficiently protected against scuffing even at extremely high peak loads, vibrations or oscillations, or if no running-in was performed. The excellent wear protection of both gears and rolling bearings ensures that the service life calculated for the lubricated
components is achieved, leading to lower maintenance and repair costs.The oil's high micropitting resistance of GFT ≥ 10 according to FVA 54/7 (tested at 90, 60 and 40 °C) offers
sufficient protection to gears that are subject to high loads and would normally be susceptible to this type of damage. - Size: 5l canister
- Available in 5l canister, 20l canister
Benefits
- High scuffing protection
- Excellent wear protection for gears and rolling bearings
- Good shear stability for reliable lubricant film formation
- High micropitting resistance
- Optimised for the lubrication of worm gears
- Excellent ageing and oxidation resistance
- Wide service temperature range due to good viscosity-temperature behaviour
- Low foaming tendency
- Energy savings due to optimised friction behaviour
- Good elastomer compatibility
- Approvals by numerous gear OEMs
Application
- Klübersynth GH 6 oil was especially developed for the lubrication of worm gears with steel/bronze or steel/grey cast iron pairings.
- Klübersynth GH 6 oil is also used for the lubrication of bevel and spur gears, rolling and plain bearings as well as all types of toothed couplings, especially when exposed to high temperatures.
- It can also be used for the lubrication of lifting, drive and transport chains.
Application notes:
- Klübersynth GH 6 can be applied by means of immersion, immersion circulation or injection. The use of drip-feed oilers, brushes, oil cans or suitable automatic lubricating systems is also possible. When using automatic lubricating systems, please note the manufacturer's instructions regarding the maximum permissible viscosity. The low-viscosity varieties are
also used for oil mist lubrication. - Klübersynth GH 6 is not miscible with mineral oil or synthetic hydrocarbons. Prior to switchover, lubrication points should be cleaned, or gears or enclosed lubrication systems be flushed with the Klübersynth GH 6 oil to be used.
- Klübersynth GH 6 oil is neutral towards virtually all nonferrous metals.
Product data:
| Article number | 12158 |
| Marking acc. to DIN 51502 | CLP PG 68 |
| Classification acc. to ISO 12925-1 | CKC 68 |
| Lower service temperature | -40 °C / -40 °F |
| Upper service temperature | 160 °C / 320 °F |
| ISO viscosity grade, DIN ISO 3448 | 68 |
| Density, based on DIN 51757) at 15 °C | approx. 1 040 kg/m³ |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 20 °C | approx. 205 mm²/s |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C | approx. 68 mm²/s |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C | approx. 14,5 mm²/s |
| Viscosity index, DIN ISO 2909 | >= 190 |
| Flash point, DIN EN ISO 2592, Cleveland, open-cup apparatus | >= 220 °C |
| Pour point, DIN ISO 3016 | <= -40 °C |
| Foam test, ASTM-D 892, ISO 6247, sequence I/24 °C | <= 100/10 ml |
| Foam test, ASTM-D 892, ISO 6247, sequence II/ 93.5 °C | <= 100/10 ml |
| Foam test, ASTM D 892, ISO 6247, sequence III/24°C | <= 100/10 ml |
| Copper corrosion, DIN EN ISO 2160, 24 h/100°C | 1 - 100 corrosion degree |
| Anticorrosive properties on steel, DIN ISO 7120, method A, steel, 24 h/60 °C | no rust corrosion degree |
| Ageing properties, ASTM D 2893, increase in viscosity | <= 6 % |
| FZG scuffing test, based on DIN ISO 14635-1, A/16.6/90, scuffing load stage | >= 12 |
| FZG scuffing test, DIN ISO 14635-1, A/8.3/90, scuffing load stage | >= 14 |
| FAG FE8 rolling bearing test, DIN 51819-3, D 7,5/80-80, wear of rolling element | < 5 mg |
| FAG FE8 rolling bearing test, DIN 51819-3, D 7,5/80-80, wear of cage | <= 200 mg |
| Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx. | 36 months |
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 943150755 |
