MOTOREX COOL-CORE READY PLUS Coolant for spindle cooling systems 20L

COOL-CORE READY PLUS is used as coolant and an anti-corrosion agent in motor spindle cooling systems, in particular where there is an inadequate supply of clean drinking water available for mixing purposes. The substances it contains passivate the various materials and provide long-term protection against corrosion. COOL-CORE READY PLUS is particularly useful for problem-free cooling of drive shafts where high-power fast-turning motor spindles are used. The coolant can naturally also be used in systems that operate under less heavy loads.

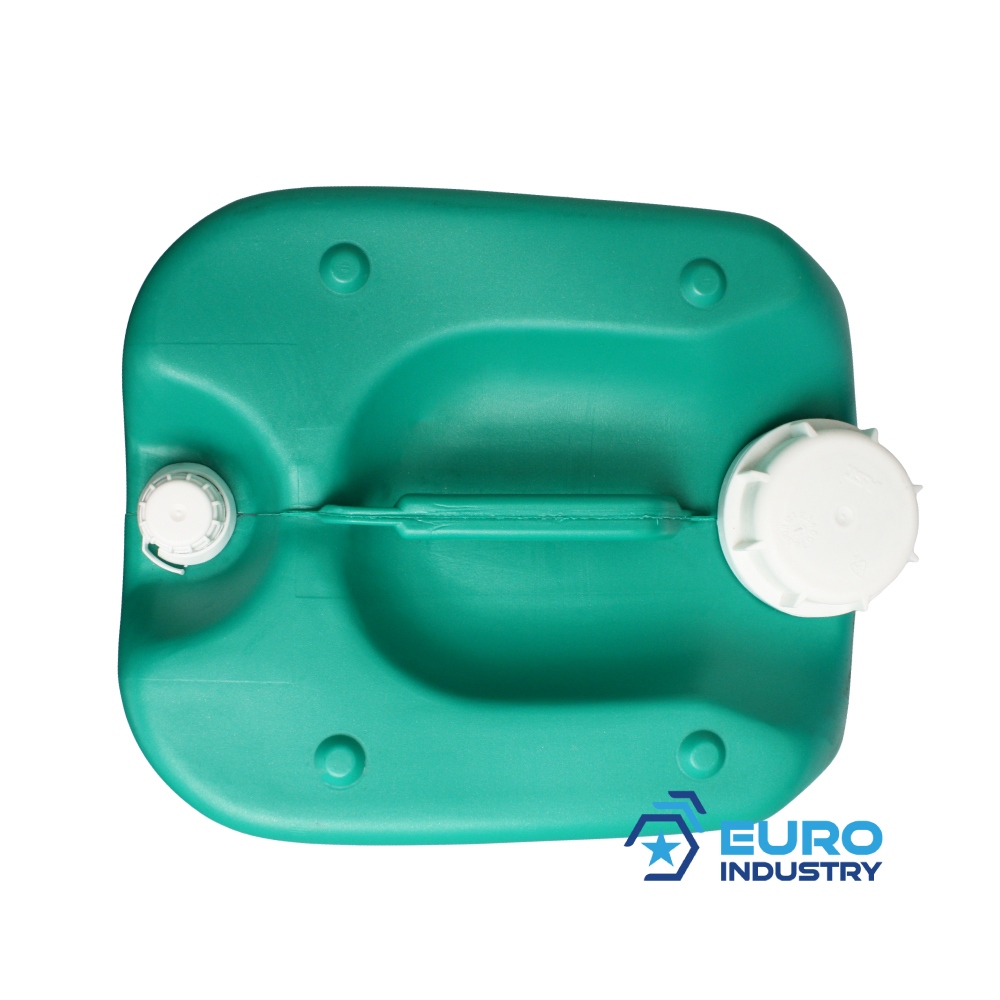

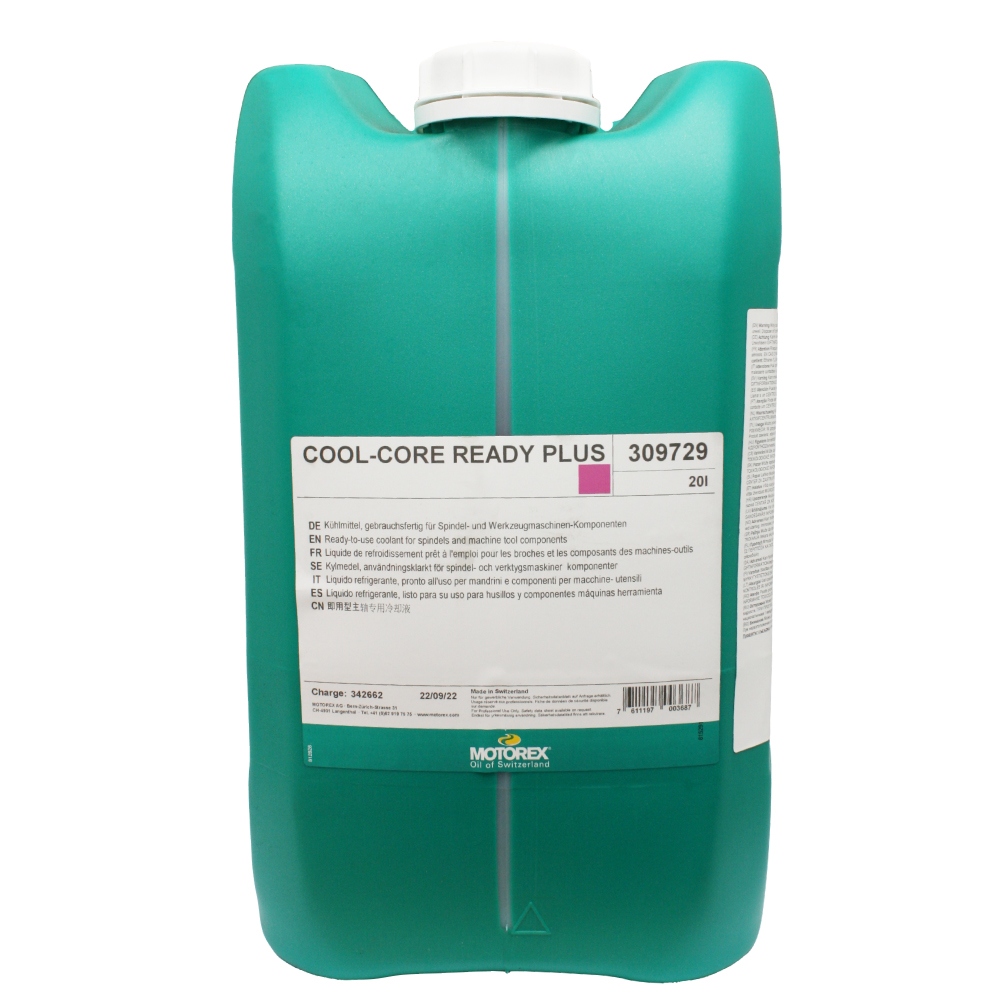

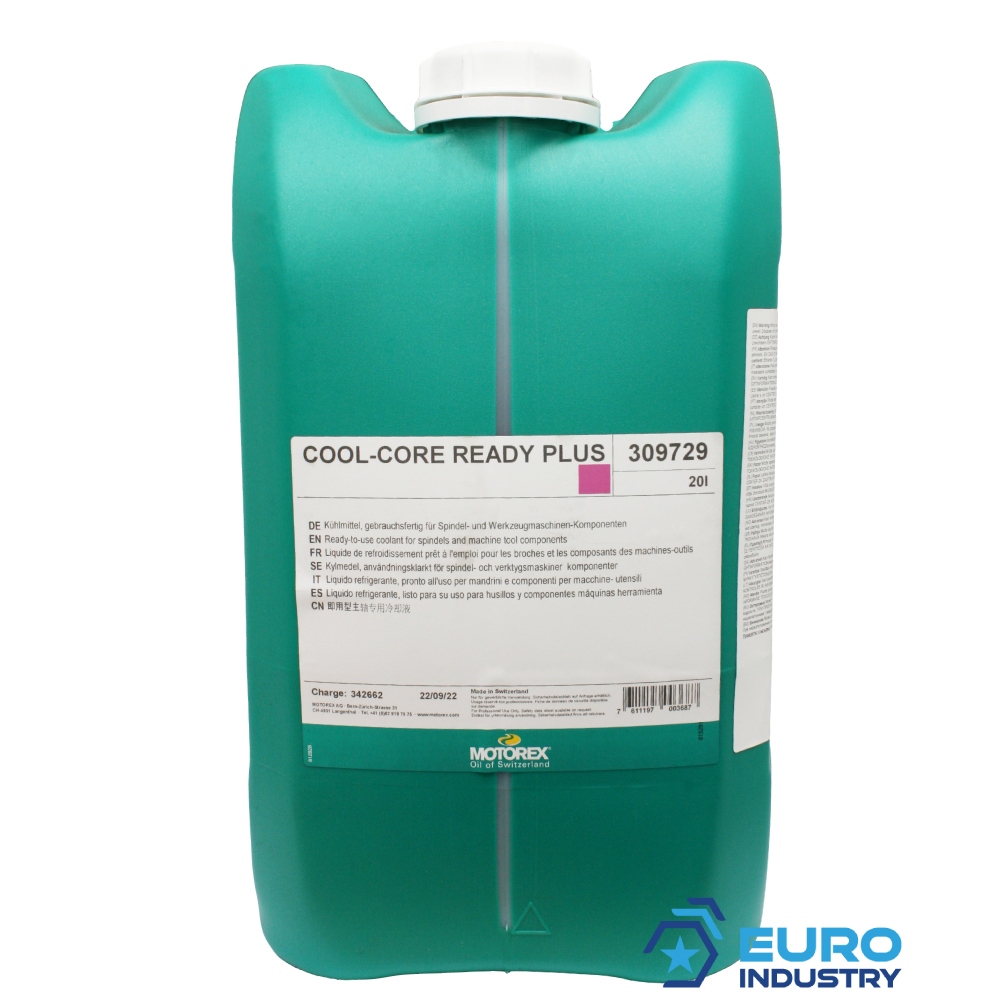

• Volume: 20 L canister
• Color: pink

Advantages

• Prevents electrochemical corrosion
• Protects aluminum, nonferrous and ferrous metals
• Low maintenance
• Long term protection
• Frost-proof down to -30 ° C
• Contains no dangerous goods -> easy shipment worldwide

Maintenance

COOL-CORE READY PLUS must be checked periodically in accordance with the specifications of the spindle or machine manufacturer (please note the maintenance instructions on the back).
If a third-party product is to be replaced with COOL-CORE READY PLUS , the cooling system must be treated with 3% Motorex CS-CLEANER for 48 operating hours before the change.
Please note the maintenance instructions of the spindle manufacturer.

Application

• COOL-CORE READY PLUS is ready to use, do not add water. An average operating temperature of 20 - 25 ° C is very effective in protecting elastomers in the long term.
• If the conditions of use are optimal and the instructions for use are observed, the coolant can remain in use for up to 4 years.

Attention: Neither galvanized components in the cooling system nor such materials may be used for mixing vessels or storage tanks.

Storage

• Store COOL-CORE READY PLUS in the original container at 5 - 35 ° C. The max.
• Storage time in the closed original container is 4 years.

Synergy Project

• “Use synergies and incorporate them into the products for the benefit of the user”, that is the motto of the MOTOREX Synergy Project.
• Products that incorporate knowledge from the synergies that have arisen between machine and tool manufacturers, users and MOTOREX are referred to at MOTOREX as the so-called Synergy Project.

Technical specifications

Properties	Test by	Values
Manufacturer No.		309729 ( old number 305602 )
Color		Pink
Dichte bei 20 °C	ASTM D4052	1.070 g/ml
Viscosity at 40°C	DIN 51562	1.2 mm2/s
Factor refractometer		1.6 % Brix
pH value		8.0 – 8.6
Operating temperature		4 - 80 °C
Solidification point	ASTM D 5950	-30 °C
Application concentration		50 – 60 %

EAN Old 25L container : 7611197123545
