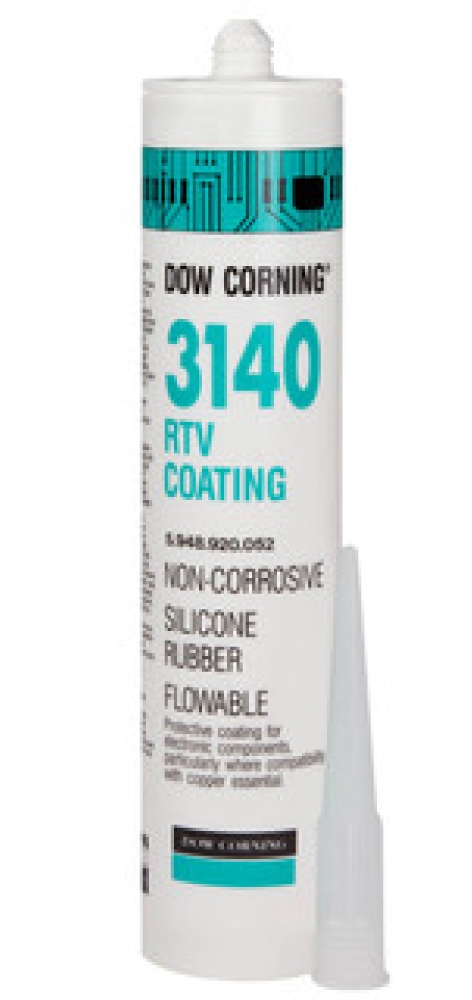

Dowsil 3140 RTV Transparent coating solvent-free 310ml
€ 83.24 83.24 incl. VAT (69.95 excl. VAT), per piece *
Availability: on request
Packaging unit: 1 piece
Manufacturer: Dow Corning
Country of origin: US/0400
Customs tariff number: 32141010
Weight per piece: 310 g
No problem. Simply fill out the form and we will answer you as soon as possible.
DOWSIL™ 3140 RTV Coating is a one-part, translucent adhesive or coating with good flowability, room temperature cure and no added solvents, UL 94 V-1, IPC-CC-830, Mil-I-46058C and MIL-A-46146 tested.
- Pack size: 310 ml cartridge
- Also available in: 90 ml tube
Applications
- Protection of corrosion-sensitive components
- Protection of rigid and flexible circuit boards
- Improved pin/solder joint coverage
- Thin-section encapsulation
- Pin sealing
Features & Benefits
- Good flowability
- Room temperature cure
- No added solvents
- UL 94 V-1, IPC-CC-830, Mil-I-46058C and MIL-A-46146 tested
- No mixing required
- Room temperature cure, no ovens required
- Faster in-line processing with optional heat acceleration
- Able to flow, fill or self-leveling after dispensing
- Can be considered for uses requiring added flame resistance, IPC or Mil Spec testing
- UV indicator for manual and automated inspection
Technical specifications
| Manufacturer number | 1981820 |
| One or Two-part | One |
| Color | Clear to slightly hazy smooth viscous liquid |
| Viscosity | 34,400 cP (34.4 Pa·s) |
| Non-volatile content (NVC) | 95.7 % |
| Tack-free time @ 25 °C | 116 min |
| Tensile strength | 434 psi |
| Elongation | 419 % |
| Hardness | Shore A 31.6 |
| Tensile modulus | 103 psi |
| Unprimed adhesion – 180° peel | 40 ppi |
| Dielectric strength | 385 V/mil (15 kV/mm) |
| Volume resistivity | 2.1 × 1014 ohm·cm |
| Dielectric constant | 2.52 (100 Hz); 2.52 (100 kHz) |
| Dissipation factor | 0.004 (100 Hz); 0.004 (100 kHz) |
| Agency / UL flammability | UL 94 V-1 @ 1.4 mm (QMJU2-E81611); 94-HB @ 1.9 mm (QMFZ2-E40195) |
Product description
Dow one-part moisture cure adhesives are generally cured at room temperature and in an environment of 30 to 80 percent relative humidity eliminating the need for curing ovens and the associated costs of energy and capital. Greater than 90 percent of full physical properties should be attained within 24 to 72 hours and varies according to product. These adhesives cure from the exposed surface inward at a rate of ~0.25 inch per seven days; mild heat below 60 °C may be used to accelerate cure. They retain their physical and electrical properties over a broad operating range.
Recommended accessories
- Dispensing guns: manual (WEICON 10000441), pneumatic (LOCTITE 97002)
- Nozzles: standard nozzle (8 cm), long nozzle 175 mm
DOW DEUTSCHLAND ANLAGENGESELLSCHAFT MBH, Rheingaustr. 34, 65201 Wiesbaden, GERMANY, +49 611 237007, [email protected], www.dow.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 1981820 |
