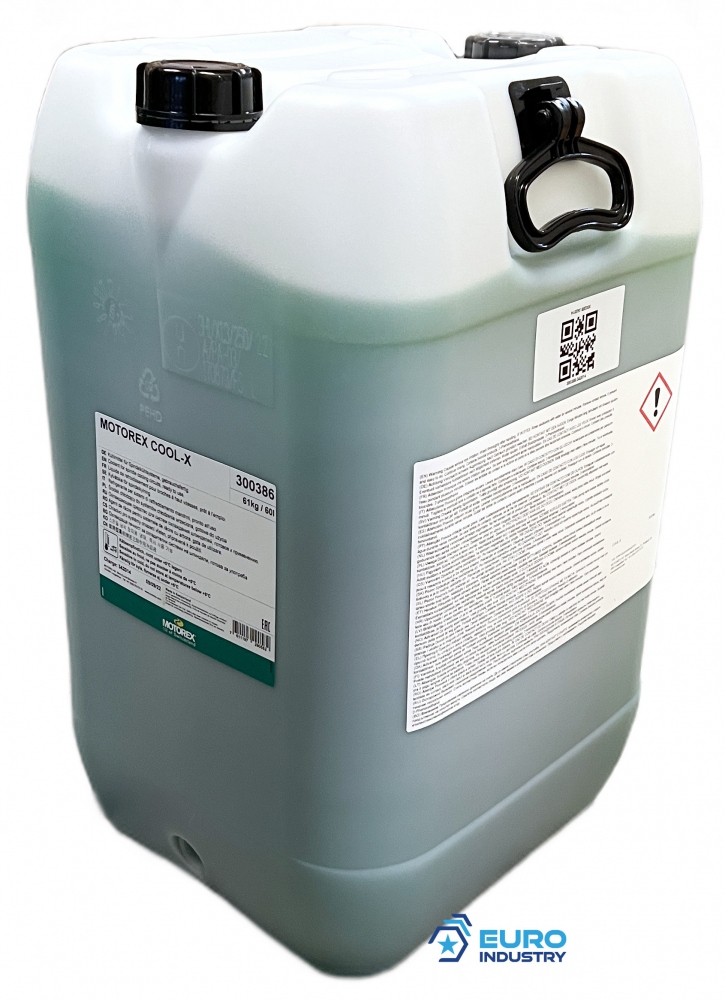

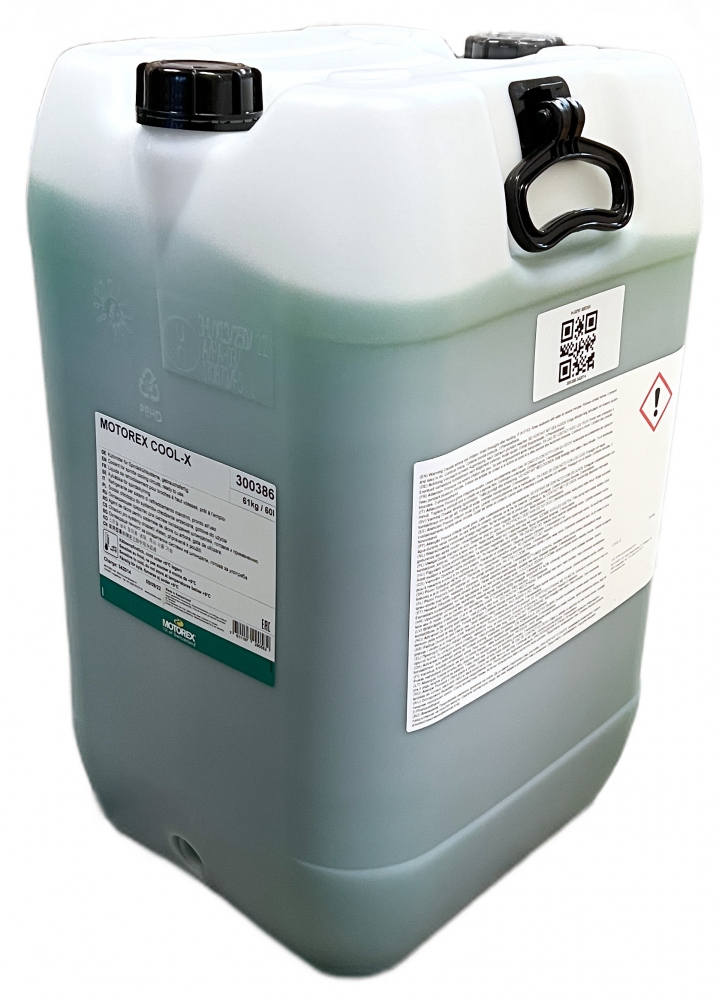

MOTOREX COOL-X Coolant for spindle cooling systems ready to use 60L

MOTOREX COOL-X Coolant for spindle cooling systems ready to use 60L

pics/Motorex/cool-x/300386-motorex-cool-x-kuehlmittel-fuer-spindelkuehlsysteme-gebrauchsfertig-kanister-tonnelet-60-liter.jpg

€ 428.34 428.34 incl. VAT (359.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Motorex

Country of origin: CH/0039

Customs tariff number: 27101999

Weight per piece: 85.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

zero + zero = ?

( Examples: two + three = 5, three - five = -2 )

MOTOREX COOL-X is a ready-to-use high-performance coolant developed for use in high-end machine tool and motor spindles and closed-loop spindle cooling systems. Supplied ready-mixed at 11 %.

Pack size: 60 L drum
Also available in: 5 L canister, 20 L canister, 200 L drum
Cleaning note: 2–3 days before product change, clean the circuit with MOTOREX CS-CLEANER (see dosage below).

Applications

Closed-loop spindle cooling systems in machine tools
Stable operation under demanding conditions

Features

High heat capacity for efficient heat transfer (specific heat: 4.180 J/g·K, close to water)
Helps prevent electrochemical corrosion
Effective corrosion protection for aluminium, steel and non-ferrous metals; does not attack galvanized parts
Low-maintenance; compatible with common engineering plastics and sealing materials
Recommended medium temperature: 20–25 °C (helps protect elastomers)

Technical Data

Manufacturer no.	300386 (old numbers 311348)
Colour	green (fluorescent)
Density (20 °C)	1.012 g/cm³
Viscosity (40 °C, DIN 51562-1)	0.8 mm²/s
Refractometer factor	2.3
Freezing point	−5 °C
In-use concentration	11–15 % (RTU: 11 %)
Operating temperature	+4 °C to +80 °C
pH (DIN 51369)	8.5–9.2
Shelf life / storage	24 months from production at 5–35 °C (sealed container)

Commissioning & Maintenance

Initial commissioning: flush the circuit with potable water (circulate ≥10 minutes), then drain completely.
Routine checks: monitor pH and concentration (observe refractometer factor); target values according to the technical data sheet.
Topping up: compensate evaporation losses with ready-mix; if concentration reaches the upper limit, correct with clean potable water.
System cleaning before product change (CS-CLEANER): dosage 3 % of total system volume — examples:
- at 20 L system volume: 0.6 L CS-CLEANER
- at 60 L system volume: 1.8 L CS-CLEANER
- at 200 L system volume: 6.0 L CS-CLEANER
Recommendation: MOTOREX CS-CLEANER 1 L or 5 L.

Note: For simultaneous cooling of slowly rotating rotary/tilting tables from the same tank, consider using COOL-X AW.

Information on product safety (Manufacturer, Contact)

MOTOREX AG, Bern-Zürich-Strasse 31, 4901 Langenthal, SWITZERLAND, +41 62 919 75 75, [email protected], www.motorex.com
