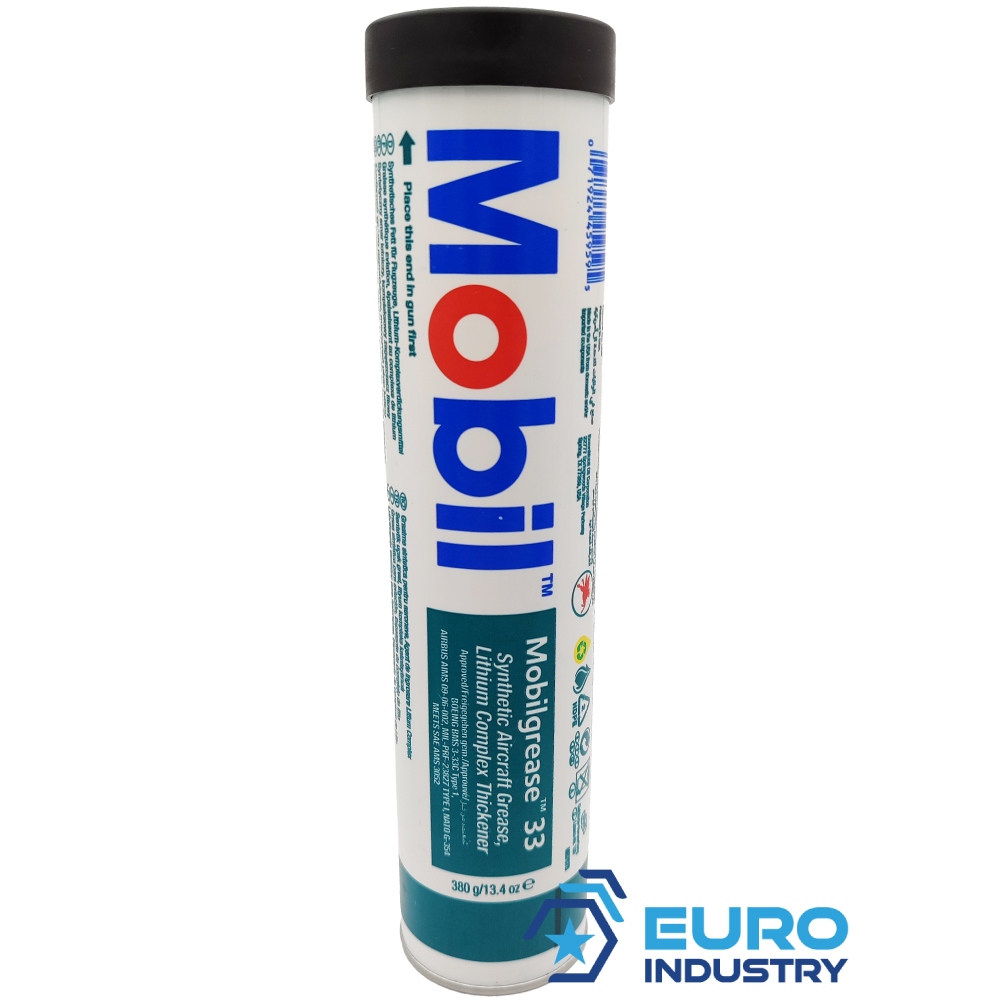

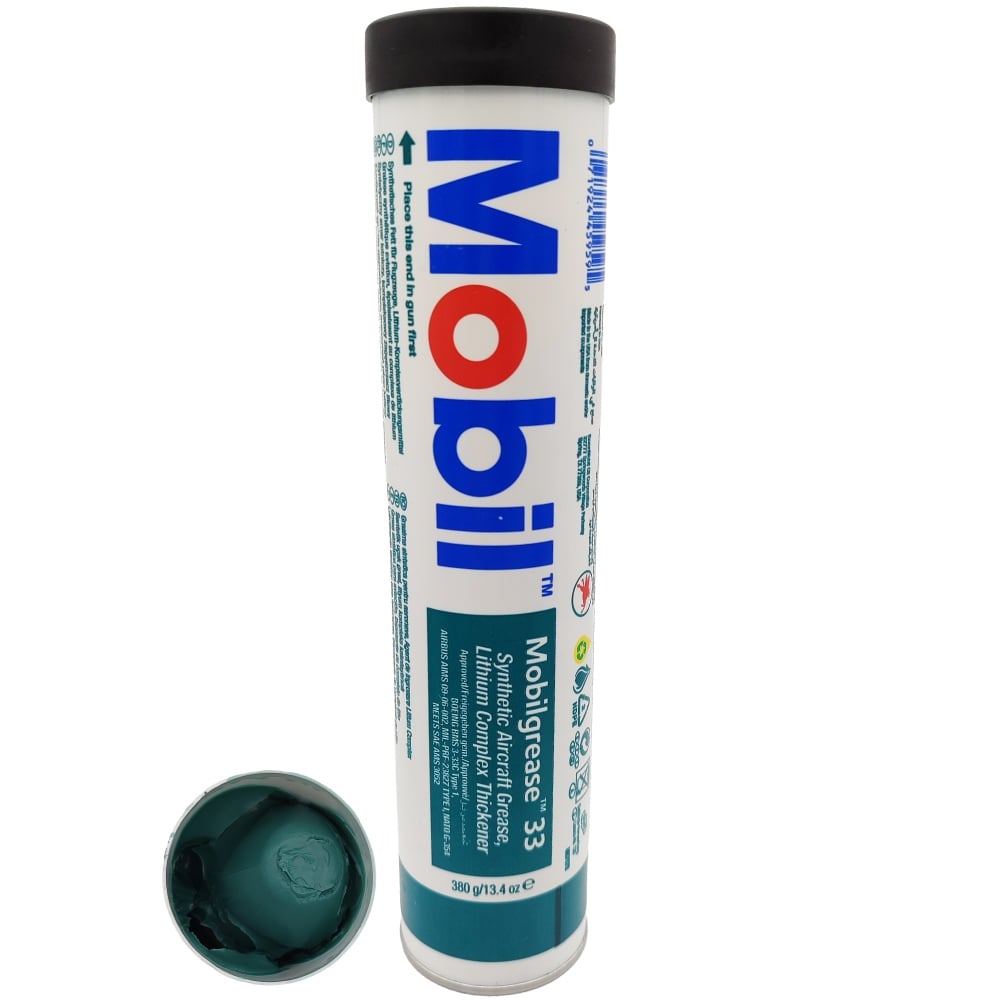

Mobilgrease 33 Synthetic Aviation Grease NLGI 1.5 - 380g cartridge

Mobilgrease 33 Synthetic Aviation Grease NLGI 1.5 - 380g cartridge

€ 21.18 21.18 incl. VAT (17.80 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Mobil

Country of origin: US/0400

Customs tariff number: 27101999

Weight per piece: 450 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

eight - four = ?

( Examples: two + three = 5, three - five = -2 )

Mobilgrease™ 33 is a high-performance synthetic aviation grease with a lithium-complex thickener for general-purpose aircraft use. Its consistency is between NLGI grades 1 and 2 (NLGI 1.5).

Pack size: 380 g cartridge
Also available in: 2 kg can, 25 kg bucket

Applications

Highly loaded anti-friction bearings, gears, and actuators
Instruments and high speed bearings (not recommended for wheel bearings)
General airframe lubrication
Operating temperatures from –100°F to 250°F (–73°C to 121°C)
For applications specifying MIL-PRF-23827, Type I; Boeing BMS 3-33C; and Airbus AIMS09-06-002/SAE AMS3052
Listed in the Qualified Products List of Airbus, Boeing, and the U.S. Military for these specifications
NATO Code Number: G-354

Specifications & Approvals

AIRBUS AIMS 09-06-002
BOEING BMS 3-33C Type 1
MIL-PRF-23827C
NATO G-354
Approved: SAE AMS3052

Characteristics

Excellent structural stability and resistance to water wash-out
100% polyalphaolefin (PAO) base oil for exceptional thermal/oxidative resistance potential and low volatility
Excellent low-temperature mobility/pumpability and very low starting and running torque values
Superior rust and wear protection and load-carrying capacity compared to aviation greases meeting minimum MIL-PRF-23827 requirements
Extreme-pressure characteristics help prevent excessive wear, even under shock load
Excellent grease performance in adverse weather and other water-exposure conditions

Technical specifications

Grade	NLGI 1.5
Color, Visual	Blue Green
Dropping Point, °C (ASTM D2265)	255
Base Oil Viscosity of Greases @ 40°C, mm²/s (AMS 1697)	12.5
Base Oil Viscosity of Greases @ 100°C, mm²/s (AMS 1700)	3.2
Penetration, Unworked, 0.1 mm (ASTM D217)	285
Penetration, 60X, 0.1 mm (ASTM D217)	292
Pen Worked X 100,000, 1/16" holes, 0.1 mm (FTM 313)	330
Oil Separation, 30 h @ 100°C, mass% (ASTM D6184)	4
Bomb Oxidation, Pressure Drop, 100 h, kPa (ASTM D942)	11
Oxidation Stability, Pressure Drop, 500 h, kPa (ASTM D942)	25
Evaporation Loss, 22 h, 100°C, mass% (ASTM D2595)	1
Evaporation Loss, 500 h, 121°C, mass% (ASTM D2595)	8.7
Water Washout, Loss @ 38°C, wt% (ASTM D1264)	3
Water Washout, Loss @ 79°C, wt% (ASTM D1264)	6
Timken OK Load, lb (ASTM D2509)	55
Four-Ball Extreme Pressure Test, Weld Load, kgf (ASTM D2596)	700
Load Carrying Capacity, Load-Wear Index, kgf (ASTM D2596)	110
Four-Ball Wear Test, Scar Diameter, mm (ASTM D2266)	0.4
Fretting Wear, mg (ASTM D4170)	0.6
Copper Strip Corrosion, 24 h, 100°C, Rating (ASTM D4048)	1B
Rust Protection, 48 h @ 125°F, Rating (ASTM D1743)	0,0,0
EMCOR Rust, 3% NaCl (IP 220)	0,0
Low Temperature Torque, Starting @ -73°C, Nm (ASTM D1478)	0.52
Low Temperature Torque, Running @ -73°C, Nm (ASTM D1478)	0.06
High Temperature Performance, Hrs at 121°C, h (ASTM D3336)	2,200+
Al/Ni Bronze Corrosiveness, 24 h, 100°C, Rating (SAE AMS3058 3.2.7.b)	PASS
Boeing Dynamic Bearing Life, cycles (BMS 3-33)	PASS
Dirt, # particles 25µ to 74µ (FTM 3005)	0
Dirt, # particles 75µ or larger (FTM 3005)	0
NBR-L, AMS 3217/2 Compat, 70°C 158 h, vol% (FTM 3603)	12.6
Odor, OLFACTORY	PASS
Texture/Consistency, VISUAL	PASS

Product description

Mobilgrease 33 utilizes a 100% polyalphaolefin base oil and premium additives which ensure outstanding lubrication performance over a wide temperature range and operating conditions. The lithium complex thickener system provides excellent structural stability and resistance to water wash-out, while the state-of-the art additive system provides superior rust and wear protection and load-carrying capacity compared to aviation greases that meet the minimum requirements of the MIL-PRF-23827 specification.

Information on product safety (Manufacturer, Contact)

EXXONMOBIL CENTRAL EUROPE HOLDING GMBH, Ericusspitze 2, 20457 Hamburg, GERMANY, +49 40 6393 0, [email protected], www.exxonmobil.de

mobilgrease-33-synthetic-aviation-grease-tds-datasheet-en.pdf (165.77 KB)
