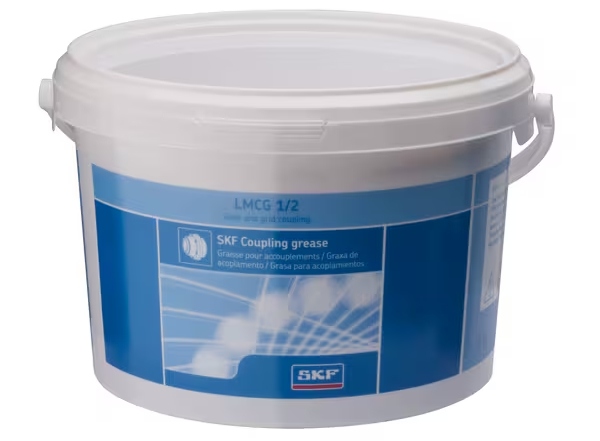

SKF LMCG 1/2 Grid and gear coupling grease NLGI-1 2kg

SKF LMCG 1/2 Grid and gear coupling grease NLGI-1 2kg

pics/skf/LMCG 1/skf-lmcg-1-2-coupling-grease-2-kg.jpg

€ 57.06 57.06 incl. VAT (47.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: SKF

Country of origin: DE/0004

Customs tariff number: 27101999

Weight per piece: 2.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

nine - six = ?

( Examples: two + three = 5, three - five = -2 )

SKF LMCG 1/18 A polyethylene thickened and mineral oil based grease (NLGI 1) which also uses a lithium complex thickening technology. The grease is formulated to withstand high centrifugal forces and high-torque applications for grid and gear (flexible) couplings even where severe shock loadings, misalignment and vibration occur. Leakage is prevented at high speeds and the grease is stable in consistency.

Pack size: 2 kg can
Also available in: 420 ml cartridge, 18 kg bucket

Application

The special additive formulations make the grease suitable for applications subjected to high loads, high torque, wet environments, a wide range of speed regimes and wide range of temperatures.
Grid and gear couplings
Flexible heavy duty grif and gear couplings

Specifications & Approvals

DIN 51825 code - GOG1G-0
AGMA code - CG-2

Advantages

Excellent resistance to oil separation
High acceleration and high operating speeds
Excellent high-torque lubrication
High corrosion protection
Exceeds AGMA Type CG-1 and AGMA Type CG-2 requirements
High coupling wear protection
Excellent oxidation stability
Due to low oil bleeding tendency, suitable for use in centralized lubrication systems

Technical specifications

Manufacturer number	LMCG 1/18
NLGI consistency class	1
Thickener	Polyethylene
Colour	Brown
Base oil type	Mineral
Operating temperature range, °F	32 to 248
Dropping point (min), ISO 2176, °F	160
Base oil viscosity, DIN 51562 at 40 °C, mm²/s	761
Base oil viscosity, DIN 51562 at 100 °C, mm²/s	44
Penetration, DIN ISO 2137, Worked, 60 strokes, 10⁻¹mm	310-340
Penetration, DIN ISO 2137, Prolonged, 100 000 strokes, 10⁻¹mm	+25 (max)
Corrosion protection, Emcor, ISO 11007, Distilled water	0-0
Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl	2-2
Water wash-out test, ISO 11009, % at 100 °F	<10
Copper corrosion (max), DIN 51811 / ASTM D4048, 24 hrs at 100 °C	1b
Rolling bearing grease life (max), ROF test, L50 life, 10000 r/min, hrs at 104 °C	700
Flow pressure, DIN 51805-2, mBar at 14 °F	<1400
EP performance, 4 ball, Wear scar (max), DIN 51350/5, 1400 N, in	0.02
EP performance, 4 ball, Weld load (min), DIN 51350/4, lbf	719
Shelf life, years	5
Density, DIN 51757 at 20 °C / 68 °F, g/cm³	0.94

Information on product safety (Manufacturer, Contact)

SKF GmbH, Gunnar-Wester-Straße 12, 97421 Schweinfurt, GERMANY, +49 9721 56-0, [email protected], www.skf.com

skf-lmcg-1-grid-and-gear-coupling-grease-tds-datasheet-en.pdf (483.31 KB)
