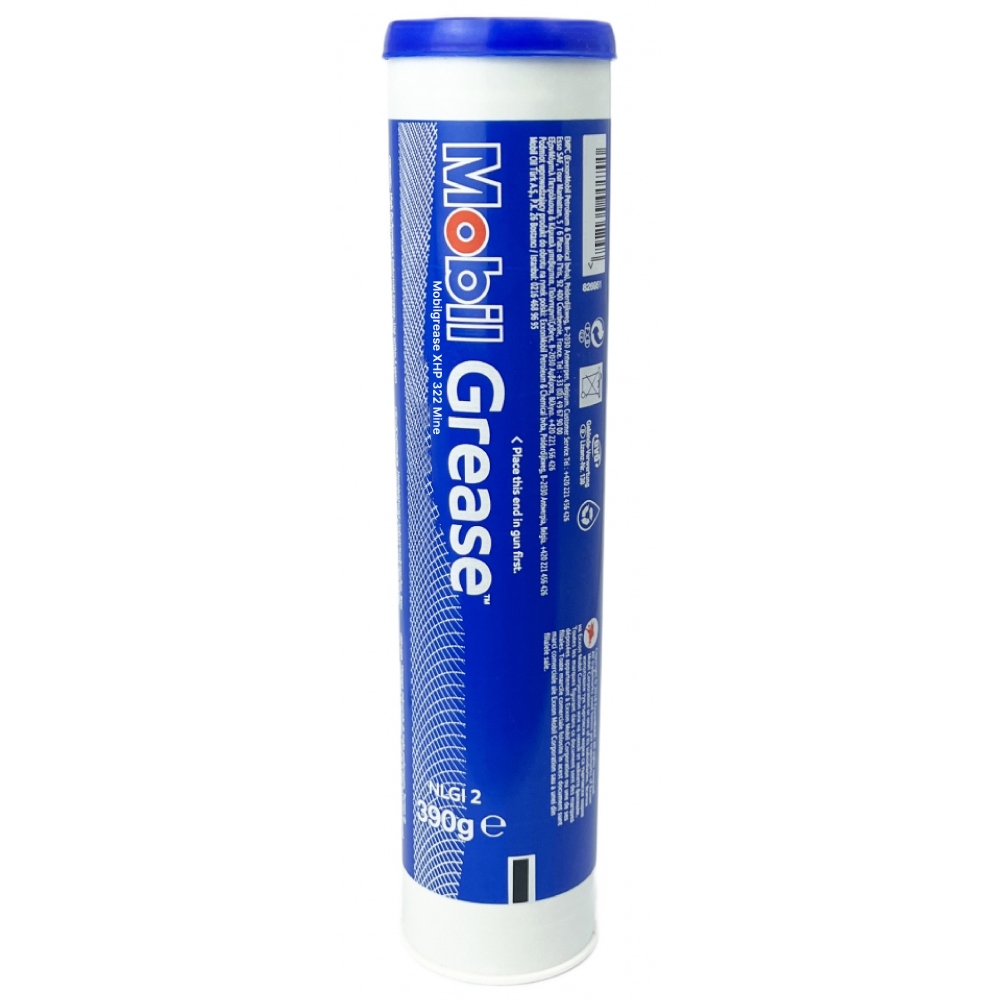

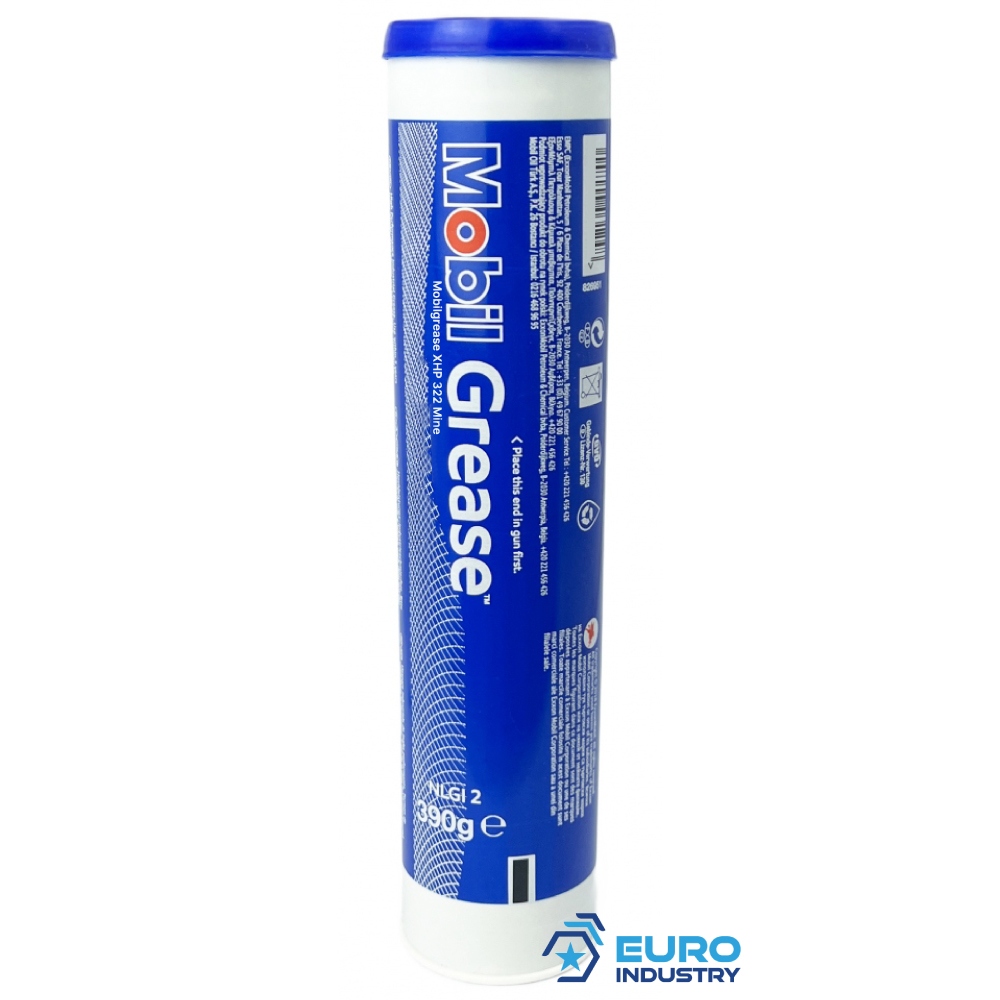

Mobil Mobilgrease XHP 322 MINE Special Lithium Complex Grease 390g

The Mobilgrease XHP 322 Mine product (NLGI 2) is a specifically designed for the lubrication of extra heavy-duty off-highway and mining equipment. With a complete range of NLGI Grades, this series of lithium complex greases, which contain 5% molybdenum disulfide, can be utilized over a wide range of operating conditions and temperatures to improve productivity.

• Packaging: 390 g cartridge
• Also available in: 18 kg pail, 50 kg drum, and 180 kg drum

Applications

• Bucket pins, pivot pins, and heavily loaded chassis components
• Heavy equipment central lubrication systems
• General purpose chassis lubrication

Approvals and Certifications

• VOLVO 97765

Features

• Superb equipment protection and potential equipment life extension even in severe operating conditions
• Optimum equipment protection in high sliding mechanisms and with extended re-lubrication intervals
• Ensures proper lubrication and protection even in hostile work environments
• Provides excellent low temperature pumpability and start-up performance, a key feature for remote applications

Technical Data

Manufacturer number	153557
Grade	NLGI 2
Thickener Type	Lithium Complex
Color, Visual	Gray-Black
Copper Strip Corrosion, 24 h, 100 C, Rating	1A
Corrosion Preventive Properties, Rating	Pass
Dropping Point, °C	270
Four-Ball Extreme Pressure Test, Weld Point, kgf	400
Four-Ball Wear Test, Scar Diameter, mm	0.4
Molybdenum Disulfide Content, wt %	5
Penetration, 60X, 0.1 mm	280
Roll Stability, Penetration Consistency Change	±10
US Steel Mobility @ -12 C, g/min	11
Viscosity @ 40 C, Base Oil, mm2/s	320
Water Sprayoff, Loss, %	16
Water Washout, Loss @ 79 C, wt%	2

Mobilgrease XHP 320 Mine, 321 Mine, and 322 Mine were developed especially for their superior performance in bucket pins, pivot pins, and heavily loaded chassis components. Mobilgrease XHP 100 Mine and 320 Mine are especially suited for heavy equipment central lubrication systems requiring an NLGI 0 Grade grease. Mobilgrease XHP 100 Mine and 320 Mine are recommended by ExxonMobil for use in central lubrication systems found on off-highway and mining equipment. Mobilgrease XHP 100 Mine exhibits good dispensability down to -50°C (-58°F). Mobilgrease XHP 321 Mine is a NLGI 1 Grade with very good low temperature pumpability developed for use in colder temperatures. Mobilgrease XHP 322 Mine is a NLGI 2 Grade for use as a general purpose chassis lube.



Information on product safety (Manufacturer, Contact)

EXXONMOBIL CENTRAL EUROPE HOLDING GMBH, Ericusspitze 2, 20457 Hamburg, GERMANY, +49 40 6393 0, [email protected], www.exxonmobil.de
