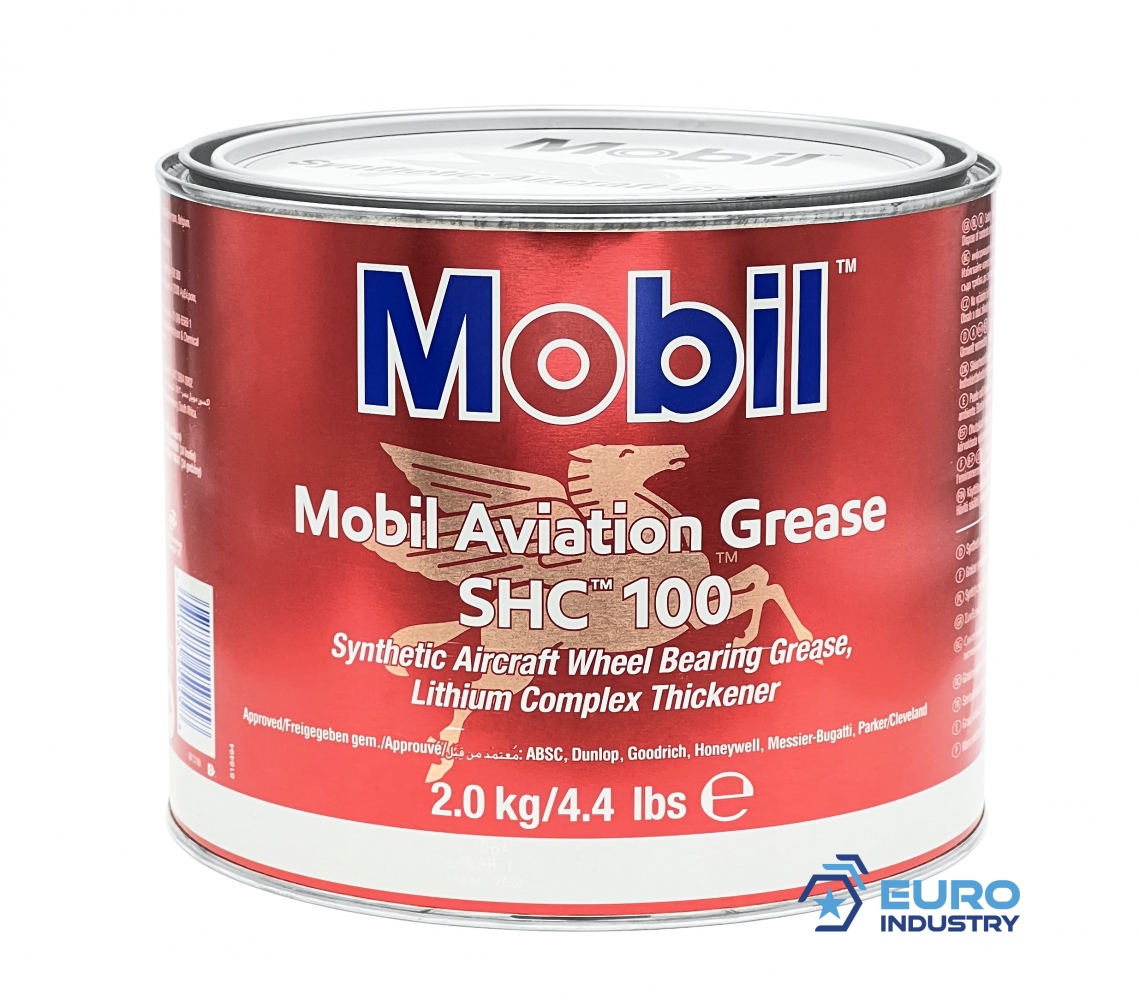

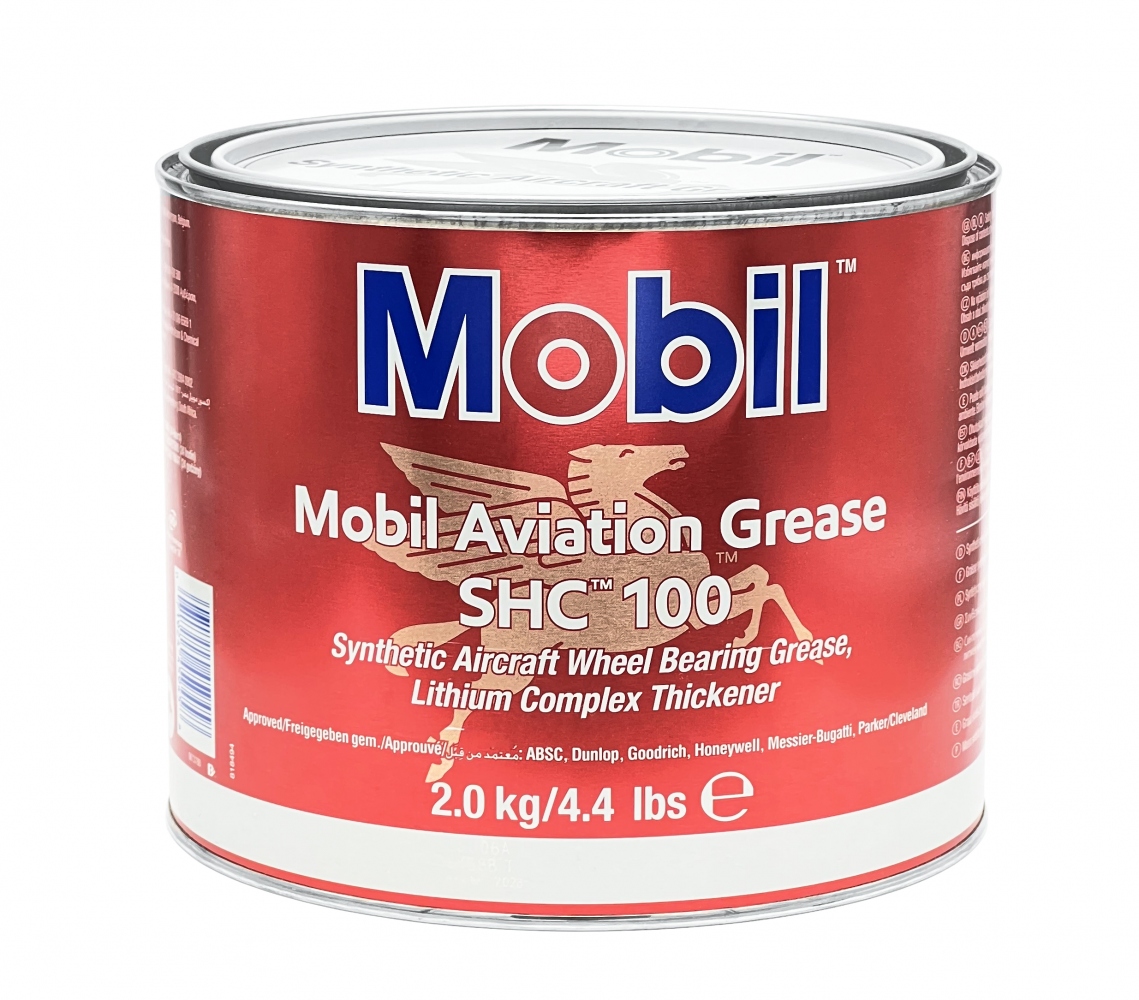

Mobil Aviation Grease SHC 100 Synthetic aviation grease 2kg can

Mobil Aviation Grease SHC 100 is a supreme performance synthetic grease which combines the unique features of a polyalphaolefin (PAO) synthetic base fluid with those of a high quality lithium complex soap thickener. The thickener system provides a high dropping point, excellent resistance to water wash, and a tenacious structural stability. The unique physical properties of the synthetic base oil, combined with selected additives, provide outstanding protection against wear, rust, corrosion, and high temperature degradation.

• Size: 2 kg can
• Also available in: 390 g cartridge, 16 kg bucket

Applications

Mobil Aviation Grease SHC 100 is recommended for aviation applications which need a lubricant that can perform normal functions, yet go far beyond in terms of high and low temperatures and long-life performance.  It is a NLGI Grade 2/ISO VG 100 grease having the cold-temperature pumping resistance of most mineral-oil NLGI Grade 0 greases.  It provides outstanding protection at operating temperatures from –54 ºC (-65 ºF) to 177 ºC (350 ºF).

Specifications and Approvals

• ABSC
• DUNLOP
• GOODRICH
• HONEYWELL
• SAFRAN LANDING SYSTEMS (MESSIER - BUGATTI)
• PARKER - CLEVELAND

Benefits

• Wide application temperature ranges, with excellent protection at high temperatures and low torque, easy start-up at low temperatures.
• Thicker fluid films protecting against wear of equipment parts operating at high temperature
• Reduced downtime and maintenance costs because of reduced replacement of equipment parts
• Long intervals between re-lubrication and improved bearing life
• Excellent grease retention on parts in hostile wet environments
• Little loss of lubricating oil

Technical specifications

Grade	NLGI 2
Bomb Oxidation, Pressure Drop, 100 h, kPa, ASTM D942	3
Bomb Oxidation, Pressure Drop, 500 h, kPa, ASTM D942	5
Color, Visua	Red
Copper Strip Corrosion, 24 h, 100 C, Rating, ASTM D4048	PASS
Dirt, # particles 125u or larger, FTM 3005	PASS
Dirt, # Particles 25 - 124u, FTM 3005	PASS
Dropping Point, °C, ASTM D2265	278 (532)
Four-Ball Extreme Pressure Test, Weld Load, kgf, ASTM D2596	250
Four-Ball Wear Test, Scar Diameter, mm, ASTM D2266	0.5
Oil Separation, 30 h @ 177 C, mass%, ASTM D6184	5
Penetration, 60X, 0.1 mm, ASTM D217	280
Rust Protection, 48 h @ 125 F, Rating, ASTM D1743	PASS

Mobil Aviation Grease SHC100
