Molyduval CASONE CSM 1 High-pressure grease NLGI 1, 400g cartridge

Molyduval CASONE CSM 1 High-pressure grease NLGI 1, 400g cartridge

€ 16.07 16.07 incl. VAT (13.50 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Molyduval

Country of origin: DE/0004

Customs tariff number: 27101999

Weight per piece: 450 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

one + seven = ?

( Examples: two + three = 5, three - five = -2 )

Molyduval CASONE CSM 1 is a special high-pressure grease, NLGI 1, DIN KP1S-30, based on a calcium sulphonate complex thickener. It is designed for rolling and plain bearings exposed to high temperatures, heavy loads, high pressures, oscillating movements and shock loads.

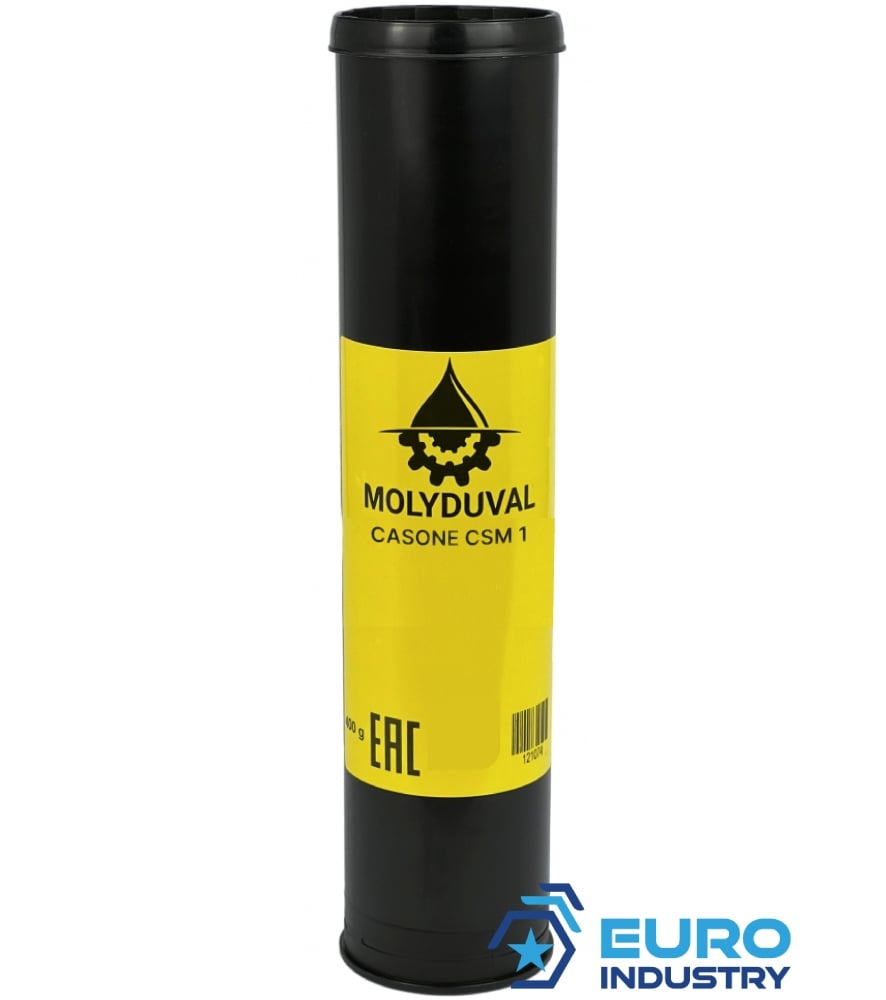

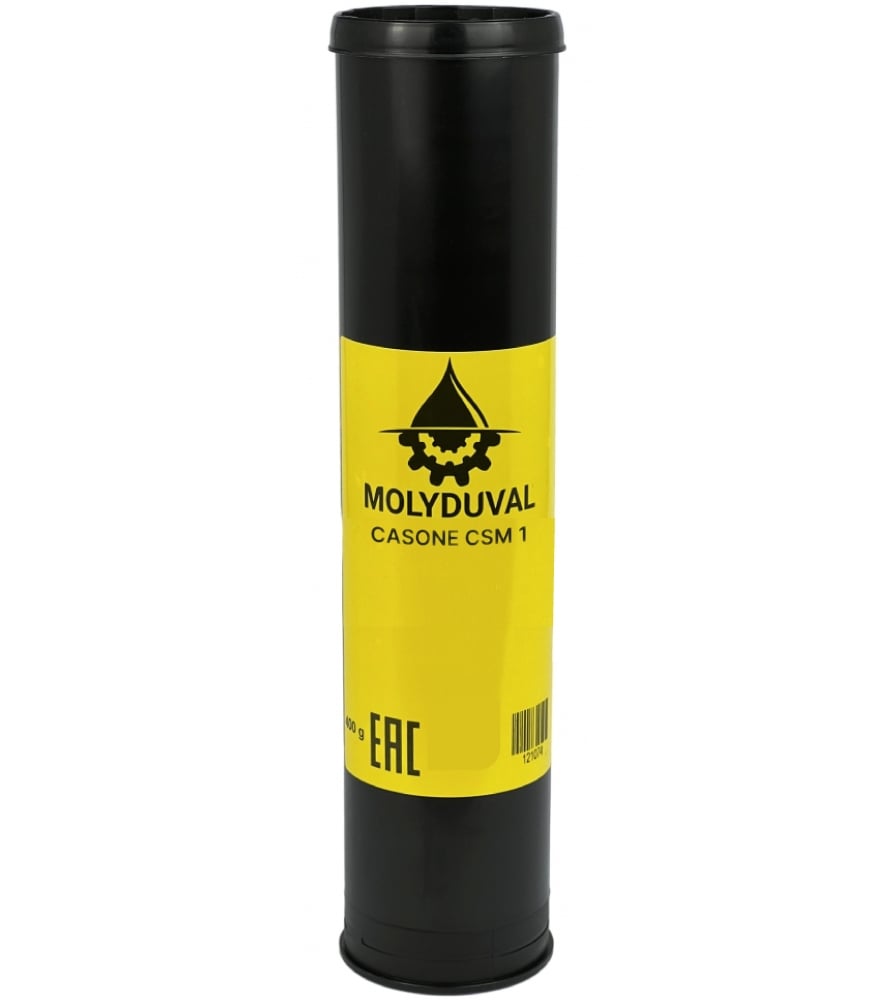

Pack size: 400 g cartridge
Also available in: 18 kg bucket

Applications

Bearings in hot-melt adhesive machines
Rolling bearings in paper machines and textile machines
Rolling and plain bearings at high operating temperatures
Bearings in annealing ovens and drying ovens
Bearings in rotary kilns
Manipulators
Cooling bed systems
Conveyor systems
Hot-air and exhaust-gas fans
Blowers
Electric motors
Rolling and plain bearings exposed to high loads, high pressures, oscillating movements and shock loads
Rolling and plain bearings that can only be relubricated infrequently

Features

High pressure resistance
Excellent long-term stability
Excellent high-temperature stability
Very good water resistance
Very suitable for humid environments
Good corrosion protection
Reduces the risk of fretting corrosion
Excellent wear protection
Low wear for extended component service life
Good emergency running properties due to the EP characteristics of the soap thickener

Standards & Classifications

DIN: KP1S-30
ISO: ISO-L-XBGIB 1

Technical data

Manufacturer no.	MFCECSM1-K400
Product type	Special high-pressure grease
DIN classification	KP1S-30
ISO classification	ISO-L-XBGIB 1
NLGI consistency class	1
Thickener	Calcium sulphonate complex soap
Colour	Brown
Base oil viscosity at 40 °C	220 mm²/s
Density at 15 °C	1090 kg/m³
Operating temperature range	-30 to +200 °C
Short-term temperature	up to +300 °C
Dropping point	300 °C
Flow pressure at -25 °C	<1400 hPa (mbar)
Water resistance, static	Grade 1-90
Timken test	50 lbs
Four-ball wear scar diameter	0.6 mm
Four-ball weld load	7500 N
EMCOR corrosion protection, distilled water	Grade 0
EMCOR corrosion protection, salt water	Grade 1-2
Copper corrosion, 24 h at 100 °C	Rating 1a

Product description

Molyduval CASONE CSM 1 is a high-performance special grease with exceptional pressure resistance, long-term stability and water resistance. Its calcium sulphonate complex thickener provides reliable lubrication under high temperatures, heavy loads and humid operating conditions.

Molyduval CASONE CSM1, Molyduval Casone CSM-1

Information on product safety (Manufacturer, Contact)

MOLYDUVAL GmbH, Halskestrasse 6, 40880 Ratingen, GERMANY, +49 2102 975700, [email protected], www.molyduval.com
