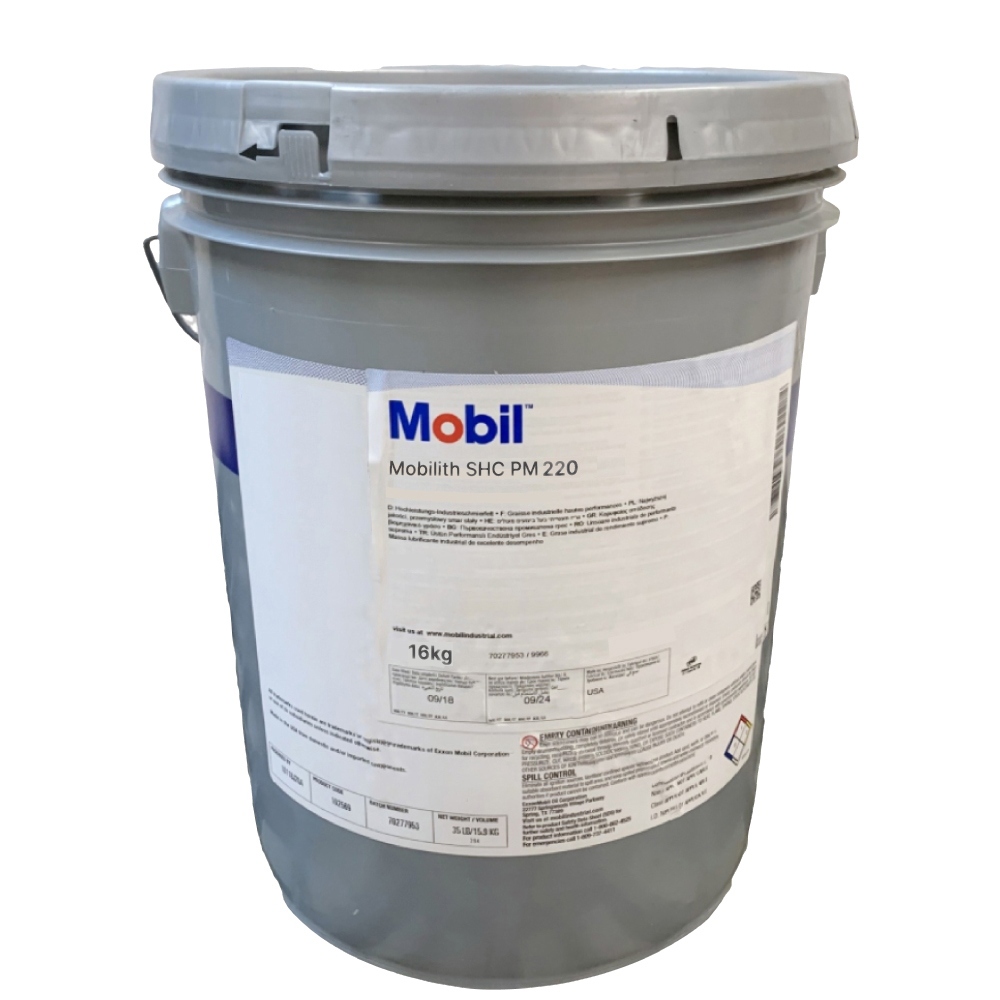

Mobil Mobilith SHC PM 220 EP grease NLGI 1.5 for paper machines 16kg

Mobil Mobilith SHC PM 220 is a special Extreme Pressure (EP) grease KP HC 1-2 N -40 designed for severe paper machine applications, including extreme temperature environments and exposure to different qualities of water.

Mobilith SHC PM 220 is an 1.5 NLGI Grade beige grease with a synthetic PAO base fluid (ISO VG 220). Its operating temperature range is between -40º C* and +150º C.

• Volume: 16 kg bucket
• Also available in: 380 g cartridge, 174 kg barrel

Applications

• Mobilith SHC PM greases are recommended for critical rolling element bearing applications in paper machines, such as...
• Wet end paper machine bearings
• Highly loaded press section bearings
• High-temperature felt roll and calendar stack bearings

Specifications & Approvals

• DIN 51825:2004-06 - KP HC 1-2 N -40

Features

• Wide application temperature range, from -40ºC to 150°C with excellent protection at high temperatures and low torque, easy start-up at low temperatures
• Reduced downtime and maintenance costs because of reduced wear, rust and corrosion even in acidic and alkaline water environments
• Extended service life with longer intervals between relubrication and improved bearing life
• Outstanding protection of slow speed, heavily loaded bearings, with extended bearing life
• Retains excellent grease performance in hostile aqueous environments
• Helps resist viscosity increase at high temperatures to maximize relubrication intervals and bearing life

Application Notes

While Mobilith SHC PM greases are compatible with most mineral oil based products, admixture may detract from their performance. Consequently it is recommended that before changing a system to one of the Mobilith SHC PM greases, it should be thoroughly cleaned out to achieve the maximum performance benefits.

Technical data

Manufacturer Part Number	148999
Property	PM 220
Grade	NLGI 1.5
Thickener Type	Lithium Complex
Color, Visual	Off-White
Corrosion Preventive Properties, Rating, ASTM D1743	Pass
Dropping Point, °C, ASTM D2265	275
Four-Ball Extreme Pressure Test, Weld Load, kgf, ASTM D2596	250
Four-Ball Wear Test, Scar Diameter, mm, ASTM D2266	0.50
Penetration, 60X, 0.1 mm, ASTM D217	305
SKF Emcor Rust Test, 10% Synthetic Sea Water, ASTM D6138	0.1
SKF Emcor Rust Test, Acidic Water, ASTM D6138	0.1
Timken OK Load, lb, ASTM D2509	65
Viscosity @ 100 C, Base Oil, mm2/s, ASTM D445	30.3
Viscosity @ 40 C, Base Oil, mm2/s, ASTM D445	220
Viscosity Index, ASTM D2270	179
Water Washout, Loss @ 79 C, wt%, ASTM D1264	1

Product description Mobilith SHC™ PM

Exxon Mobil Mobilith SHC™ PM greases are superior performance products designed specifically for severe paper machine applications, including extreme temperature environments and exposure to different qualities of water. Mobilith SHC PM greases combine the unique features of a synthetic base fluid with those of a high quality lithium complex thickener. The wax-free nature of the synthetic base fluid provides excellent low temperature pumpability and low starting and running torque compared to other non-synthetic oil products of the same viscosity. The high viscosity index of the synthetic base fluid ensures excellent film protection at high temperatures. The lithium complex thickener contributes excellent adhesion, structural stability and resistance to water. These properties are complemented by a special additive system to provide rust and corrosion resistance, wear protection, thermal/oxidative resistance and to enhance water resistance properties. Mobilith SHC PM 220 and Mobilith SHC PM 460 are both NLGI grade 1.5 with base fluids of ISO VG 220 and 460, respectively.

Mobilith SHC PM greases are designed for use in the most critical rolling element bearing applications in paper machines. They provide outstanding protection against rust and typical acid and alkali water corrosion, making them ideal for the wet end of the paper machine. The low volatility and excellent oxidation stability of the PAO base stock ensures excellent service at high temperatures typical of dry end conditions.

The Mobilith SHC PM series has become the technology of choice for many paper mill operators, worldwide. Its reputation is based on exceptional quality, reliability and the proven performance benefits they deliver.
