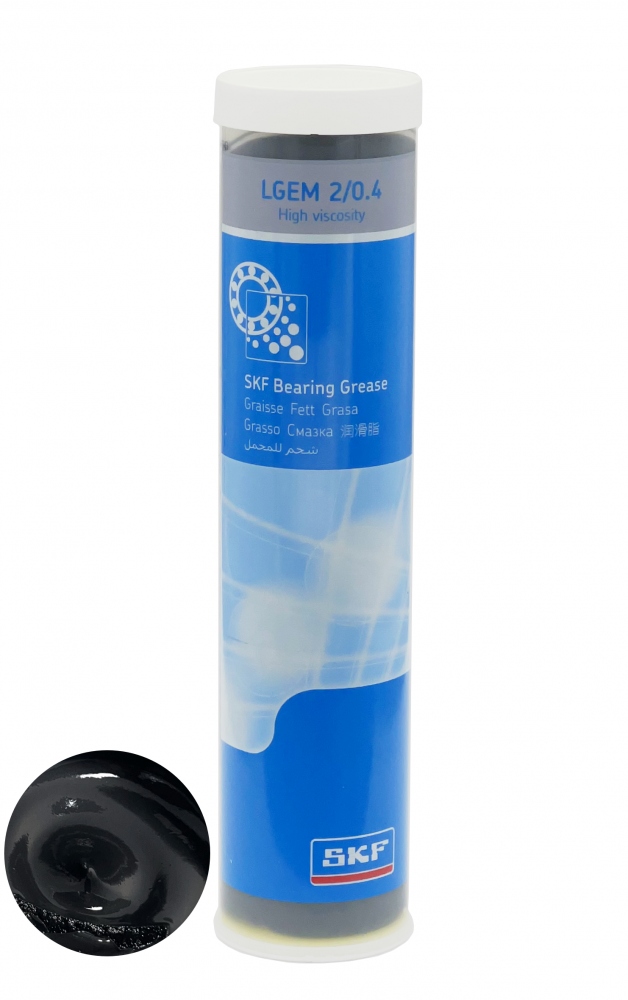

SKF LGEM 2/0.4 High viscosity grease 420ml cartridge

LGEM 2 High viscosity grease with solid lubricants NLGI 2

SKF LGEM 2 is a high viscosity, mineral oil based grease using a lithium/calcium soap. Its content of molybdenum disulphide and graphite provides extra protection for harsh applications subjected to high loads, heavy vibrations and slow rotations.

Characteristics

• High oxidation stability
• Molybdenum disulphide and graphite provide lubrication even if the oil film breaks down
• Volume: 420 ml cartridge
• Also available in: 5 kg can, 18kg bucket, 180 kg drum

Applications

• Rolling element bearings running at low speed and very high loads
• Jaw crushers
• Track laying machines
• Lift mast wheels
• Building machines such as mechanical rams, crane arms, and crane hooks

Technical specifications

NLGI consistency class		2
Thickener		Lithium/calcium
Colour		Black
Base oil type		Mineral
Operating temperature range		–20 to +120 °C (–5 to +250 °F)
Dropping point DIN ISO 2176		>180 °C (>355 °F)
Base oil viscosity	40 °C, mm²/s	500
	100 °C, mm²/s	32
Penetration DIN ISO 2137	60 strokes, 10–1 mm	265–295
	100 000 strokes, 10–1 mm	325 max.
Mechanical stability	Roll stability, 50 hrs at 80 °C, 10–1 mm	345 max.
	V2F test	‘M’
Corrosion protection	Emcor: – standard ISO 11007	0–0
	Emcor: – water washout test	0–0
Water resistance	DIN 51 807/1, 3 hrs at 90 °C	1 max.
Oil separation	DIN 51 817, 7 days at 40 °C, static, %	1–5
Lubrication ability	R2F, running test B at 120 °C	Pass at 100 °C (210 °F)
Copper corrosion	DIN 51 811	2 max. at 100 °C (210 °F)
EP performance	Wear scar DIN 51350/5, 1 400 N, mm	1,2 max.
	4–ball test, welding load DIN 51350/4, N	3 400 min.
Shelf life		5 years
