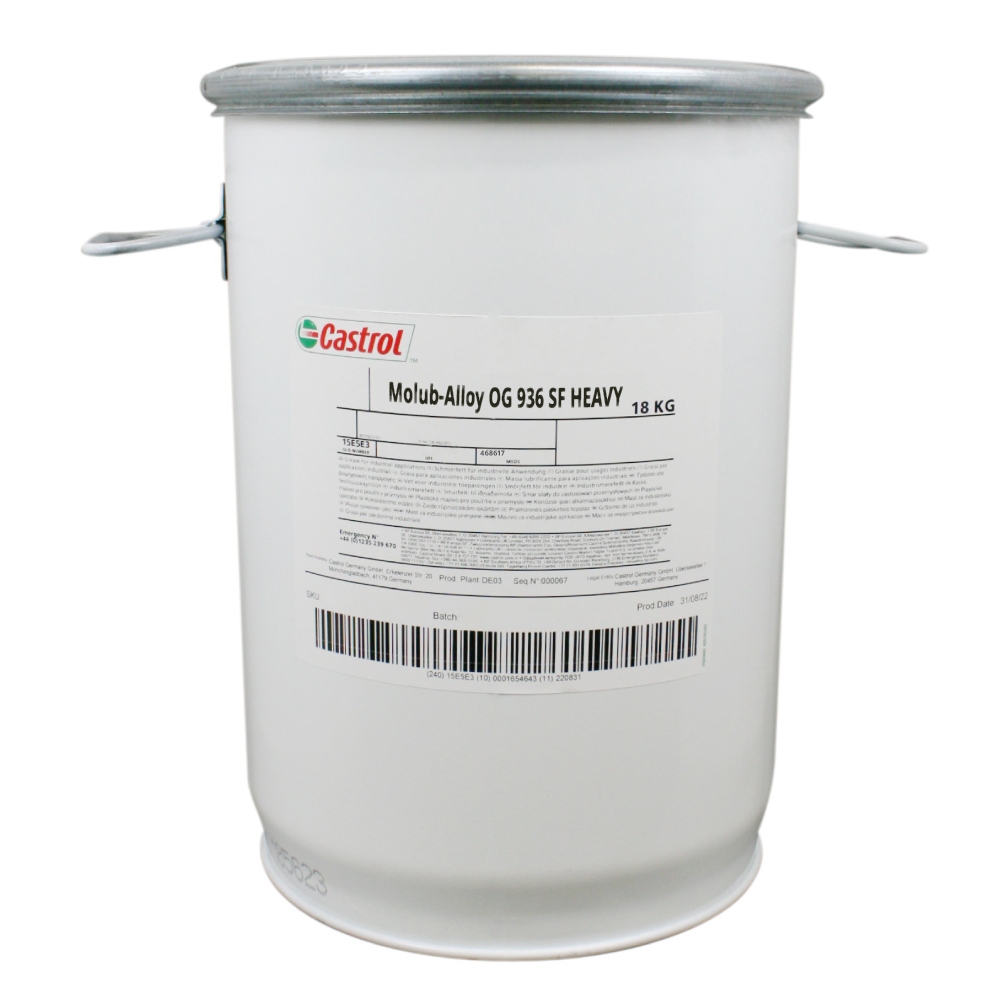

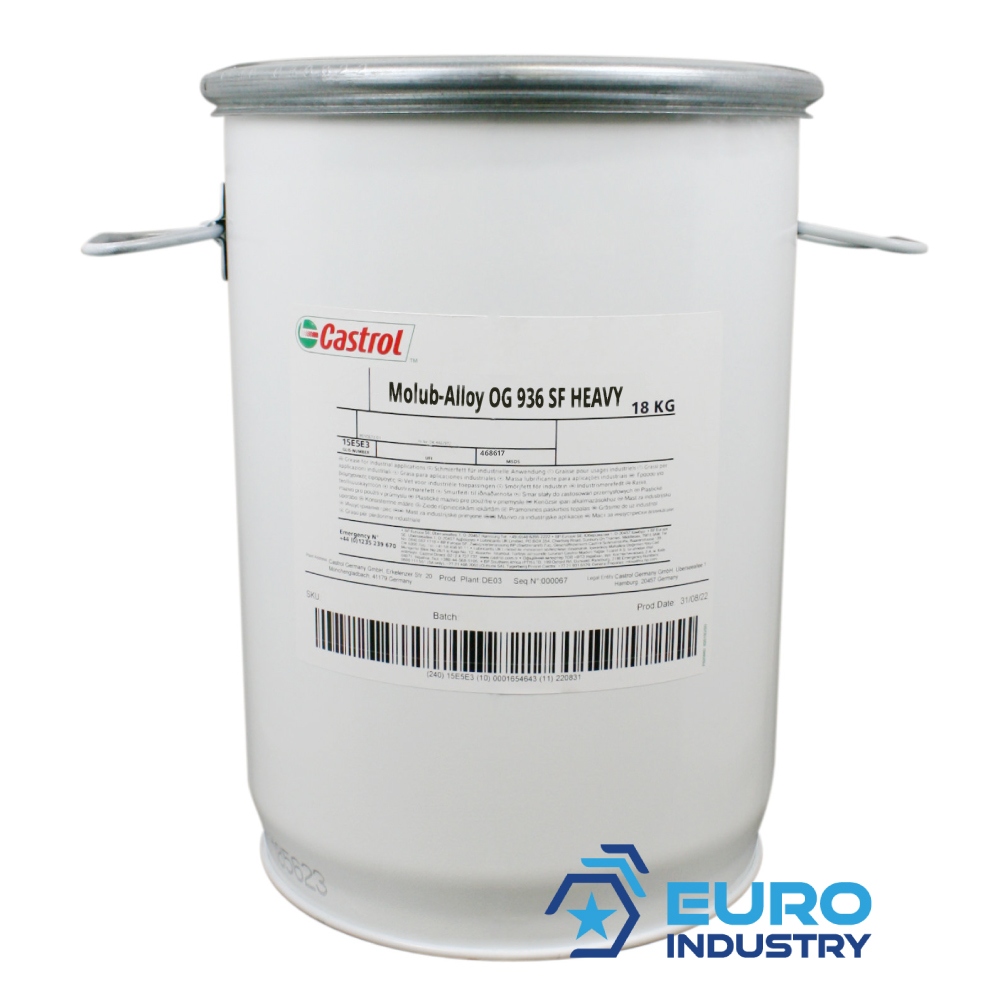

Castrol Molub-Alloy OG 936 SF HEAVY Open gear compound 18kg bucket

Castrol ​Molub-Alloy™ OG 936 SF Heavy Open gear compounds (solvent free) NLGI 0

Castrol Molub-Alloy™ OG 936 SF Heavy (previously called Molub-Alloy 936 SF Heavy) is an open gear lubricant developed specifically for use on heavy duty equipment in mining and industrial service. Molub-Alloy OG 936 SF Heavy is compounded to give maximum protection to gears and slides on large draglines and shovels while minimising potential pollutants to the environment.

Application

This product is used extensively in mining, construction, onshore drilling operations and on offshore installations, facilitating effective lubrication and protection on:

• Rack and pinion jacking mechanisms
• Cantilever skidding systems
• Mooring winch open gearing and slides
• FPSO offloading systems
• Crane slew ring & pinion
• Exposed threads on penstock valves
• Heavy duty top dressing for the ultimate protection of wire ropes

Specifications / Approvals

• SD 4713 (CAT)

Advantages

• Formulated to address environmental concerns - it is free of solvents, lead, antimony and Barium
• Forms a tough durable film with a "cushioning" effect, even under extreme pressures and at very slow speeds
• The film resists erosion from rain or sleet, and resists peeling in dusty environments
• The film resists destruction by contaminating oils and greases migrating from nearby mechanisms

Technical specifications

• Density @ 20°C / 59°F kg/m³: 1002
• Consistency NLGI Grade: 0
• Worked Penetration (60 strokes @ 25°C / 77°F) 0.1 mm: 345-360
• Brookfield Viscosity cP: 144,000
• Base Oil Viscosity @ 40°C / 104°F mm²/s:  2030
• Base Oil Viscosity @ 100°C / 212°F mm²/s: 57
• Rust Test (distilled water): Pass
• Copper Corrosion (24 hrs,100°C / 212°F) Rating: 1b
• Volume: 18kg bucket
• Also available as: 400ml spray can, 55kg barrel, 190kg barrel
• GLIS number: 15A50F
• MSDS code: 468617
