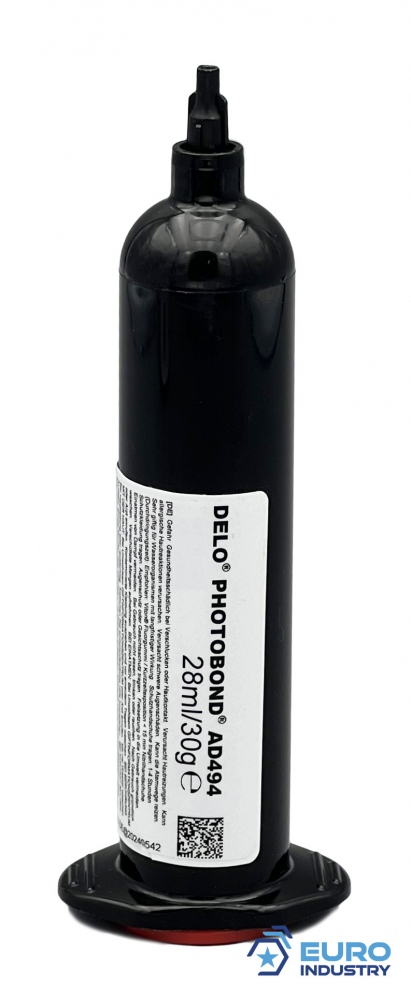

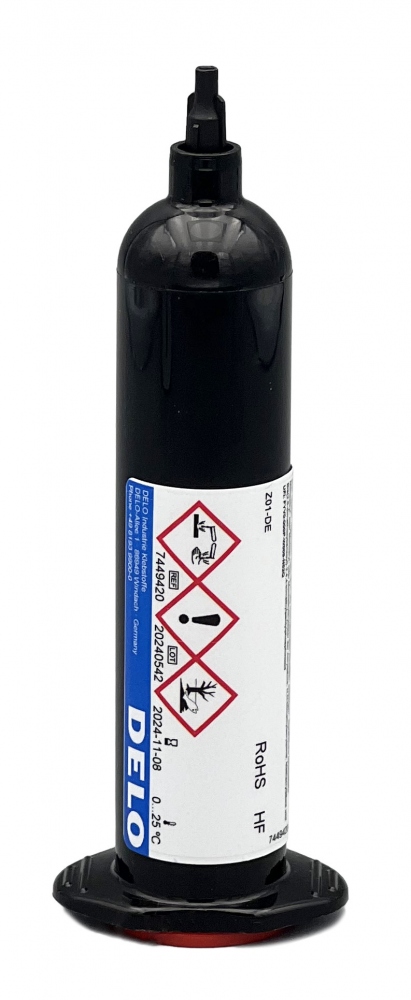

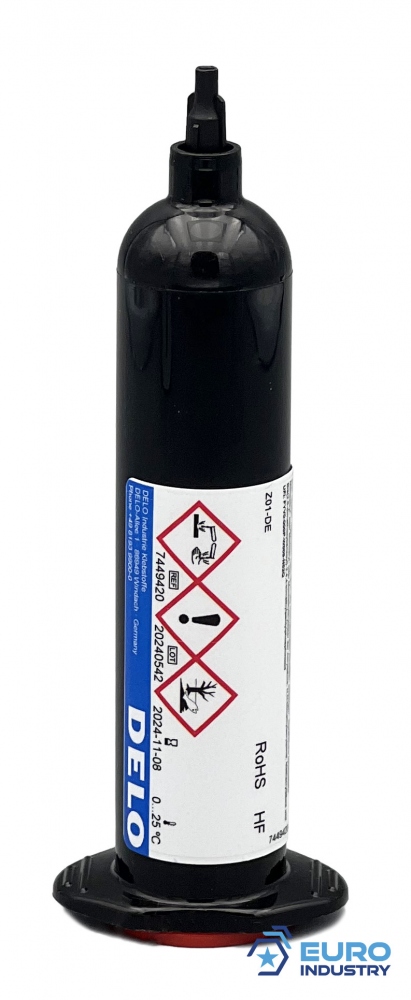

Delo-Photobond AD494 modified acrylate, UV-/VIS-curing 30g cartridge

DELO® PHOTOBOND® AD494 modified acrylate | 1C | UV- / VIS-curing
thixotropic, unfilled | tension-equalizing, peel-resistant

Base

• modified acrylate
• One-component, solvent-free

Use

• Specifically developed for interior visual bondings, e. g., bonding of prisms for beamers-   high transparency and permanent light fastness
• Very good  capillary properties
• Easy processing at room lighting is possible
• The cured product is normally used in a temperature range of -40 °C to +120 °C; depending onthe application, other limits may be more reasonable
• Compliant with RoHS directive 2015/863/EUProcessing
• The adhesive is supplied ready for use; in case of cool storage, it must be ensured that thecontainer is conditioned to room temperature before use
• The containers are conditioned at room temperature (+18 °C to +25 °C); the conditioning time isapprox. 0.5 h for containers up to 50 ml and approx. 4 h for containers up to 1,000 ml; additional heat addition is not allowed-   the adhesive can be applied by dispensing
• The surfaces to be bonded must be dry as well as free of dust, grease and other contaminations
• Dispensing valves and product-bearing elements must be carefully cleaned before use,residues of other products must be completely removed; DELOTHEN EP as well as acetone,isopropanol or a mixture of both are recommended to remove DELO-PHOTOBOND residues
• For further information please refer to our instructions for use DELO-PHOTOBOND and thebrochure “Light Curing”Curing
• Curing with UV light in a wavelength range from 320 to 400 nm. DELOLUX LED curing lampsare especially suitable as per the chart below. All standard DELOLUX HID discharge lamps arealso suitable-   increased intensities shorten the required irradiation time, lower intensities prolong it.
• Content 30g bottle

Technical specifications

• Tension-equalizing
• Suitable lamp types: LED 365 nm, LED 400 nm, UVA
• Color in uncured condition: yellowish
• Color in cured condition in 0.1 mm layer thickness colorless
• Color in cured condition in 1 mm layer thickness colorless
• Density 1.7 g/cm³
• Viscosity (Liquid | Viscosimeter): 3200 mPa·s
• Storage life in unopened original container (at 0 °C to +10 °C ): 6 months
