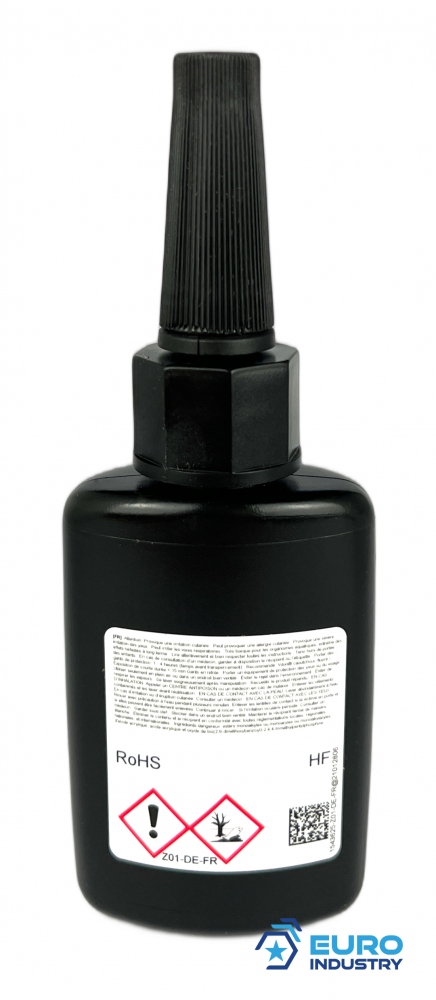

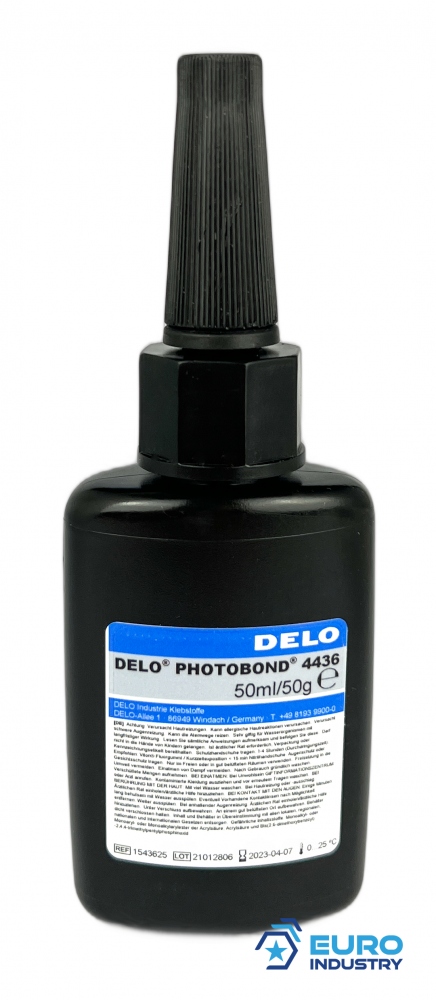

Delo-Photobond 4436 Acrylate Adhesive UV-curing solvent-free 50g

Delo-Photobond 4436 Acrylate Adhesive UV-curing solvent-free 50g

pics/DELO/photobond/delo-photobond-4436-uv-curing-acrylate-adhesive-tension-equalizing-glue-bottle-50g-front-ol.jpg
  • pics/DELO/photobond/delo-photobond-4436-uv-curing-acrylate-adhesive-tension-equalizing-glue-bottle-50g-front-ol.jpg
  • pics/DELO/photobond/delo-photobond-4436-uv-curing-acrylate-adhesive-tension-equalizing-glue-bottle-50g-front-l.jpg
  • pics/DELO/photobond/delo-photobond-4436-uv-curing-acrylate-adhesive-tension-equalizing-glue-bottle-50g-back-l.jpg
  • pics/DELO/delo-logo.png

374.55 74.91 incl. VAT (62.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 5 pieces

Manufacturer: DELO

Country of origin: DE/0004

Customs tariff number: 35061000

Weight per piece: 80 g

Please give the recipient email address, as well as your name and email address.

Recipient
Sender

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )

DELO-PHOTOBOND 4436 is a light-curing, 1-component acrylate adhesive. It cures very quickly under UV and visible light, is solvent-free, tension-equalizing and suitable for glass, plastics and metals.

Applications
  • Bonding of glass, plastics and metals
  • Optical and transparent applications
  • Industrial series production with short cycle times
Features
  • Light-curing (UV/VIS), one-component
  • Solvent-free, tension-equalizing
  • Very good transparency in layer thicknesses 0.1–1 mm
  • RoHS compliant (2015/863/EU)
Technical Data
Physical Properties
Colour (uncured)Colourless
TransparencyTransparent
Density1.0 g/cm³
Viscosity (23 °C)approx. 350 mPa·s
Pack sizes50 g bottle, 1 kg bottle
Shelf life12 months (0–25 °C, unopened)
Mechanical Properties (after 60 mW/cm² / 60 s)
Shear strength glass/Al17 MPa
Shear strength glass/glass18 MPa
Shear strength glass/PC8 MPa
Shear strength PC/PC10 MPa
Shear strength PMMA/PMMA4 MPa
Tensile strength12 MPa
Elongation at break250 %
Modulus of elasticity35 MPa
Shore hardness A / D83 / 38
Water absorption (24 h, 23 °C)0.9 wt.-%
Thermal Properties
Service temperature range–40 °C to +120 °C
Curing
Lamp typesLED 365 nm, LED 400 nm, UVA
Typical exposure time7–8 s (200 mW/cm² LED 400 nm or 55–60 mW/cm² UVA)
Application Notes
  • Dependent on layer thickness, lamp type and distance
  • Exposure intensity and time influence strength and properties
  • Optimum curing with DELOLUX lamp systems
Storage & Shelf Life
  • Store cool, dry and in the closed original bottle
  • Unopened: 12 months at 0–25 °C

Hazard Information (CLP)

Signal word: Warning
Hazard statements (H-phrases)
  • H315: Causes skin irritation.
  • H317: May cause an allergic skin reaction.
  • H319: Causes serious eye irritation.
  • H335: May cause respiratory irritation.
  • H400: Very toxic to aquatic life.
  • H410: Very toxic to aquatic life with long lasting effects.
Precautionary statements (P-phrases)
Prevention:
  • P261: Avoid breathing vapours/aerosol.
  • P273: Avoid release to the environment.
  • P280: Wear protective gloves/eye protection.
Response:
  • P302+P352: IF ON SKIN: Wash with plenty of water.
  • P305+P351+P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do – continue rinsing.
Storage:
  • P403+P233: Store in a well-ventilated place. Keep container tightly closed.
Disposal:
  • P501: Dispose of contents/container in accordance with local regulations.


Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,



Information on product safety (Manufacturer, Contact)

DELO Industrie Klebstoffe GmbH & Co. KGaA, DELO-Allee 1, 86949 Windach, GERMANY, +49 8193 9900-0, [email protected], www.delo.de

Property GTIN/EAN MPN (Manufacturer Part Number)
- - 100129791
