Weicon Copper Paste KP 1000 for high temperatures up to 1100 °C - 1kg

Weicon Copper Paste KP 1000 for high temperatures up to 1100 °C - 1kg

pics/Weicon/KP 1000 Copper paste/weicon-kp-1000-copper-paste-anti-seize-assembly-lubricant-1kg-can-01.jpg
  • pics/Weicon/KP 1000 Copper paste/weicon-kp-1000-copper-paste-anti-seize-assembly-lubricant-1kg-can-01.jpg
  • pics/Weicon/KP 1000 Copper paste/weicon-kp-1000-copper-paste-anti-seize-assembly-lubricant-1kg-can-02.jpg
  • pics/Weicon/KP 1000 Copper paste/weicon-kp-1000-copper-paste-anti-seize-assembly-lubricant-1kg-can-03.jpg
  • pics/Weicon/weicon-logo.jpg

47.54 47.54 incl. VAT (39.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

Manufacturer: Weicon

Country of origin: DE/0004

Customs tariff number: 27101999

Weight per piece: 1.1 kg

Please give the recipient email address, as well as your name and email address.

Recipient
Sender

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )

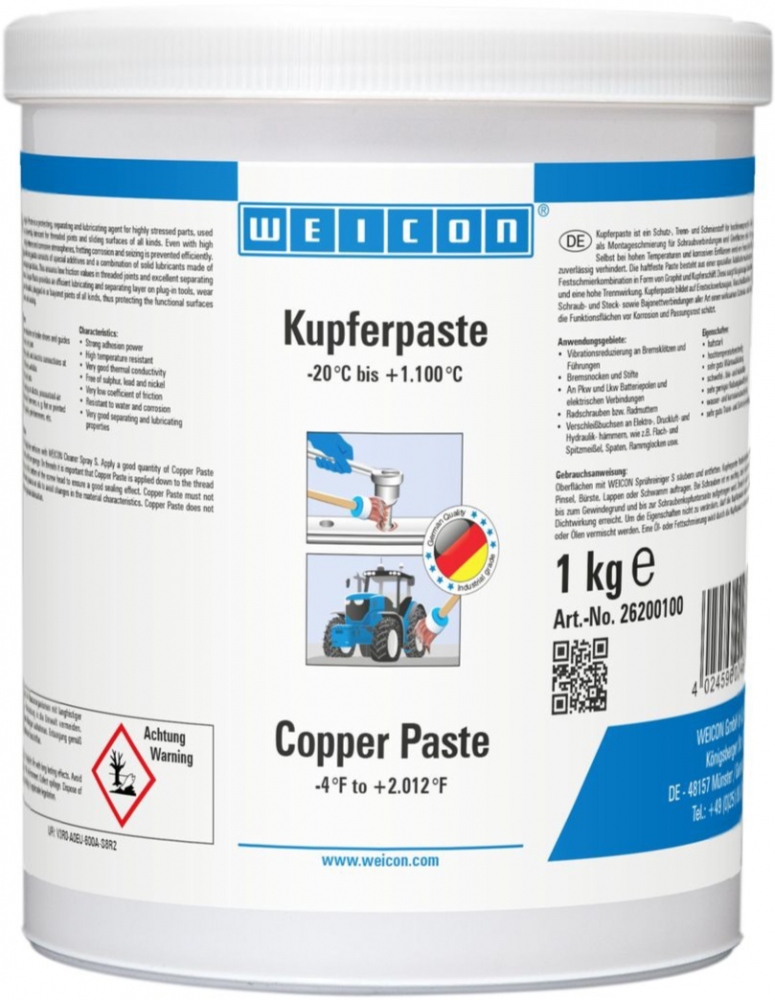

WEICON KP 1000 Copper Paste
  • Protection, release, and lubricant for highly stressed parts at high temperatures
  • High-temperature and corrosion resistant
  • Strong adhesion
  • Sulphur, lead, and nickel-free
  • Temperature resistance: -20 °C to 1100 °C
  • Pack size: 1 kg can
  • Available sizes: 30 g, 120 g, 0.4 kg, 0.45 kg, 0.5 kg, 85 g, 10 kg
Surface pre-treatment
  • To achieve optimum results, the mounting parts should be degreased and cleaned, e.g. with WEICON Surface Cleaner (roughen the surfaces, if required).
  • For used screws, treat with a wire brush and clean with WEICON Cleaner S.
  • WEICON Copper Paste can also be used on uncleaned surfaces, e.g. screws as delivered. However, the cleaner the surface, the better the results achieved.
Processing
  • Clean and degrease surfaces with WEICON Spray Cleaner S.
  • Apply Copper Paste evenly with a brush, cloth, or sponge.
  • For screws, it is important that the Copper Paste is applied down to the thread root and under the screw head to ensure a good sealing effect.
  • To avoid altering the properties, Copper Paste must not be mixed with greases or oils.
  • Copper Paste does not replace oil or grease lubrication.
Storage
  • Keep tightly closed in original packaging.
  • Do not store together with oxidizing agents.
  • Keep container tightly closed and store in a cool, well-ventilated place.
  • Shelf life: 24 months
Instructions for use
  • When using WEICON products, the physical, safety-related, toxicological and ecological data and regulations in our EC safety data sheets (www.weicon.com) must be observed.
Technical specification
Consistency classification (DIN 51818)NLGI-Class 1
BaseMineral oil
Solid lubricantCopper powder/Graphite
Density (DIN 51757)1.1 g/cm³
Silicone-freeyes
VKA-Test Good Load (DIN 51350)ON
VKA-Test Weld Load (DIN 51350)3,200 N
VKA-Test Calotte Value (DIN 51350, 1Min/1000N)0 mm
Worked Penetration (DIN ISO 2137)310-340 1/10 mm
Heat Capacity (DIN EN ISO 22007-4)1.713 J/(g-K)
Thermal Conductivity0.392 W/m-K
Dielectric Strength (DIN EN 60243-1 (20°C))1.7 kV/mm
Drop Point (IP 396)+180 °C
Base Oil Viscosity (40°C) (DIN 51562)180 mm²/s
Thermal Diffusivity0.208 mm³/s
Temperature resistance-20 °C to 1.100 °C
Shelf life24 months
ThickenerAlu-Complex-Soap
Friction values
Friction values plain steel (M10 10.9)
Total friction coefficient0.13 (min. 0.11)
Thread friction coefficient0.14 (min. 0.13)
Head friction coefficient0.12 (min. 0.10)
Friction values V4A (M10 | A4 70)
Total friction coefficient0.16 (min. 0.13)
Thread friction coefficient0.16 (min. 0.12)
Head friction coefficient0.16 (min. 0.13)
Friction values galvanized steel (M10 | 10.9)
Total friction coefficient0.10 (min. 0.09)
Thread friction coefficient0.11 (min. 0.10)
Head friction coefficient0.09 (min. 0.08)
Approvals / GuidelinesIMPA-Code: 450888/89/90/91/92

Hazard Information (CLP)

Signal word: Warning
Hazard Statements (H-phrases)
  • H410: Very toxic to aquatic life with long lasting effects.
Precautionary Statements (P-phrases)
Response:
  • P391: Collect spillage.
Storage:
  • Not applicable.
Disposal:
  • P501: Dispose of contents/container in accordance with local regulations.
Prevention:
  • P273: Avoid release to the environment.
Additional Labelling (EUH-phrases)
  • Not applicable.
Other Relevant Information
  • Annex XVII – Restrictions on the manufacture, placing on the market and use of certain dangerous substances: Not applicable.



Information on product safety (Manufacturer, Contact)

WEICON GmbH & Co. KG, Königsberger Strasse 255, 48157 Münster, GERMANY, +49 251 9322-0, [email protected], www.weicon.de

Property GTIN/EAN MPN (Manufacturer Part Number)
- 4024596024864 10013761
