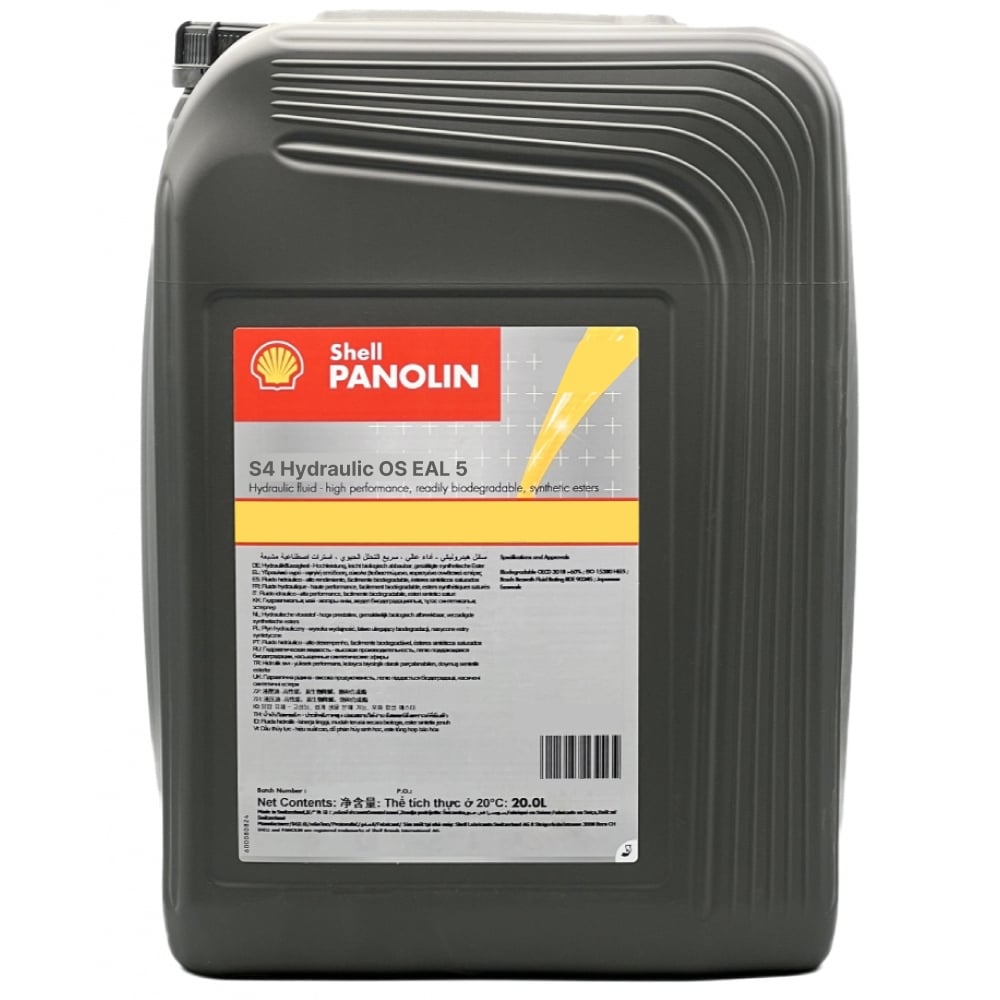

Shell PANOLIN S4 Hydraulic OS EAL 5 Biodegradable hydraulic oil 20L

Shell PANOLIN S4 Hydraulic OS EAL 5 Biodegradable hydraulic oil 20L

€ 333.14 333.14 incl. VAT (279.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Shell Panolin

Country of origin: CH/0039

Customs tariff number: 27101999

Weight per piece: 20.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

seven - nine = ?

( Examples: two + three = 5, three - five = -2 )

FUCHS RENOLIT PU-FH 300 is high temperature heavy-duty grease (Polyurea, NLGI 2) based on mineral oil for demanding lubrication points operating under temperature and load. It is characterised by high temperature properties, load-carrying capacity, water resistance, corrosion protection and resistance to acids and alkalis.

Pack size: 5 kg bucket
Also available in: 400 g, cartridge, 500 gscrew cartridge, 18 kgbucket, 180 kg drum

Applications

Machinery and equipment for the mining, cement and asphalt industries
Pellet presses
Multipurpose grease for temperature and loaded lubrication points
Rolling and plain bearings in a wide temperature range
Fan bearings
Blower and compressor bearings
Rolling bearings in electric machines
Bearings in continuous casting plants and asphalt pavers

Specifications and approvals

DIN 51502 KP 2 R-20
DIN 51818 NLGI 2

Characteristics

Very good corrosion protection
Very good load-carrying capacity (EP)
Excellent water resistance
Very good high temperature properties
Very good ageing resistance
Good plastic and elastomer compatibility
Good pumpability in central lubrication systems
Resistance to acids and alkalis

Technical specification

DIN classification	KP 2 R-20
Thickener type	Polyurea
Base oil	Mineral oil
Base oil viscosity at 40 °C	500 mm²/s
Base oil viscosity at 100 °C	32.5 mm²/s
Colour	Light brown
NLGI grade	2
Dropping point	≥ 230 °C
Worked penetration WP60	265-295 1/10 mm
Resistance to water, 90 °C	1
Corrosion protection properties SKF-Emcor, distilled water	0-0
Copper corrosion at 100 °C	1
Oil separation 40 °C, 18 h	≤ 1 %
Oil separation 40 °C, 7 d	≤ 2 %
Four ball welding load	~ 2600 N
Flow pressure at 20 °C	≤ 100 hPa
Flow pressure at -20 °C	≤ 1400 hPa
Temperature range	-20 / +180 °C

Product description

RENOLIT PU-FH 300 is a high temperature heavy-duty grease based on a polyurea thickener and mineral oil. It is characterised by high temperature properties, load-carrying capacity, water resistance, corrosion protection and resistance to acids and alkalis. The operating temperature range of RENOLIT PU-FH 300 is -20 to +180 °C.

Storage conditions

The minimum shelf life is 36 months if the product is properly stored between 0 °C and 40 °C in its unopened original container in a dry place. The indication of a minimum shelf life does not include any guarantee of durability.

Notes

Safety and disposal instructions can be found in the current safety data sheet. The pumpability of RENOLIT PU-FH 300 in centralised lubrication systems should be checked with the system manufacturer. Plastics and elastomers should be tested in practice for their compatibility with RENOLIT PU-FH 300 before serial use due to the large number of different materials.

FUCHS RENOLIT PUFH 300, FUCHS RENOLIT PU-FH300, FUCHS RENOLIT PU FH 300

Information on product safety (Manufacturer, Contact)

Shell Deutschland GmbH, New-Orleans-Straße 4, 20457 Hamburg, Deutschland, +49 (0) 40 6324 - 0, [email protected], www.shell.com

shell-panolin-s4-hydraulic-os-eal-5-tds-datasheet.pdf (1.29 MB)
