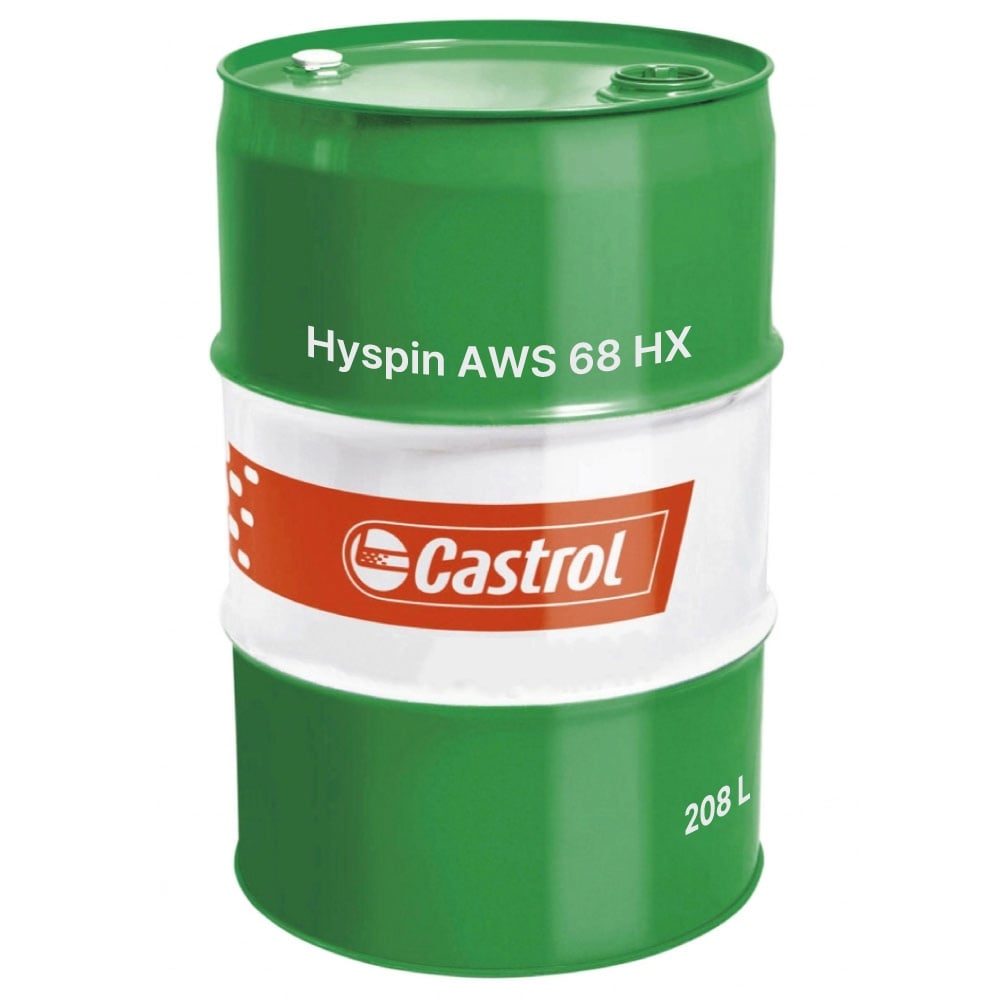

Castrol Hyspin AWS 68 HX Anti-wear hydraulic oil HLP 208L
€ 1020.96 1,020.96 incl. VAT (857.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Castrol
Country of origin: BE/0017
Customs tariff number: 27101983
Weight per piece: 208.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Castrol Hyspin AWS 68 HX is an anti-wear hydraulic oil (ISO VG 68) based on highly refined mineral oil enhanced with a stabilised zinc additive system.
- Pack size: 208 L drum
- Also available in: 20 L canister
Applications
- Industrial hydraulic systems requiring anti-wear protection
- Systems such as lightly loaded gears, variable speed units and bearings
- Corrosion protection for ferrous and yellow metal components found within a hydraulic system
- Compatible with commonly used nitrile, silicone and fluropolymer seal materials
Specifications & Approvals
- DIN 51502 classification: HLP
- ISO 6743/4: Hydraulic Oils Type HM
- Approved by Bosch Rexroth Fluid Rating List RDE 90245
- Approved by Parker Hannifin (Denison): HF0, HF1 & HF2
- Approved by Eaton: E-FDGN-TB002-E
- Approved by Eaton: Brochure 03-401-2010
- Meets DIN 51524 Part 2
- Meets Fives Cincinnati P68, P69 & P70
- Meets ASTM D6158 HM (2005)
- Meets ISO 11158 HM
- Meets US Steel 126
Characteristics
- Good thermal and oxidative stability helps reduce deposit formation, resulting in a cleaner system and potentially extending machinery operating life
- Excellent anti-wear performance increases wear protection and can help reduce downtime caused by unscheduled maintenance
- Good filterability characteristics, including in the presence of water, supports increased filter life and reduced maintenance
- Excellent water separation and hydrolytic stability increases equipment reliability, helping to prolong lubricant life and reduce downtime
Technical specifications
| Appearance (Visual) | Clear & Bright |
| Density @ 15°C / 59°F, kg/m³ (ISO 12185 / ASTM D4052) | 881 |
| Kinematic Viscosity @ 40°C / 104°F, mm²/s (ISO 3104 / ASTM D445) | 68 |
| Kinematic Viscosity @ 100°C / 212°F, mm²/s (ISO 3104 / ASTM D445) | 9.2 |
| Viscosity Index (ISO 2909 / ASTM D2270) | 111 |
| Pour Point, °C/°F (ISO 3016 / ASTM D97) | -33/-27 |
| Foam Sequence I tendency / stability, ml/ml (ISO 6247 / ASTM D892) | 10/0 |
| Flash Point - open cup method, °C/°F (ISO 2592 / ASTM D92) | 242/468 |
| Flash Point - closed cup method, °C/°F (ISO 2719 / ASTM D93) | 230/446 |
| Water Separation @ 54°C / 129°F (40/37/3), minutes (ISO 6614 / ASTM D1401) | 15 |
| Air Release @ 50°C / 122°F, minutes (ISO 9120 / ASTM D3427) | 8 |
| Rust test - distilled water (24 hrs) (ISO 7120 / ASTM D665A) | Pass |
| Rust test - synthetic seawater (24 hrs) (ISO 7120 / ASTM D665B) | Pass |
| FZG Gear Scuffing test - A/8.3/90, Failure Load Stage (ISO 14635-1) | 12 |
Product description
Hyspin AWS...HX has been specially formulated to provide good anti-wear and thermal stability performance using proven additive technology. The careful blend of additives with a high quality base stock ensures excellent hydrolytic and oxidative stability while exhibiting a minimal tendency to produce sludge and deposits. In addition, Hyspin AWS provides corrosion protection to ferrous and yellow metal components found within a hydraulic system.
BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 15DEB2 |
