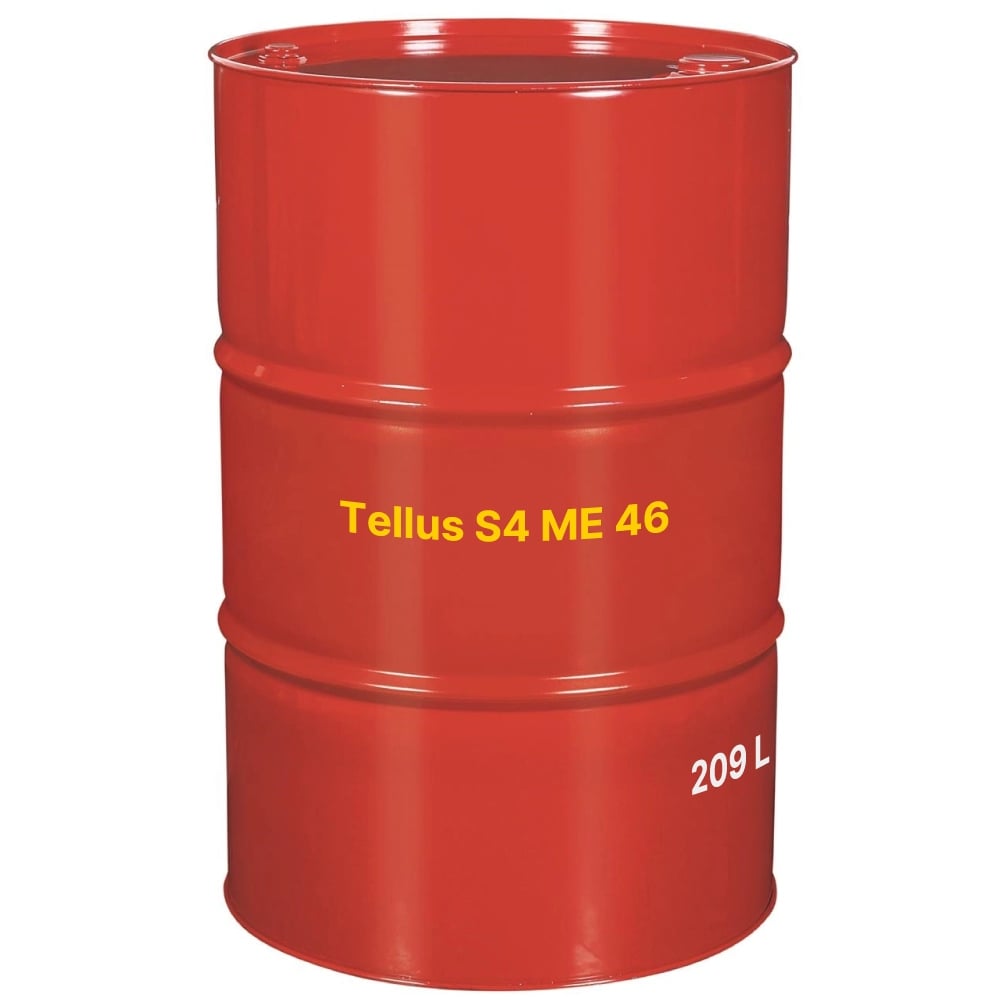

Shell Tellus S4 ME 46 Synthetic hydraulic oil ISO VG 46, 209L drum

Shell Tellus S4 ME 46 (previous name: Shell Tellus EE) is an advanced synthetic industrial hydraulic fluid (ISO VG 46) designed to help improve the energy efficiency of hydraulic systems without compromising protection.

• Pack size: 209 L drum
• Also available in: 20 L canister

Applications

• Industrial hydraulic systems, particularly systems with high intensity of hydraulic power usage such as injection moulding and high pressure metal pressing operations
• Applications where resistance to high temperatures or long oil life is required
• Mobile hydraulic systems
• Suitable for use in certain mobile hydraulic fluid power transmission systems and in marine applications, providing superior low temperature fluidity compared to most conventional ISO HM type fluids

Specifications & Approvals

• Denison Hydraulics (HF-0, HF-1, HF-2)
• Fives Cincinnati P-70 (ISO 46)
• Eaton Vickers (Brochure 694)
• Bosch Rexroth RD 90220-01 (2011), ISO 32-68
• Arburg (Injection moulding applications)
• ASTM D6158 (HM fluids)
• ISO 11158 (HM fluids)
• DIN 51524 Part 2 HLP type
• Swedish Standard SS 15 54 34 AM
• Krauss Maffei

Characteristics

• Designed to improve the energy efficiency of hydraulic systems through a specially developed formulation balancing flow, frictional and power transmission characteristics
• Field evaluations have shown typical energy savings of 1-4% (actual savings may vary depending on application, oil used, maintenance procedures, condition of equipment and operating conditions)
• Outstanding performance in hydraulic pump wear and resistance to breakdown in contact with water or other contaminants
• Oil life exceeds the 10,000 hours maximum duration measurable in the Turbine Oil Stability Test (TOST), enabling significantly extended oil change intervals and reduced maintenance costs
• Up to 68% less wear in the Vickers V104C pump wear test than the 50 mg pass/fail limits for many OEMs
• Superior cleanliness meeting ISO 4406 21/19/16 class or better at Shell filling plants and outstanding protection against sludge build up, valve sticking and corrosion
• Reduced environmental impact in case of leakage or accidental spillage compared to conventional zinc-based hydraulic fluids through the use of ashless anti-wear technology and low sulphur base oils

Technical specifications

Product description

Shell Tellus S4 ME has been demonstrated to improve energy efficiency in a wide range of applications such as plastic injection moulding, metal pressing, and mining conveyors. It is also designed to help extend equipment service life and lower maintenance costs through outstanding wear protection and long oil life capability.

Hazard statements (CLP/GHS)

Signal word: No signal word

Hazard statements (H-phrases)

• H411: Toxic to aquatic life with long lasting effects.

Precautionary statements (P-phrases)

Prevention:

• P273: Avoid release to the environment.

Response:

• P391: Collect spillage.

Disposal:

• P501: Dispose of contents/container to an approved waste disposal plant.
