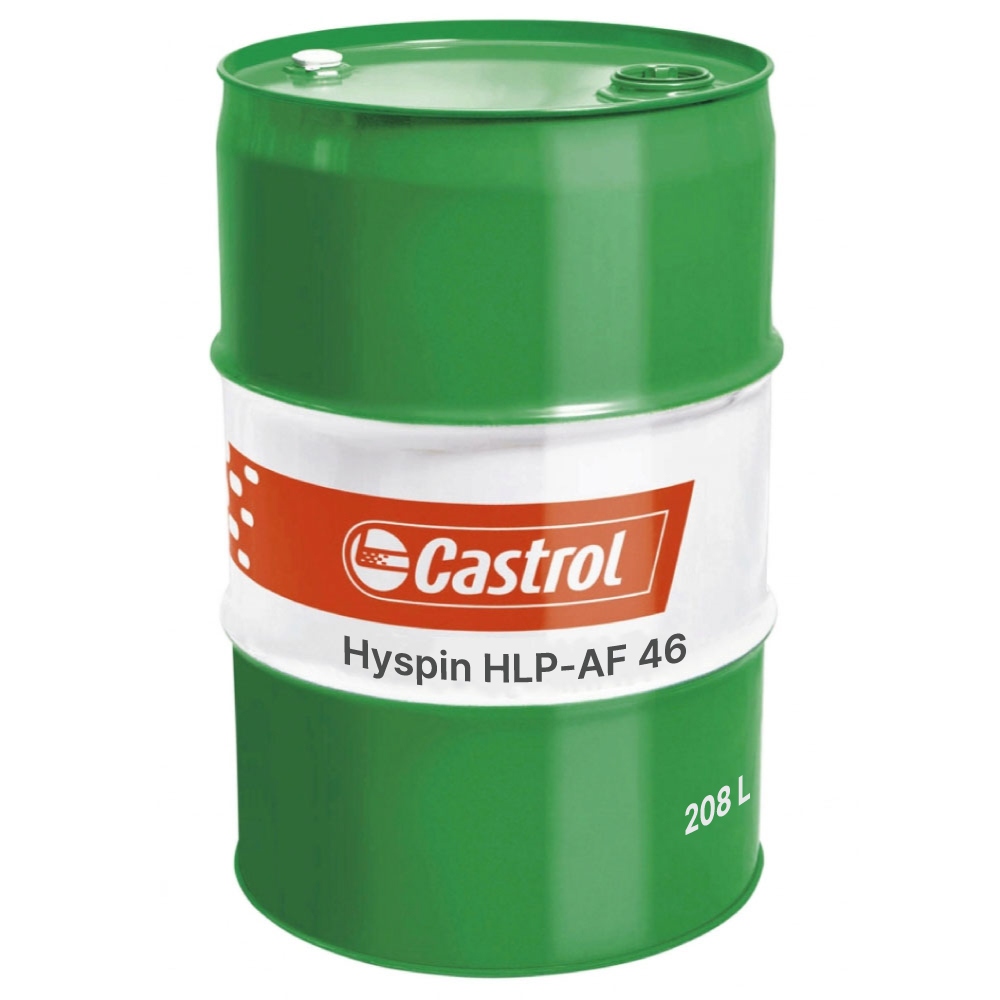

Castrol Hyspin HLP-AF 46 Anti-wear hydraulic oil ISO VG 46, 208L drum
€ 713.94 713.94 incl. VAT (599.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Castrol
Country of origin: DE/0004
Customs tariff number: 27101983
Weight per piece: 208.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Castrol Hyspin™ HLP-AF 46 hydraulic oil is a mineral hydraulic fluid formulated without zinc containing additives. The oil has been formulated to provide a very high level of performance in terms of rust and oxidation protection as well as good anti-wear performance.
- Pack size: 208L drum
- Also available in: 20L canister
Applications
- Hyspin HLP-AF 46 is primarily intended for use in hydraulic equipment, but is also suitable for other duties in which lubricants with good oxidation stability and lubrication performance are required.
- The oil is particularly suitable for use in systems containing brass or bronze components where traditional zinc containing lubricants may not be suitable.
- The quality of the base oils and additives permit the application of Hyspin HLP-AF 46 in lightly loaded gears and as a circulating oil in applications where an oil with rust and oxidation inhibition is required. Hyspin HLP-AF 46 is fully compatible with elastomer materials commonly used for static and dynamic seals, such as nitrile, silicone and fluorinated (e.g. Viton) polymers.
Features
- Good anti-wear performance which can reduce wear to a minimum and therefore extend the life of hydraulic components.
- Good thermal and oxidative stability. Oxidative stability reduces deposit formation, resulting in a cleaner system.
- Excellent protection against corrosion.
- Very good filterability even when contaminated with small quantities of water, which can save money through increased filter life.
- High degree of water separation and hydrolytic stability.
- Good anti-foam characteristics and resistance to aeration.
- Fully compatible with most common seal materials.
Technical specifications
| GLISS no. | 16081F |
| ISO Viscosity Grade | 46 |
| Density @ 15°C / 59°F, kg/m³ | 879 |
| Kinematic Viscosity @ 40°C / 104°F, mm²/s | 46.7 |
| Kinematic Viscosity @ 100°C / 212°F, mm²/s | 6.9 |
| Viscosity Index | 104 |
| Pour Point, °C / °F | -27 / -17 |
| Flash Point - open cup method, °C / °F | 226 / 439 |
| Foam Sequence I - tendency / stability, ml/ml | 0/0 |
| Water Separation @ 54°C / 129°F (40/37/3), min | 10 |
| Air Release @ 50°C / 122°F, min | 5 |
| Rust test - distilled water (24 hrs), Rating | Pass |
| FZG Gear Scuffing test - A/8.3/90, Failure Load Stage | 10 |
Product information
Castrol Hyspin HLP-AF 46 hydraulic oil is a zinc-free, ash-free hydraulic fluid based on a highly refined mineral oil. It is formulated to provide a high level of performance in terms of rust and oxidation protection, as well as good anti-wear performance. The quality of the base oil and additives allows the use of Hyspin HLP-AF 46 in lightly loaded gears and as a circulating oil in applications that require an oil with rust and oxidation protection. Hyspin HLP-AF 46 is fully compatible with elastomer materials commonly used for static and dynamic seals, such as nitrile, silicone and fluorinated (e.g. Viton) polymers.
Hyspin HLP-AF-46, Hyspin HLP-AF46
BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4008177193156 | 16081F |
