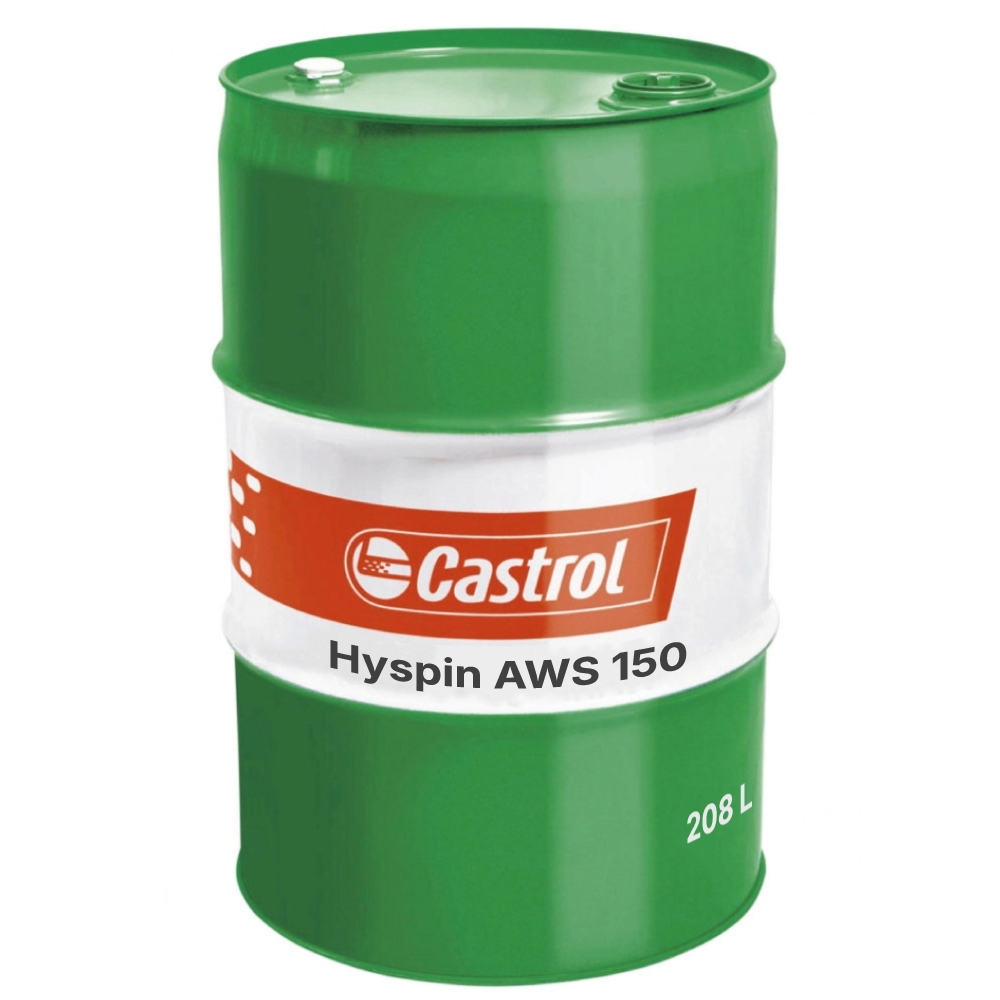

Castrol Hyspin AWS 150 Anti-wear Hydraulic Oil HLP - 208L drum

Castrol Hyspin AWS 150 High-performance hydraulic oils are based upon highly refined mineral oil enhanced with a stabilized zinc additive system. Ideal for hydraulic systems with increased wear protection requirements.

• Pack size: 208 l drum
• Also available in: 20 l canister

Application

• For use in industrial hydraulic systems which require antiwear protection
• Lightly loaded gears, variable speed units and bearings
• Compatible with the most commonly used nitrile, silicone and fluropolymer seal materials.

Specifications / Approvals

• DIN 51524-2 - Requirements for HLP hydraulic oils
• ISO 6743/4 Requirements for HM hydraulic oils

Advantages

• Good thermal and oxidative stability. Oxidative stability reduces deposit formation, resulting in a cleaner system. This can extend the machinery’s operating life.
• Excellent anti-wear performance increases wear protection, which can help reduce downtime caused by unscheduled maintenance.
• Good filterability characteristics, including in the presence of water, enables cost savings to be made from increased filter life and reduced maintenance.
• Excellent water separation and hydrolytic stability, measured by industry standard testing. This increases equipment reliability, helping to prolong the lubricant’s life and reduce downtime.

Technical specifications

• ISO Viscosity Grade: 150
• Density at 15°C: 890 kg/m3
• Viscosity at 40°C: 150
• Viscosity at 100°C: 14.5
• Flash Point - open cup method: 230°C
• Flash Point - closed cup method: 220°C
• Pour Point: -15°C
• GLIS number: 143AC4
• MSDS code: 456613

Description Hyspin AWS range

Hyspin AWS has been specially formulated to provide good anti-wear and thermal stability performance using proven additive technology. The careful blend of additives with a high quality base stock ensures that Hyspin AWS has excellent hydrolytic and oxidative stability while exhibiting a minimal tendency to produce sludge and deposits. In addition, Hyspin AWS provides corrosion protection to ferrous and yellow metal components found within a hydraulic system.

Hyspin AWS (for appropriate viscosity grade) is approved by:

• Parker Hannifin (Denison) HF0, HF1 & HF2
• Eaton E-FDGN-TB002-E

Hyspin AWS grades meet the requirements (for appropriate viscosity grade) of:

• DIN 51524 Part 2
• Fives Cincinnati P68, P69 & P70
• ASTM D6158 HM
• ISO 11158 HM
• US Steel 126
• GB 11118.1 L-HM (General and High Pressure)
