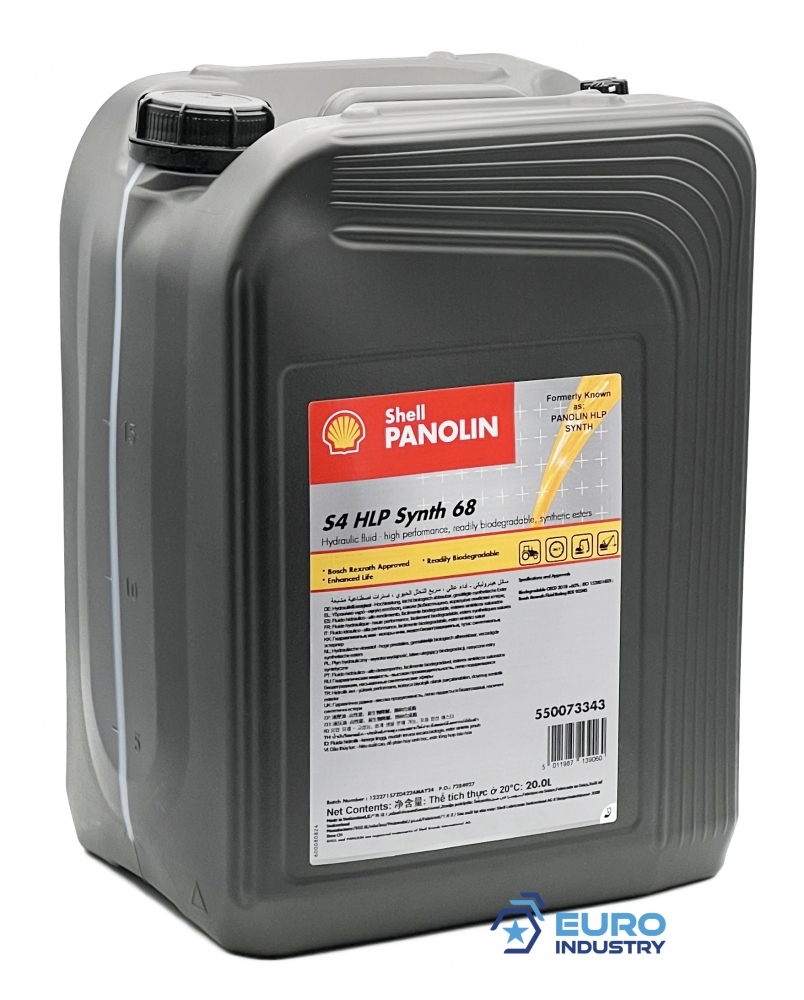

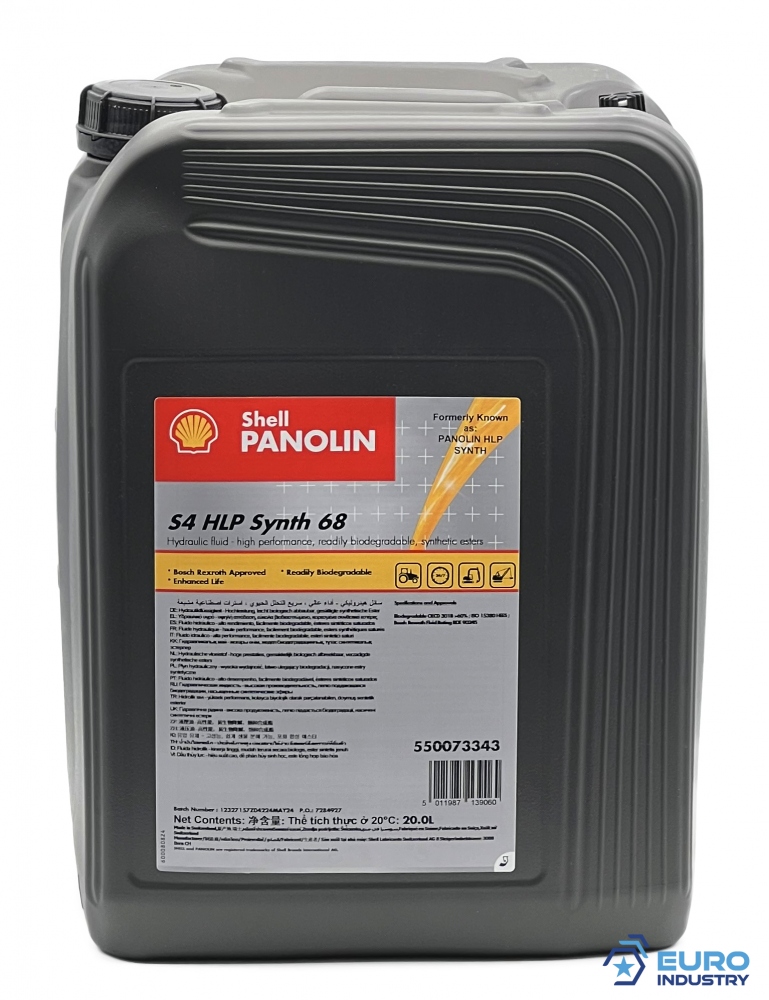

Shell Panolin S4 HLP Synth 68 Hydraulic oil biodegradable HEES 20L

Panolin HLP Synth 68 is a biodegradable hydraulic oil (ISO VG 68) that is fully synthetic, zinc-free, environmentally friendly and based on saturated esters. It is suitable for greatly extended oil change intervals (up to lifetime fillings). The product is mainly used as hydraulic oil in construction, forestry and industrial machinery as well as in steel/water construction.

Applications

• For stationary and mobile hydraulic systems including earthmoving and forestry hydraulic systems, the machine industry, construction and hydroelectric engineering.
• Compressors, bearing lubrication and oil circulation systems.
• Marine hydraulic systems including CPP, stabilisers, steering and deck equipment.
• Environmentally sensitive areas
• Do not mix with other readily biodegradable hydraulic fluids - please refer to Panolin conversion and operating guidelines regarding mineral oils, synthetic fluids and Panolin ECLs/EALs.

Specifications & Approvals

• ASTM D 943 (Dry TOST test) > 3'000 h
• ASTM D 2070 (modifi ed, 1'680 h)
• FZG Test A/8.3/90 loading stage 12
• ISO 15'380/HEES
• ÖNORM C 2'027, Part 5
• VDMA 24'568 HEES (synthetic esters insolube in water)
• Vickers 35 VQ–25, V104 C

Technical Data

• Viscosity: ISO VG 68
• Density g/cm3 15 °C: 0.918
• Viscosity in mm2/s 40 °C: 70.6
• Viscosity in mm2/s 100 °C: 11.3
• Flashpoint COC in °C: 240
• Pour point in °C" -55
